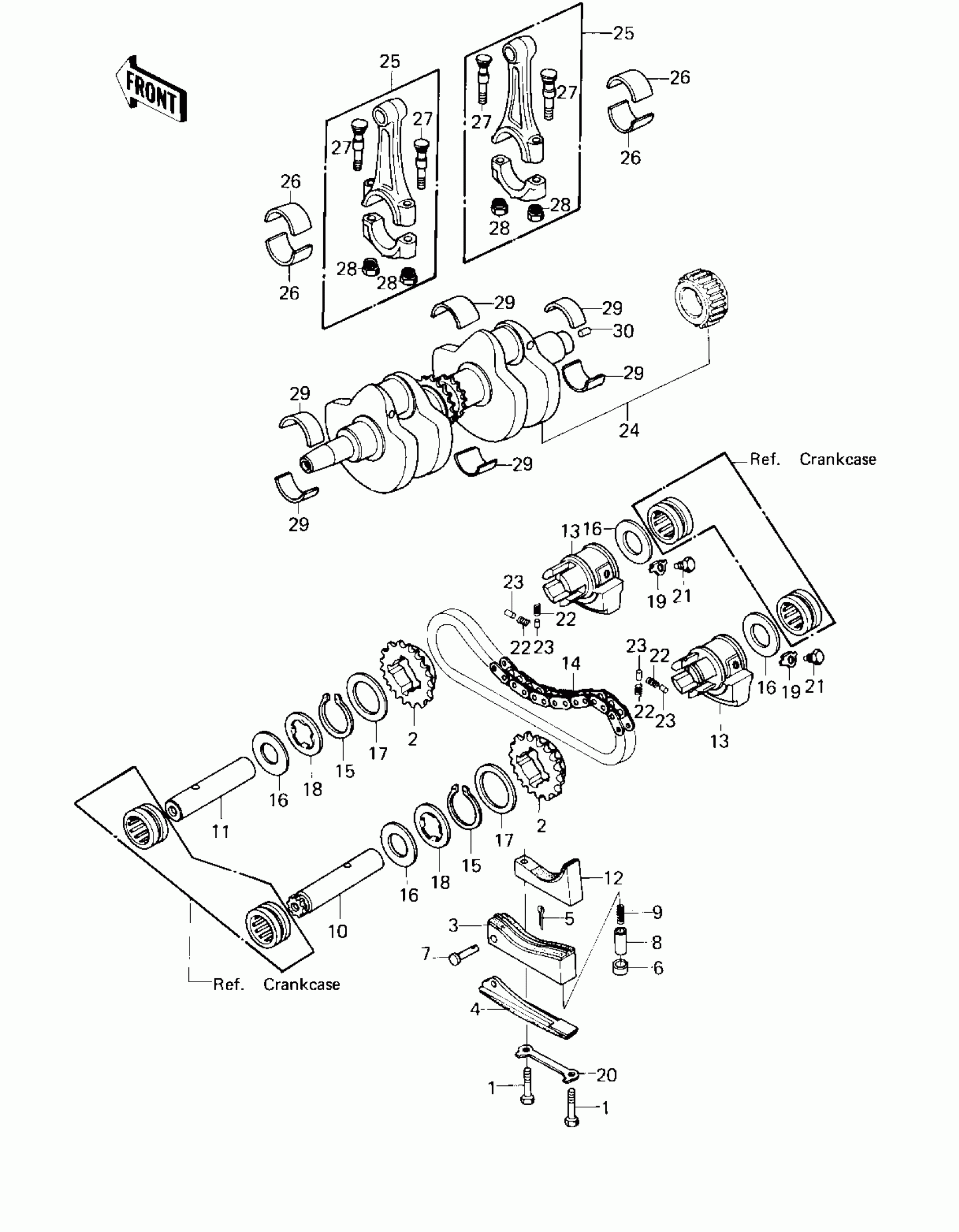

Kawasaki LTD II CRANKSHAFT/BALANCER Diagram

#

Description
Price

1

BOLT,6X55

110G0655

Unavailable

2

SPROCKET,BALANCER

12046-008

Unavailable

3

SLIPPER,CAM CHAIN

12053-013

Unavailable

4

SLIPPER,CAM CHAIN

12053-014

Unavailable

5

PIN-COTTER,1.6X15

550D1615

$1.80

6

BUSHING,SLIPPER

92028-185

Unavailable

7

PIN

92043-120

Unavailable

8

PIN,SLIPPER

92043-122

Unavailable

9

SPRING

92081-146

Unavailable

10

SHAFT BALANCER W-GEAR

12052-007

Unavailable

11

SHAFT,BALANCER

12052-008

Unavailable

12

SLIPPER,CAM CHAIN

12053-022

Unavailable

13

BALANCER

13041-005

Unavailable

14

CHAIN,BALANCER

21070-009

$278.61

15

CIRCLIP, 38MM

480J3800

$4.75

16

WASHER,PLAIN

92022-310

$2.85

17

WASHER,PLAIN

92022-316

$2.85

18

WASHER,LOCK

92024-071

$2.85

19

WASHER LOCK 10MM

92031-001

$8.71

20

WASHER,LOCK

92031-016

$3.12

21

PIN SELECT FORK GUIDE

92043-016

Unavailable

22

SPRING,BALANCER

92081-142

$2.86

23

PIN,DOWEL

92122-005

$2.56

24

CRANKSHAFT ASSY

13031-1005

Unavailable

25

ROD-CONNECTING

13032-051-MM

Unavailable

25

ROD-CONNECTING

13032-051-MM

Unavailable

25

ROD-CONNECTING

13032-051-MM

Unavailable

26

METAL,CON ROD BRG

13034-043

Unavailable

26

METAL,CON ROD BRG

13034-045

Unavailable

26

METAL,CON ROD BRG

13034-046

Unavailable

27

BOLT,CONNECTING ROD

92001-170

Unavailable

28

NUT,FLANGED,8MM

92015-1311

$5.61

29

METAL,CRANK BRG

13034-044

Unavailable

30

PIN-SPRING,4X8

555A0408

$2.99
