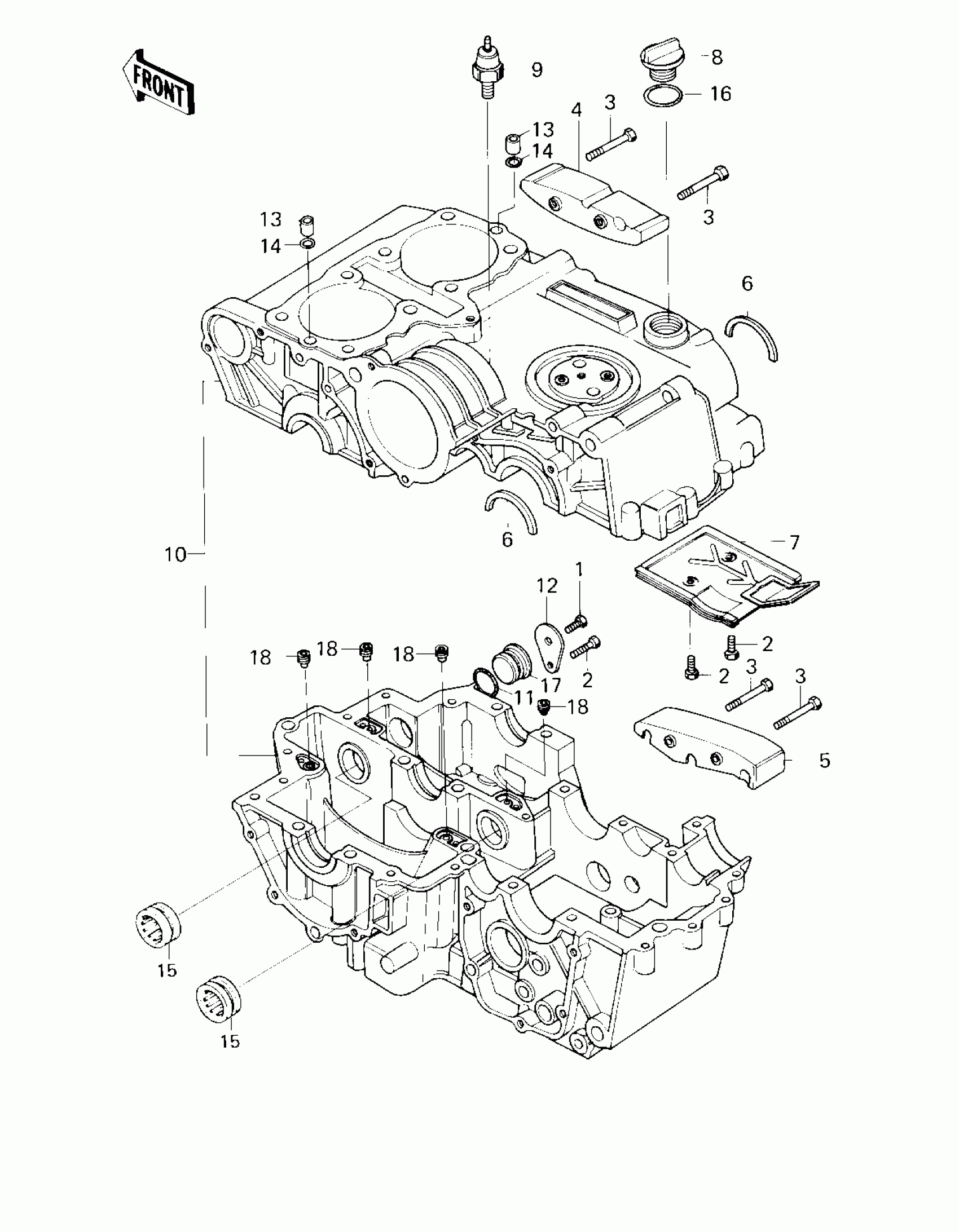

Kawasaki LTD II CRANKCASE Diagram

#

Description
Price

1

BOLT HEX HEAD 6X8

110B0608

Unavailable

2

BOLT-UPSET 6X14

112B0614

Unavailable

3

BOLT,FLANGED,8X35

92001-1577

Unavailable

4

SLIPPER,PRIMARY CHAIN

12053-020

Unavailable

5

SLIPPER,PRIMARY CHAIN

12053-021

Unavailable

6

RING-POSITION

14013-004

$7.76

7

PLATE,BREATHER

14068-008

$24.27

8

CAP-OIL FILLER

16115-013

$18.64

9

SWITCH,OIL PRESSURE

27010-1157

Unavailable

10

SET-CRANKCASE

14001-5092

Unavailable

11

"0" RING

670B3030

$7.12

12

SPACER

92026-115

$2.29

13

PIN,11X14X12.3

92043-1266

$0.86

14

"O" RING

92055-093

$16.95

15

BEARING,NEEDLE

92046-048

Unavailable

16

RING-O,31.5X2.6

92055-049

$3.29

17

PLUG

92066-049

$11.10

18

SCREW,SLOTTED

92013-007

$3.31
