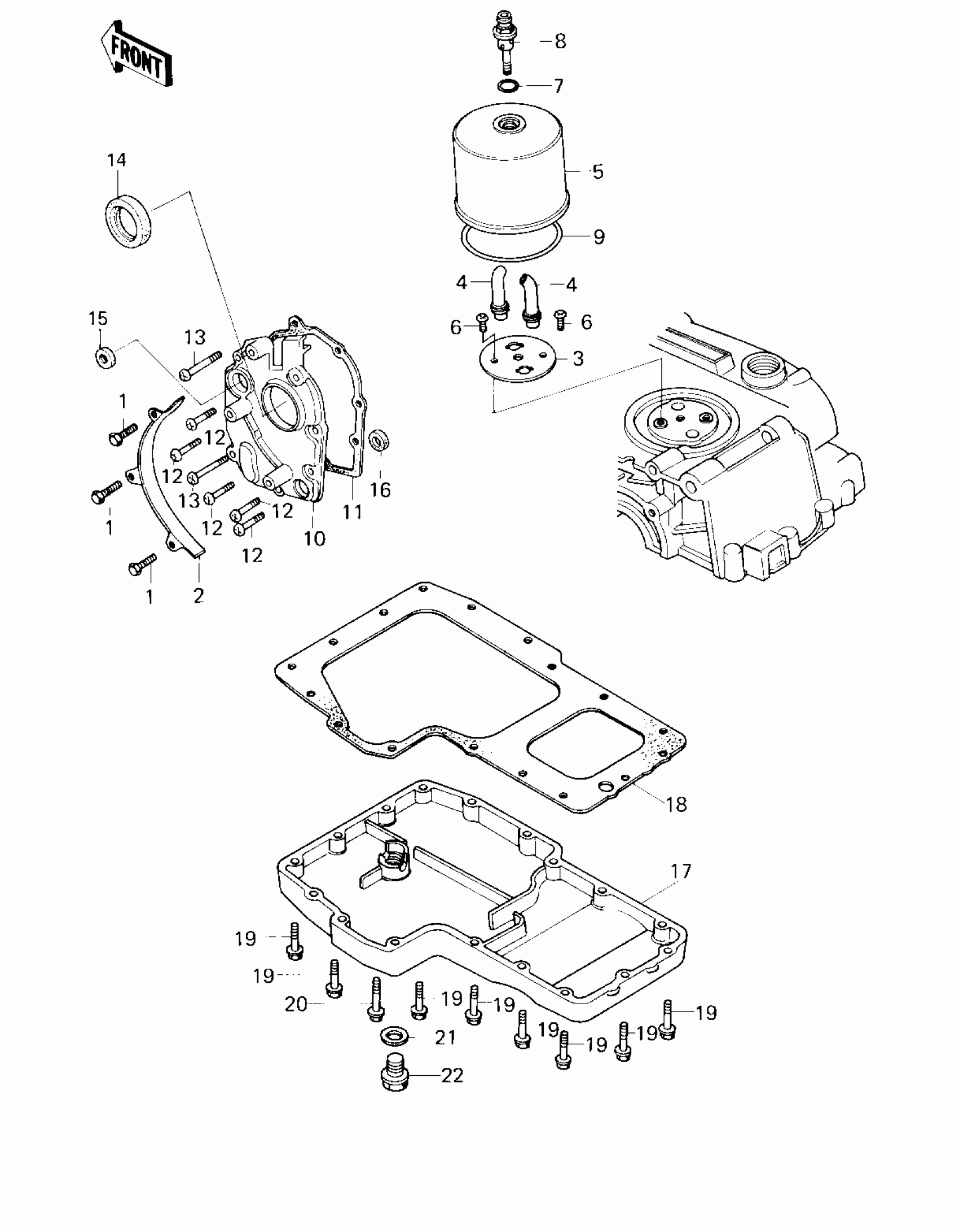

Kawasaki LTD II BREATHER COVER/OIL PAN Diagram

#

Description
Price

1

BOLT-UPSET 6X14

112B0614

Unavailable

2

GUIDE-CHAIN

12053-1006

$10.54

3

PLATE,BREATHER

14068-007

$9.25

4

TUBE,BREATHER

92059-140

Unavailable

5

BODY,BREATHER

14070-007

$46.80

6

SCREW PAN HEAD 6X18

220B0618

$2.79

7

O RING,16MM

670B2016

$1.04

8

BOLT,BREATHER FITTING

92003-098

$50.75

9

RING-O,91.6X3.4

92055-052

$7.52

10

COVER,MISSION

14024-011

Unavailable

11

GASKET,TRANSMISSION COVER

11060-1056

Unavailable

12

SCREW PAN HEAD 6X22

220B0622

Unavailable

13

SCREW PAN HEAD 6X40

220B0640

Unavailable

14

SEAL-OIL,SC325210

92050-024

$6.23

15

OIL SEAL,TC7187

92050-048

$24.03

16

SEAL-OIL,TB13225.5

92051-005

$5.91

17

PAN,OIL

16110-004

$118.71

18

GASKET,OIL PAN

16112-004

Unavailable

19

BOLT,FLANGED,6X25

130G0625

Unavailable

20

BOLT, HEX HEAD, 6X34

92003-159

Unavailable

21

GASKET,12X22X2

92065-097

$0.66

22

PLUG,OIL DRAIN,12X15

92066-1174

$4.64
