1980 Kawasaki LTD II Cylinder/pistons Diagram

← All diagrams

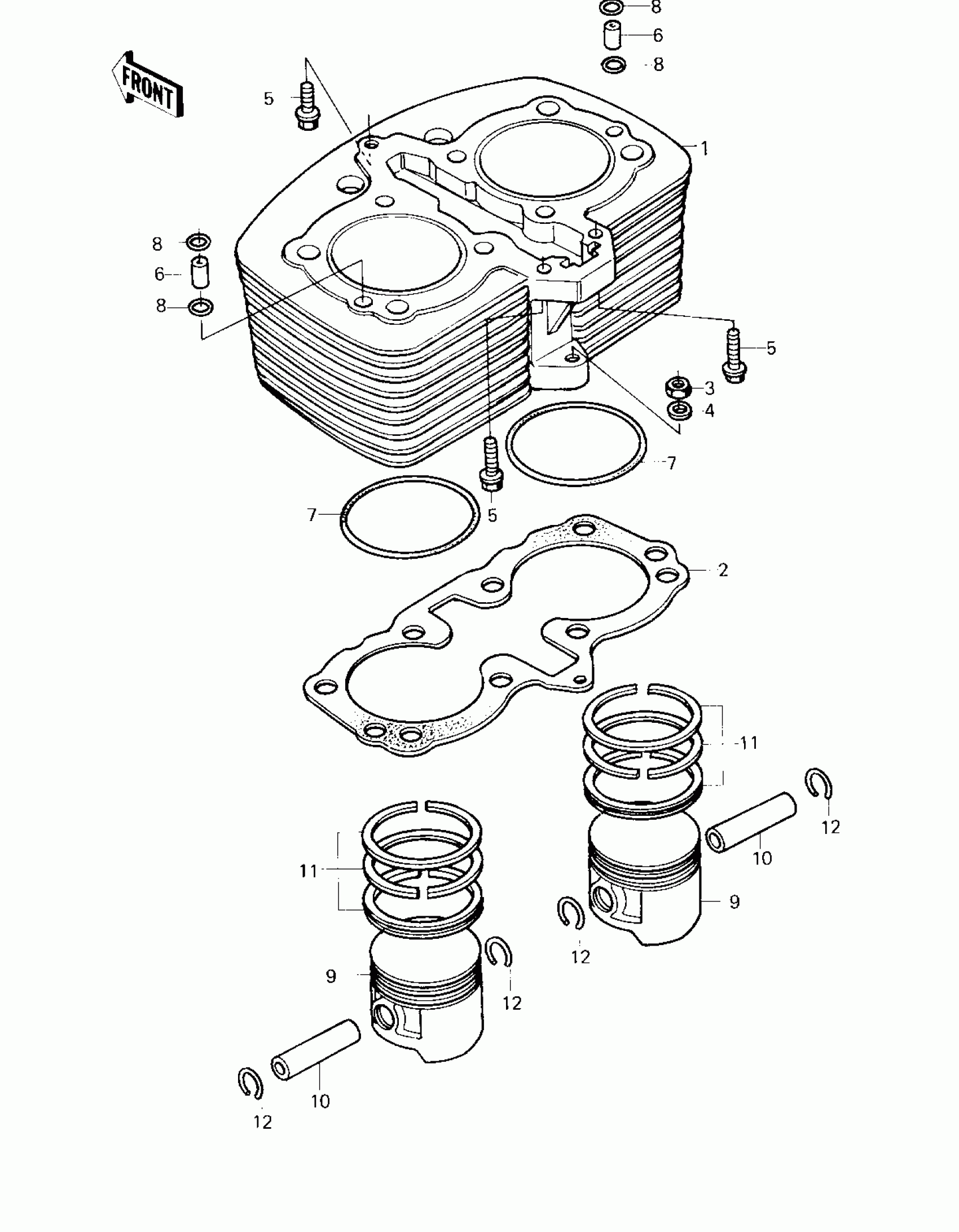

Find the part on the Cylinder/pistons diagram for your 1980 Kawasaki LTD II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki LTD II Cylinder/pistons Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER,BARREL

11005-150-2H

1
Out of stock

2

GASKET,CYLINDER BASE

11009-042

1
Out of stock

3

NUT-HEX,6MM

311G0600

1
Out of stock

4

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

5

BOLT, HEX HEAD, 6X34

92003-159

1
Out of stock

6

PIN,DOWEL

92042-039

1
Out of stock

7

"O" RING

92055-081

1
Out of stock

8

"O" RING

92055-094

1
Out of stock

9

PISTON,STD

13001-1086

1
Out of stock

9

PISTON,0.50 O/S

13029-1039

—
Out of stock

9

PISTON,1.00 O/S

13027-1038

—
Out of stock

10

PIN-PISTON

13002-031

1
Out of stock

11

RING SET,PISTON

13008-055

1
Out of stock

11

RING SET,0.020'0.S

13025-059

—
Out of stock

11

RING SET,0.040'0.S

13024-059

—
Out of stock

12

RING-SNAP,PISTON PIN

92036-008

1
Out of stock
