1980 Kawasaki LTD II Cylinder Head/cover Diagram

← All diagrams

Find the part on the Cylinder Head/cover diagram for your 1980 Kawasaki LTD II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

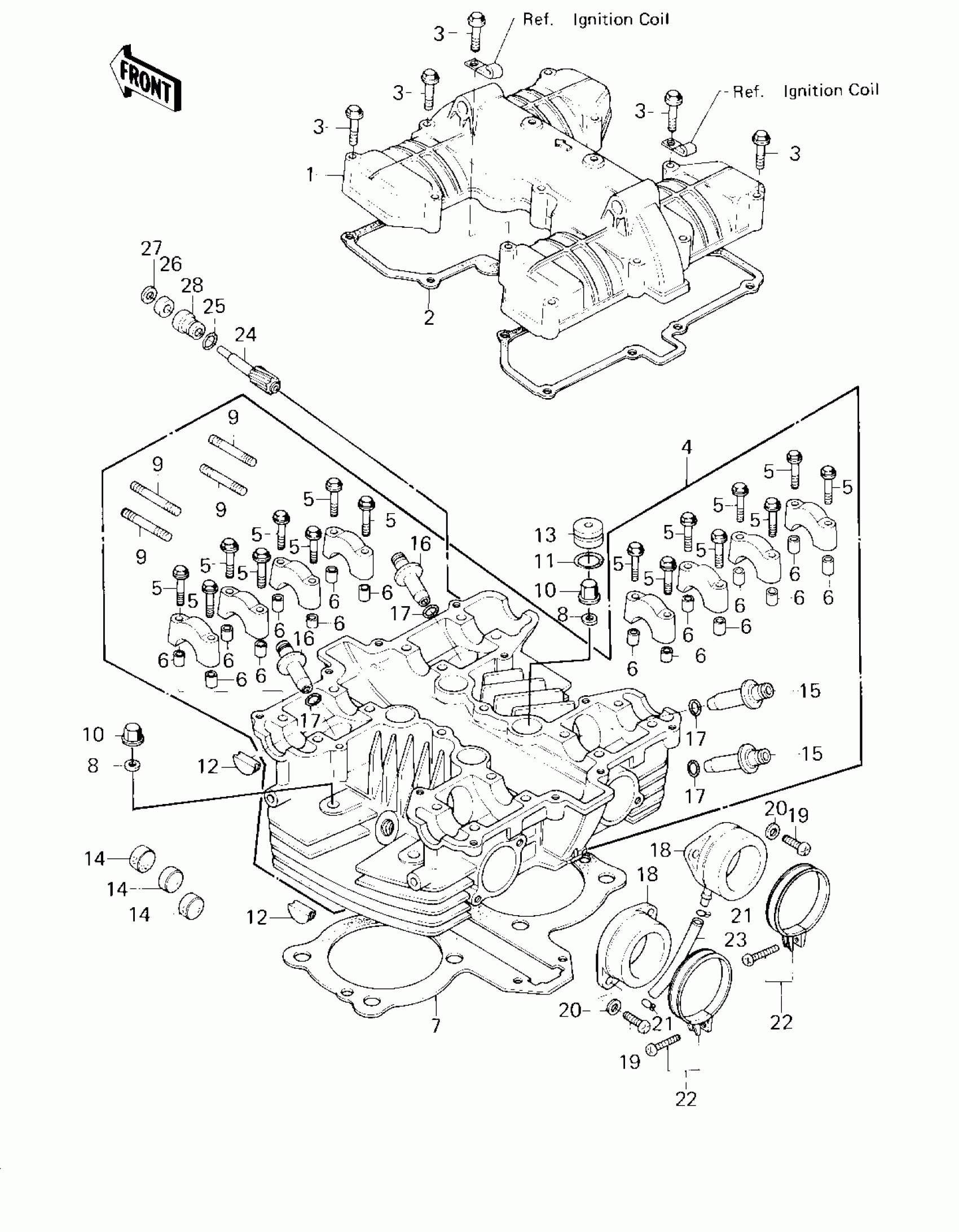

1980 Kawasaki LTD II Cylinder Head/cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CYLINDER HEAD

11022-008-2H

1
Out of stock

2

GASKET,CYL HEAD COVE

11023-008

1
Out of stock

3

BOLT,FLANGED,6X45

92003-092

1
Out of stock

4

HEAD ASSY,CYL,BARREL

11002-5010

1
Out of stock

5

BOLT,FLANGED,6X45

92003-092

1
Out of stock

6

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

7

GASKET,CYLINDER HEAD

11004-1055

1
Out of stock

8

WASHER-PLAIN,10MM

411B1000

1
Out of stock

9

STUD,8MM

92004-058

1
Out of stock

10

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

11

"O" RING

92055-095

1
Out of stock

12

PLUG,CAM SHAFT

92066-047

1
Out of stock

13

PLUG,CYLINDER HEAD

92066-052

1
Out of stock

14

DAMPER,CYLINDER HEAD/CYLINDER

92075-109

1
Out of stock

15

GUIDE,INLET VALVE

12013-007

1
Out of stock

16

GUIDE,EXHAUST VALVE

12013-011

1
Out of stock

17

"O" RING,VALVE GUIDE

92055-065

1
Out of stock

18

HOLDER,CARBURETOR

16065-036

1
Out of stock

19

SCREW PAN HEAD 6X18

220B0618

1
Out of stock

20

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

21

CLAMP,TUBE

92037-072

1
Out of stock

22

CLAMP,AIR FILTER

92037-171

1
Out of stock

23

TUBE,BALANCER

92059-122

1
Out of stock

24

GEAR,TACHOMETER

13223-013

1
Out of stock

25

O RING,9.8X1.9

670B1510

1
Out of stock

26

SEAL-OIL

92050-075

1
Out of stock

27

GASKET,TACHOMETER GEAR

92065-103

1
Out of stock

28

GUIDE,TACHOMETER GEAR

92087-009

1
Out of stock
