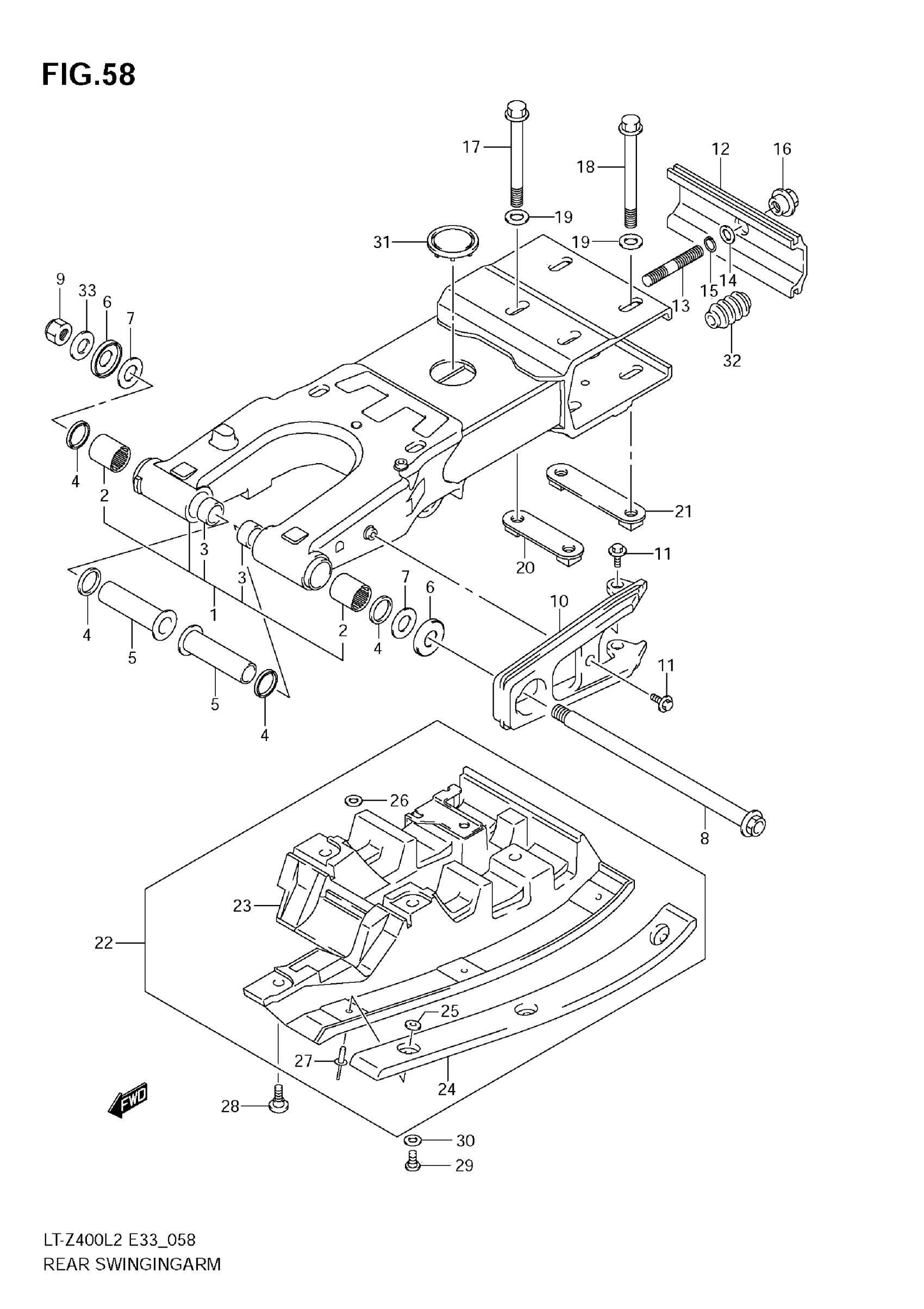

Suzuki LT-Z400L2 (2012) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM SET, REAR

61101-07840

Unavailable

2

BEARING (22X29X30)

09263-22017

$20.38

3

BUSH, RR SWINGING ARM PIVOT

61261-07G00

$19.68

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

SPACER

61252-07G00

$42.57

6

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$6.42

7

WASHER

08211-17341

$2.53

8

SHAFT, PIVOT

61211-33H00

$108.50

9

NUT

09159-16007

$11.37

10

BUFFER,CHAIN TO This part replaces 61273-07G00.

61273-07G01

$20.32

11

BOLT (6X20)

09116-06192

$2.44

12

PLATE, CHAIN ADJUSTER

61421-07G00

$85.67

13

STUD BOLT

09108-12014

$4.67

14

WASHER (20X26X1)

09160-20081

$2.80

15

CIRCLIP

08331-3120A

$2.01

16

NUT, CHAIN ADJUSTER

61422-07G00

$20.81

17

BOLT (12X121) | FR

09103-12074

$7.36

18

BOLT (12X112) | RR

09103-12075

$7.02

19

WASHER (12.5X30X3)

09160-12103

$2.89

20

WASHER, AXLE HOUSING SET FR

61470-07G10

$12.11

21

WASHER, AXLE HOUSING SET RR

61480-07G10

$13.14

22

GUARD SET, SWINGINGARM UNDER

61305-07G10

$279.42

23

GUARD, SWINGINGARM UNDER

61391-07G10

$177.63

24

BUFFER, SWGARM GUARD

61396-07G20

Unavailable

25

WASHER (4.9X15X1.2)

09160-04027

Unavailable

26

WASHER (5X10X1.0)

09160-05049

$2.35

27

RIVET

09229-04048

Unavailable

28

BOLT, GUARD

61393-09F10

$6.72

29

BOLT (8X15)

09106-08076

$5.52

30

WASHER

08322-0110B

$2.37

31

CAP, RR SWINGINGARM

61222-05A01

$16.38

32

BOOT, CHAIN ADJUSTER BOLT

61425-07G00

$6.63

33

WASHER (16.2X30X2.6)

09160-16031

$2.80
