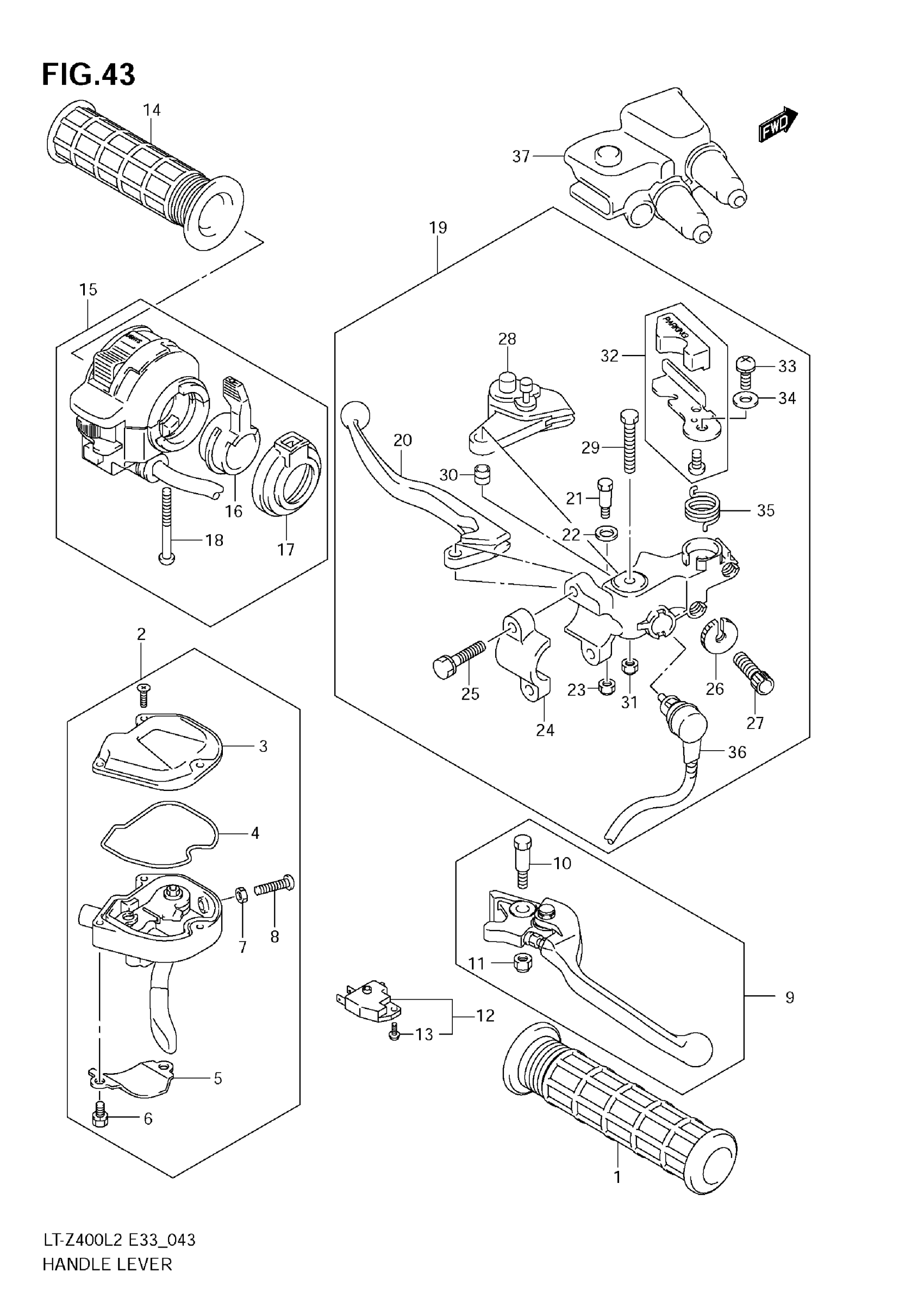

Find the part on the Handle Lever diagram for your 2012 Suzuki LT-Z400L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-Z400L2 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP This part replaces 57211-03G10.

57211-03G11

1
Out of stock

2

CASE ASSY,THROTTLE This part replaces 57100-27H01.

57100-27H03

1
Out of stock

3

CAP

57121-27H00

1
Out of stock

4

GASKET

57157-27H00

1
Out of stock

5

HOLDER

57126-07G00

1
Out of stock

6

BOLT

57127-07G00

2
Out of stock

7

NUT This part replaces 08310-0005B.

08310-0005A

1
Out of stock

8

SCREW

02112-0520B

1
Out of stock

9

LEVER, FRONT BRAKE

57300-45G00

1
Out of stock

10

BOLT,BRAKE LEVER PIVOT

57431-04F00

1
Out of stock

11

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

12

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

1
Out of stock

13

SCREW

57465-17C00

1
Out of stock

14

GRIP This part replaces 57211-03G10.

57211-03G11

1
Out of stock

15

SWITCH ASSY, HANDLE LH

37400-33H00

1
Out of stock

16

LEVER, CHOKE

37571-19B01

1
Out of stock

17

COVER, CHOKE

37576-19B01

1
Out of stock

18

SCREW

02112-0545B

2
Out of stock

19

LEVER SET,CLUTC This part replaces 57500-33H00.

57500-33H02

1
Out of stock

20

LEVER

57621-45G00

1
Out of stock

21

BOLT, PIVOT

57513-07G00

1
Out of stock

22

WASHER

57432-07G00

1
Out of stock

23

NUT

08319-2106B

1
Out of stock

24

HOLDER

57512-07G00

1
Out of stock

25

..BOLT

01547-0620B

2
Out of stock

26

NUT,ADJUSTER This part replaces 57442-07G00.

57442-07G01

2
Out of stock

27

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

2
Out of stock

28

LOCK SET, PARKING LOCK

57800-33810

1
Out of stock

29

BOLT, PARKING LOCK

57431-33H00

1
Out of stock

30

SPACER

57623-07G00

1
Out of stock

31

NUT

08319-2106B

1
Out of stock

32

KNOB SET, PARKING

57700-07850

1
Out of stock

33

SCREW, PARKING PLATE

57619-07G00

1
Out of stock

34

WASHER

57618-07G00

1
Out of stock

35

SPRING, RETURN

57624-07G00

1
Out of stock

36

SWITCH ASSY, CLUTCH

57560-07G10

1
Out of stock

37

COVER, LEVER

57541-07G00

1
Out of stock
