Description

Price

1

HUB, REAR WHEEL

64110-45G01

$273.25

2

RIM, REAR WHEEL (9X8.0AT)

65310-07G10

Unavailable

3

NUT

09159-10114

$4.67

4

WASHER

09164-20002

$3.33

5

NUT

09141-20009

$30.90

6

COTTER PIN

04111-4035A

$1.37

7

WASHER, REAR AXLE NO.1

64723-45G00

$16.07

8

NUT, REAR AXLE

64871-45G00

$92.13

9

NUT, REAR AXLE LOCK

64872-45G00

$43.27

10

BOLT, REAR AXLE NUT

64873-45G00

$79.62

11

SNAP RING

09380-40004

$3.48

12

FLANGE,REAR SPROCKET MOUNTING

64611-33H00

$273.43

13

SPROCKET, REAR

64511-33H00

$118.78

14

BOLT (10X36)

09120-10001

$4.18

15

NUT

09159-10115

$3.21

16

TIRE, REAR

65110-07G00

$336.21

17

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

18

DUST SEAL (D:1.6,ID:39.8)

09281-40001

$5.67

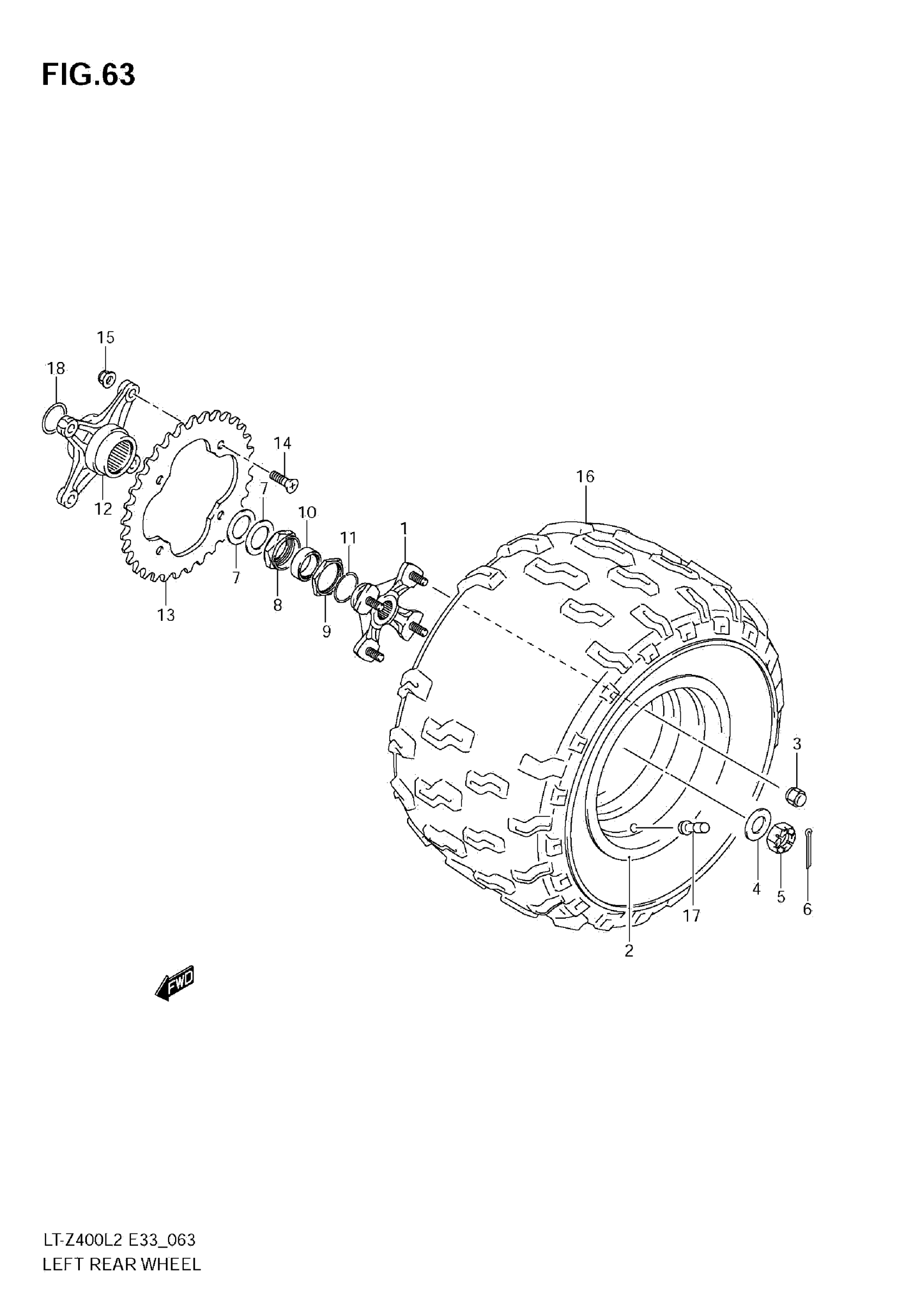

Suzuki LT-Z400L2 (2012) LEFT REAR WHEEL (LT-Z400L2) Diagram
