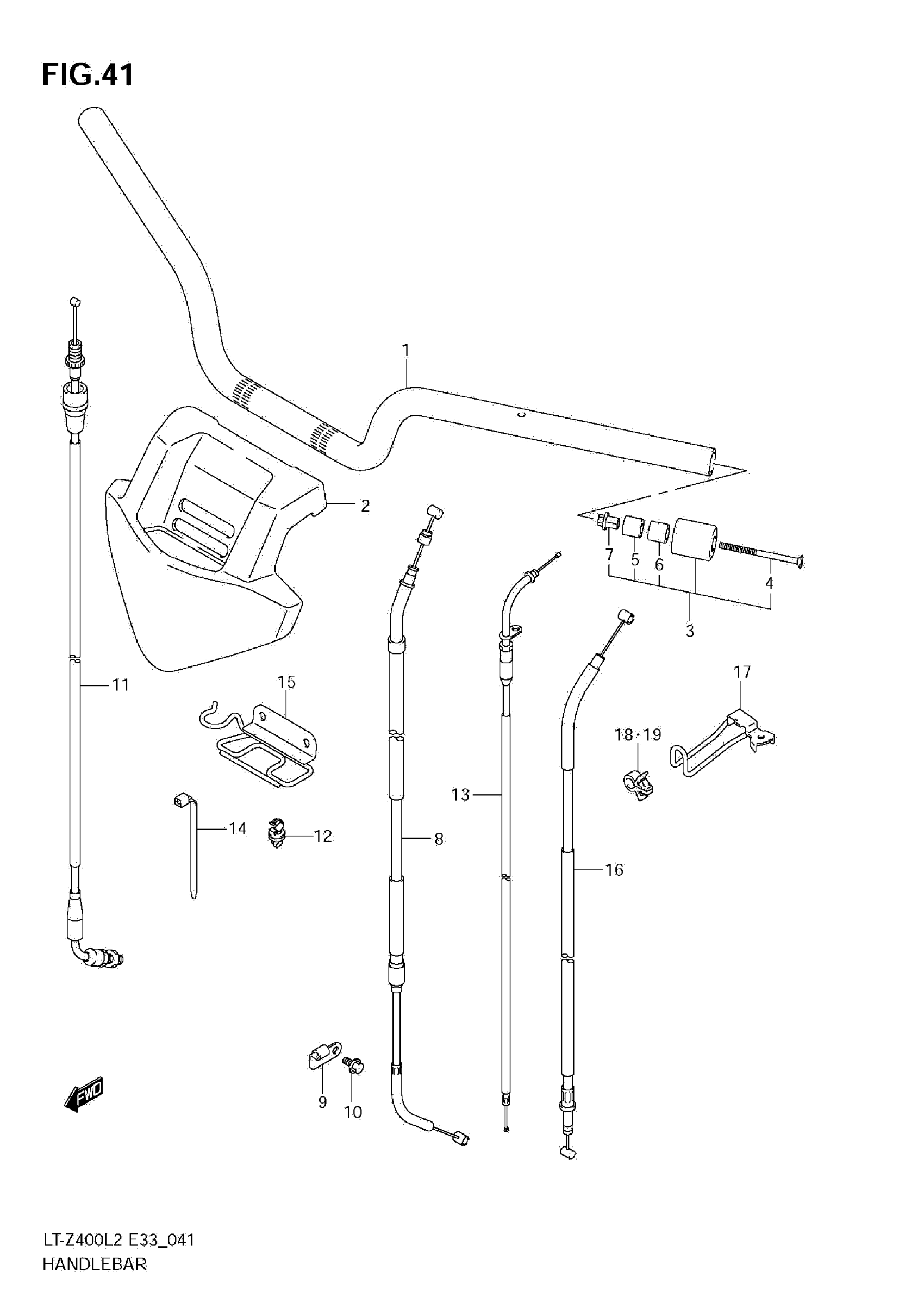

Suzuki LT-Z400L2 (2012) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-33H00

$309.44

2

COVER, STEERING HEAD (BLACK)

56171-33H00-291

$55.55

3

BALANCER SET,HA This part replaces 56200-33860.

56200-33862

$42.45

4

SCREW

02122-0670A

Unavailable

5

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.44

6

.SPACER (6.5X16X15)

09180-06161

$7.10

7

NUT

56273-10G10

$7.92

8

CABLE, CLUTCH

58200-33H00

$86.13

9

STOPPER, CLUTCH CABLE

58634-29F00

$14.18

10

BOLT

01547-0612A

$2.01

11

CABLE ASSY,THRO This part replaces 58300-33H00.

58300-33H01

$39.20

12

CLAMP

09403-07331

$3.80

13

CABLE COMP STAR This part replaces 58410-33H00.

58410-33H01

$55.07

14

CLAMP (L:95)

09407-11401

$2.87

15

GUIDE, CABLE

58620-33H00

Unavailable

16

CABLE, PARKING

58810-33H00

$96.10

17

GUIDE, PARKING CABLE

58630-33H00

Unavailable

18

CLAMP

09403-12312

$4.28

19

CLAMP

09403-07327

$4.28
