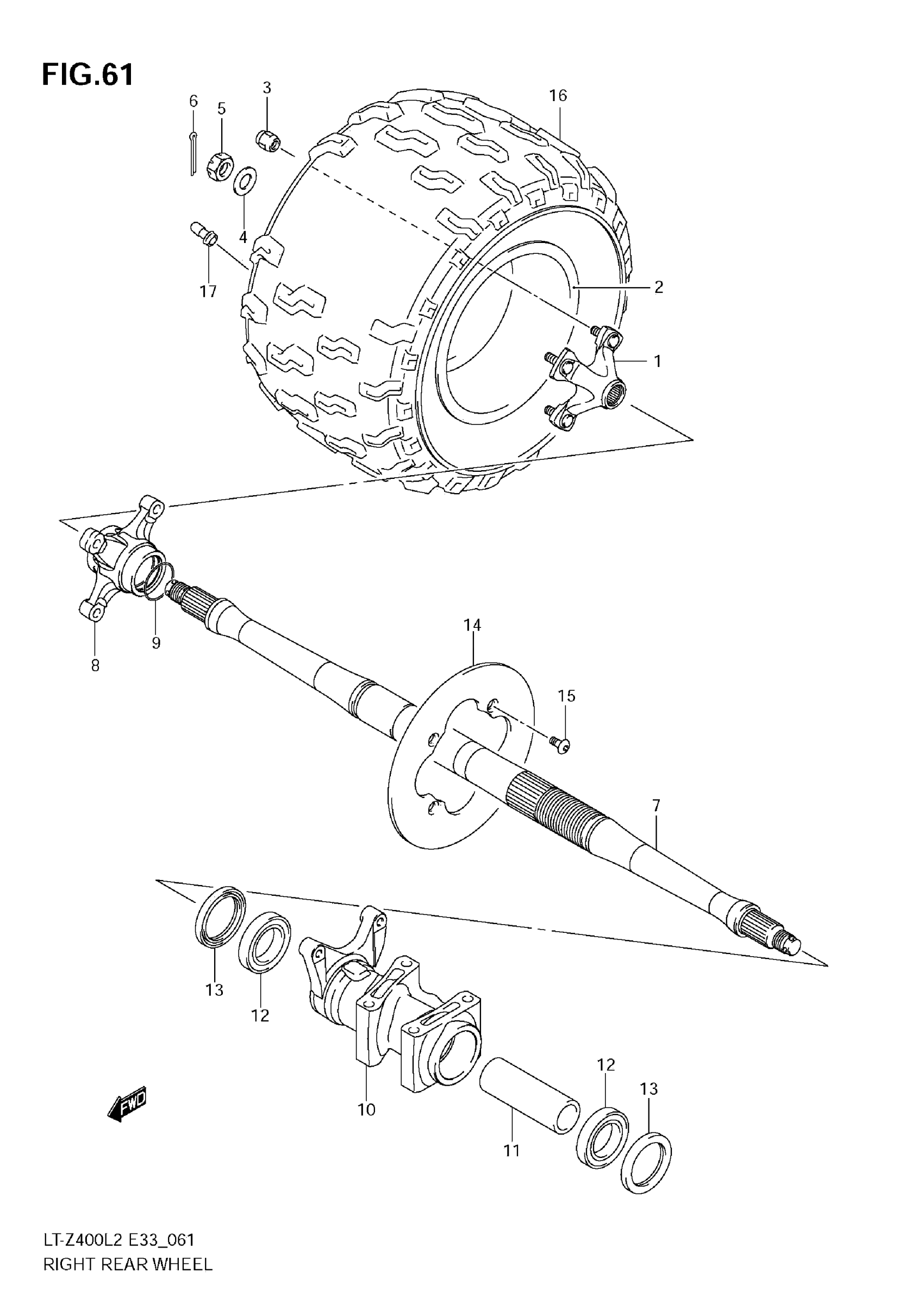

Suzuki LT-Z400L2 (2012) RIGHT REAR WHEEL (LT-Z400L2) Diagram

Description

Price

HUB, REAR WHEEL

64110-45G01

$273.25

RIM, REAR WHEEL (9X8.0AT)

65310-07G10

Unavailable

NUT

09159-10114

$4.67

WASHER

09164-20002

$3.33

NUT

09141-20009

$30.90

COTTER PIN

04111-4035A

$1.37

AXLE, REAR

64711-33H00

$859.03

HOUSING, REAR DISC PLATE

69212-33H00

$280.18

DUST SEAL (D:1.6,ID:39.8)

09281-40001

$5.67

HOUSING, RR AXLE BEARING

64715-33H00

$333.07

SPACER, RR AXLE BEARING

64731-45G00

$82.83

BRG,RR AXLE,40X This part replaces 09262-40015.

09262-40020

$25.08

OIL SEAL (52X62X7)

09283-52005

$13.99

DISC, REAR BRAKE

69211-07G00

$314.15

BOLT (8X21)

09106-08160

$3.22

TIRE, REAR

65110-07G00

$336.21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10
