Description

Price

1

HUB, FRONT WHEEL (BLACK)

54110-07G00-019

$314.15

2

BEARING | INNER This part replaces 08120-60047.

08120-6004B

$15.30

3

BEARING (15X35X11) | OUTER

09262-15024

$23.08

4

OIL SEAL (26X42X8) | INNER

09284-26002

$10.16

5

OIL SEAL (21X35X8) | OUTER

09284-21001

$12.12

6

SPACER, FRONT HUB BEARING

54731-07G10

$14.01

7

RIM, FRONT WHEEL (10X5.5AT)

55310-07G10

$612.32

8

NUT

09159-10114

$4.82

9

WASHER (15X26X2.3)

09160-15052

$4.12

10

NUT

08314-4014B

$4.00

11

COTTER PIN

04111-3025A

$1.43

12

SPACER (15.3X21X10)

09180-15068

$4.55

13

SPACER (20.5X26X10)

09180-20122

$16.43

14

DISC, FRONT BRAKE

59211-07G00

$202.90

15

BOLT (8X21)

09106-08160

$3.32

16

COVER, FRONT DISC

59231-07G20

$58.95

17

BOLT (6X12)

09103-06285

$2.02

18

TIRE, FRONT

55110-07G00

Unavailable

19

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

20

PLATE, FRONT HUB

54138-07G10

$20.65

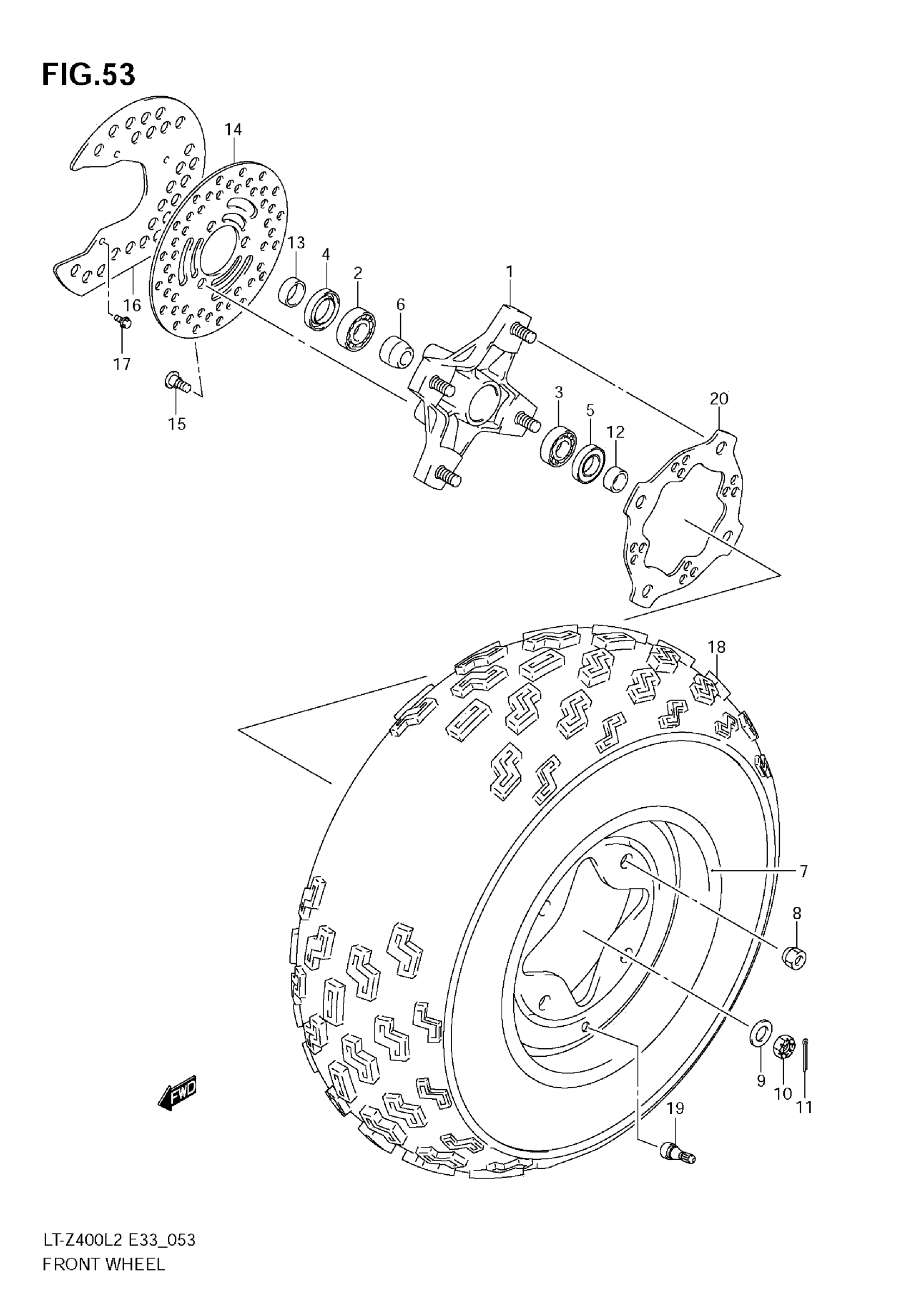

Suzuki LT-Z400L2 (2012) FRONT WHEEL (LT-Z400L2) Diagram
