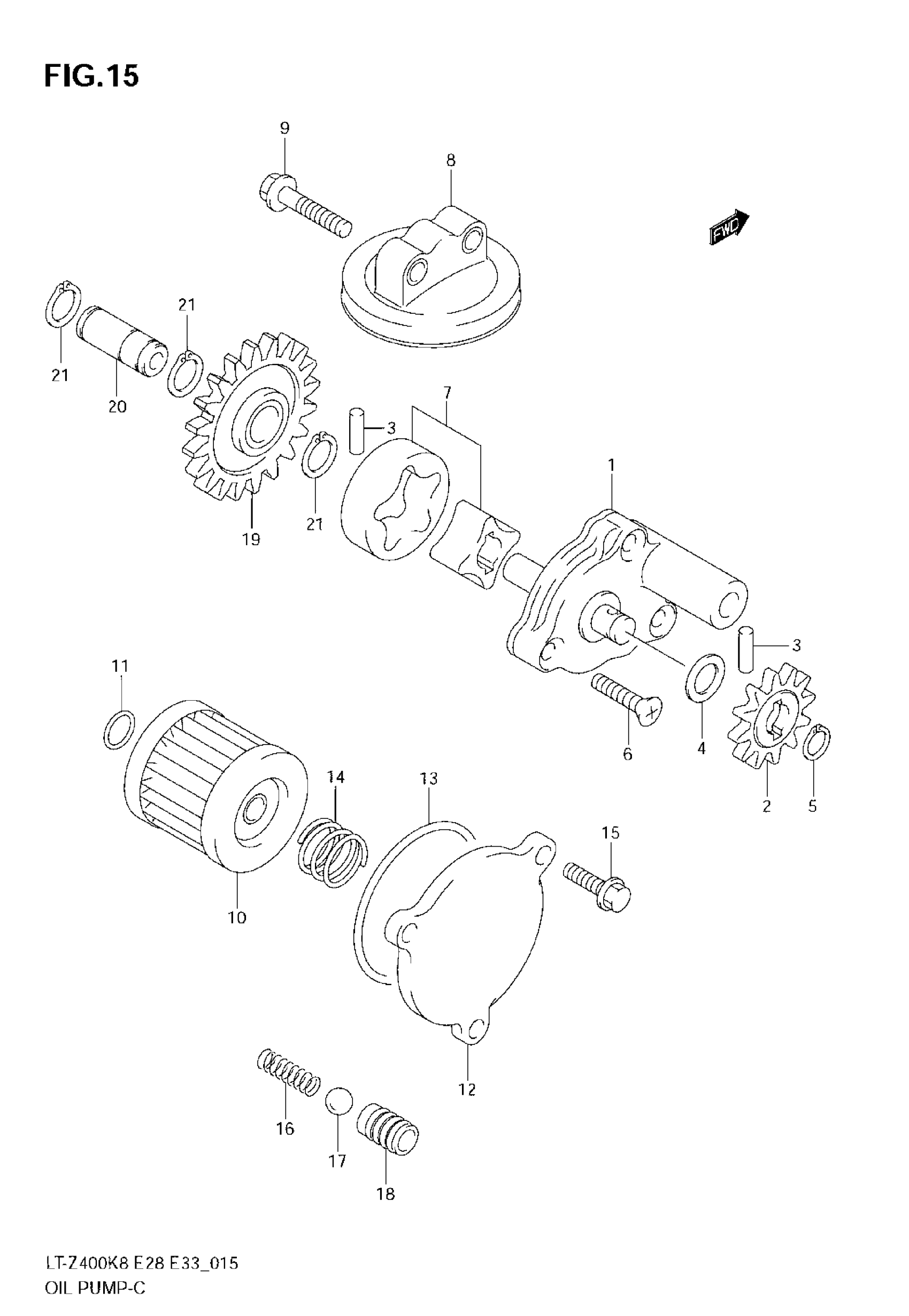

Suzuki LT-Z400 (2008) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL NO.1

16400-29F00

$148.89

2

GEAR, DRIVEN

16331-29F01

$45.08

3

PIN

09261-04009

$1.56

4

WASHER

09181-10158

$2.03

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.82

6

SCREW

02122-0625B

$2.05

7

ROTOR SET, OIL PUMP NO.2

16410-29F00

$42.27

8

STRAINER, OIL PUMP NO.2 This part replaces 16520-29F00.

16520-29F01

$24.63

9

BOLT

01550-0625B

$2.53

10

FILTER, ENGINE OIL

16510-29F00

$7.02

11

O RING (D:1.9,ID:13.0)

09280-13004

$2.25

12

CAP, OIL FILTER

16512-47E00

$44.02

13

O RING (D:2.4,ID:52.6)

09280-54001

$3.49

14

SPRING

09440-18002

$1.13

15

BOLT

01547-0616B

$2.50

16

SPRING

09440-07073

$4.26

17

BALL

06111-12004

$2.01

18

SEAT, OIL CHECK VALVE

16442-29F00

$26.72

19

GEAR, OIL PUMP IDLE

16321-29F00

$25.37

20

SHAFT

16322-29F00

$22.42

21

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.82
