1997 Suzuki LT-F4WDX Front Wheel Diagram

← All diagrams

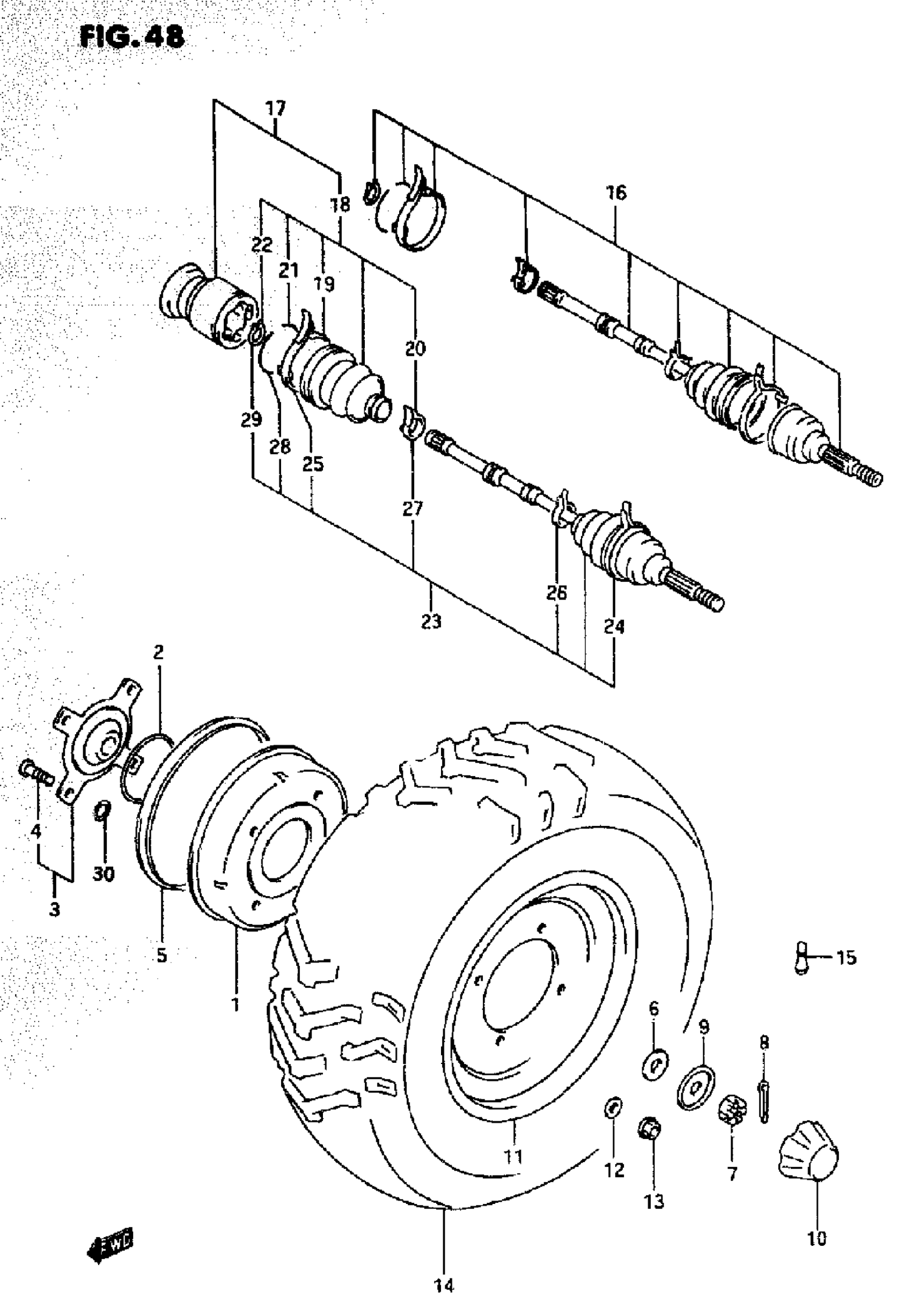

Find the part on the Front Wheel diagram for your 1997 Suzuki LT-F4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-F4WDX Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, BRAKE

54120-39D00

2
Out of stock

2

2

$3.79

In stock

3

HUB, FRONT

54110-39D01

2
Out of stock

4

8

$2.23

In stock

5

DUST SEAL, DRUM BRAKE

54124-39D10

2
Out of stock

6

WASHER. HUB

09164-18004

2
Out of stock

7

NUT, HUB

09141-18008

2

$8.27

In stock

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

2
Out of stock

9

HOLDER, CENTER CAP

64726-19B00

2

$3.39

In stock

10

CAP, WHEEL CENTER

54725-39D00

2

$15.15

In stock

11

NO DESCRIPTION AVAILABLE | FOR OVT This part replaces 55310-19B81-13L.

55310-39D10-13L

2
Out of stock

11

RIM,FRONT WHEEL | FOR Z34 This part replaces 55310-19B81-12R.

55310-39D20-PBV

2
Out of stock

12

WASHER This part replaces 09160-10031.

09160-10126

8
Out of stock

13

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

14

TIRE COMP,FRONT This part replaces 55100-19B80.

55110-19BA0

2
Out of stock

15

VALVE ASSY, WHEEL RIM, TR413

43130-78030

2
Out of stock

16

SHAFT ASSY,FRON This part replaces 54918-19B80.

54901-19B82

1
Out of stock

16

SHAFT ASSY,FRT This part replaces 54919-19B80.

54902-19B82

1
Out of stock

17

JOINT SET,DIFF This part replaces 54933-19B13.

54933-19B14

2
Out of stock

18

BOOT SET,DIFF S This part replaces 54931-19B13.

54931-19B14

2
Out of stock

19

CLAMP, OUTER

44122-86010

2
Out of stock

20

CLAMP, INNER

44124-50A20

2
Out of stock

21

CIRCLIP

44112-78010

2
Out of stock

22

SNAP RING

27182-70410

2
Out of stock

23

BOOT SET This part replaces 54930-19B11.

54930-19B12

2
Out of stock

24

CLAMP, OUTER

44121-60DB0

2
Out of stock

25

CLAMP

44122-86010

2
Out of stock

26

CLAMP, INNER

44124-60DB0

2
Out of stock

27

CLAMP

44124-50A20

2
Out of stock

28

CIRCLIP

44112-78010

2
Out of stock

29

SNAP RING

27182-70410

2
Out of stock

30

0 RING (ID:9.8, 0:1.90)

09280-10016

8
Out of stock
