1997 Suzuki LT-F4WDX Knuckle Cover Diagram

← All diagrams

Find the part on the Knuckle Cover diagram for your 1997 Suzuki LT-F4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

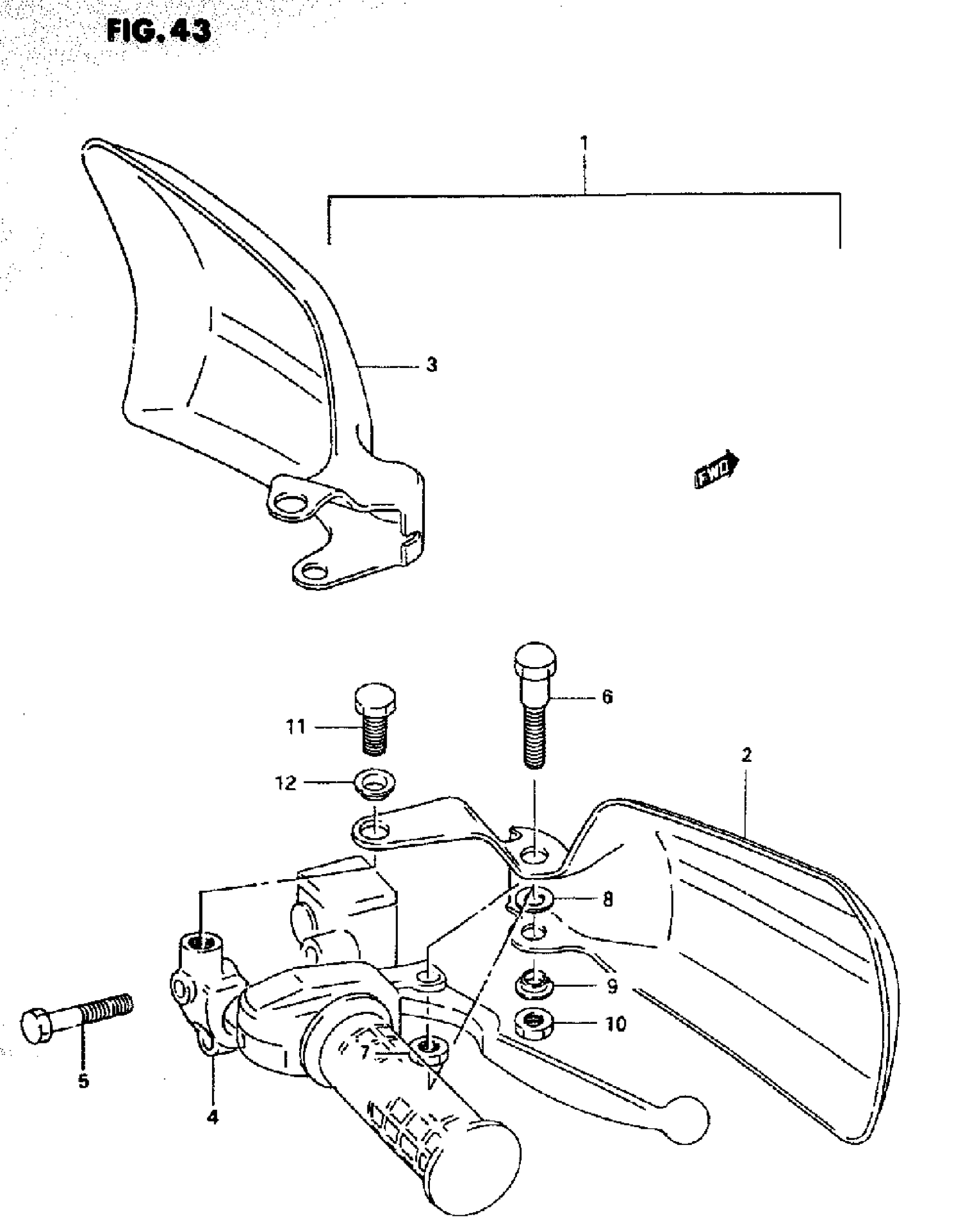

1997 Suzuki LT-F4WDX Knuckle Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER SET. KNUCKLE (BLUE)

57300-19811-0VT

1
Out of stock

1

COVER SET, KNUCKLE (BROWN)

57300-19811-Z34

1
Out of stock

2

COVER, KNUCKLE RH (BLUE)

57341-19B50-0VT

1
Out of stock

2

COVER SET, KNUCKLE (BROWN) This part replaces 57341-19B50-Z34.

57300-19811-Z34

1
Out of stock

3

COVER, KNUCKLE LJI (BLUE)

57541-19B50-0VT

1
Out of stock

3

COVER, KNUCKLE LM (BROWN)

57541-19B50-Z34

1
Out of stock

4

HOLDER, MASTER CYLINDER

59671-44300

1
Out of stock

5

BOLT This part replaces 01560-06403.

01560-0640B

1
Out of stock

6

BOLT, LEVER PIVOT RH | L:39

57431-14A00

2
Out of stock

7

NUT This part replaces 09159-06068.

09159-06015

2
Out of stock

8

WASHER

09160-06019

2
Out of stock

9

WASHER

09169-06033

2
Out of stock

10

NUT This part replaces 09159-06068.

09159-06015

2
Out of stock

11

BOLT, MIRROR STAY

09104-10036

2
Out of stock

12

WASHER,KNUCKLE COVER UPPER,L This part replaces 09169-10010.

09169-10024

2
Out of stock
