1997 Suzuki LT-F4WDX Handle Bar - Cable Diagram

← All diagrams

Find the part on the Handle Bar - Cable diagram for your 1997 Suzuki LT-F4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

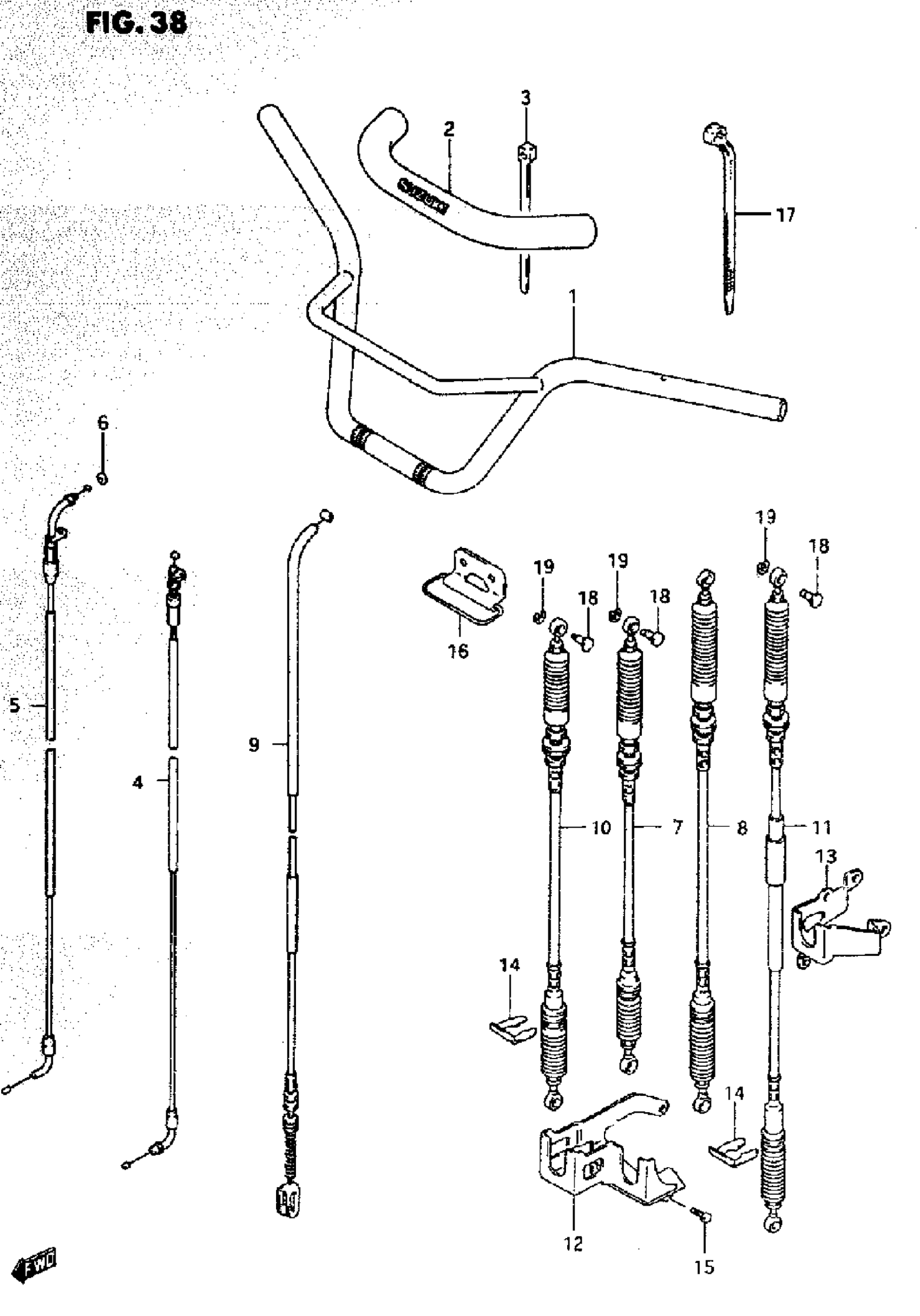

1997 Suzuki LT-F4WDX Handle Bar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR This part replaces 56110-19B31-291.

56110-19B32-291

1
Out of stock

2

PAD. CROSS (0D:30)

56172-19B01-291

1
Out of stock

3

BAND (L:145)

09407-14407

2
Out of stock

4

CABLE ASSY, THROTTLE

58300-19B20

1
Out of stock

5

CABLE, STARTER

58410-19B10

1
Out of stock

6

WASHER This part replaces 09161-05015.

09320-06503

1
Out of stock

7

CABLE, T/M GEAR SHIFT

58680-19B21

1
Out of stock

8

CABLE. TRANSFER SHAFT

58690-19B01

1
Out of stock

9

CABLE, PARKING BRAKE

58810-19B02

1
Out of stock

10

CABLE, REVERSE This part replaces 58840-19B10.

58840-39DA0

1
Out of stock

11

CABLE, SUB T/M SHIFT

58880-19B11

1
Out of stock

12

BRACKET, CONTROL CABLE

58870-19B00

1
Out of stock

13

BRACKET, CONTROL CABLE

58873-19B11

1
Out of stock

14

CLIP

09383-19003

4
Out of stock

15

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

16

GUIDE, CABLE

58620-19B10

1
Out of stock

17

CLAMP (L:95)

09407-11401

3
Out of stock

17

CLAMP (L:125)

09407-14403

1
Out of stock

17

CLAMP This part replaces 09407-18403.

09407-18402

1
Out of stock

18

PIN

09208-08008

3
Out of stock

19

CIRCLIP This part replaces 08332-11063.

08332-1106A

3
Out of stock
