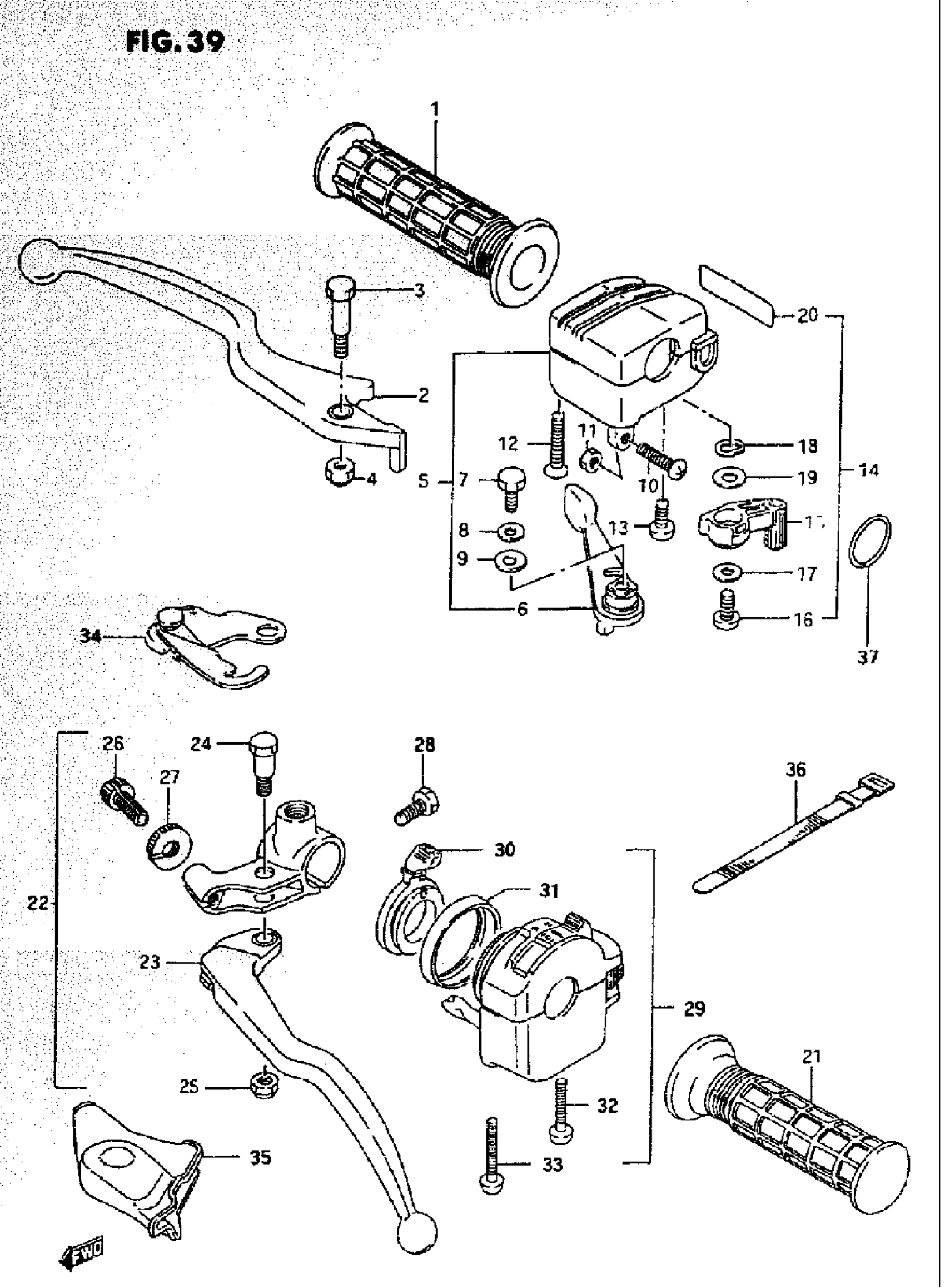

Suzuki LT-F4WDX (1997) HANDLE LEVER Diagram

#

Description
Price

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$10.75

2

LEVER, BRAKE

57421-39D10

$39.27

3

BOLT This part replaces 57431-13030.

09111-06075

$8.28

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

5

CASE ASSY, THROTTLE This part replaces 57100-19B02.

57100-39DB0

$128.28

6

LEVER

57151-24301

$12.19

7

BOLT This part replaces 01500-06163.

01500-0616A

$1.77

8

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.83

9

WASHER

09160-06019

$1.38

10

SCREW

09125-05066

$1.52

11

NUT

09140-05006

$2.77

12

SCREW

02132-05307

$1.63

13

SCREW This part replaces 02112-05123.

02112-0512A

$1.45

14

LEVER SET, THROTTLE POSITION | OPT.E28

57300-19820

Unavailable

15

LEVER, STOP | OPT, E28

57155-18B10

Unavailable

16

SCREW | OPT, E28 This part replaces 02112-05123.

02112-0512A

$1.45

17

WASHER, FRONT | OPT, E28 This part replaces 08322-01053.

08322-0105A

$1.83

18

WASHER | OPT, E28

57156-24300

Unavailable

19

WASHER | OPT, E28

09160-08003

$2.43

20

LABEL | OPT, E28

68628-19B00

Unavailable

21

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$10.75

22

LEVER ASSY, REAR BRAKE

57500-24502

Unavailable

23

LEVER

57620-24501

Unavailable

24

BOLT

57431-29502

$8.65

25

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

26

ADJUSTER

57441-44400

$5.91

27

NUT This part replaces 57442-44400.

57442-11010

$2.80

28

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

29

SWITCH ASSY,HAN This part replaces 37400-19B11.

37400-19B13

$196.25

30

.LEVER, CHOKE

37571-19B01

$11.12

31

.COVER, CHOKE

37576-19B01

$6.21

32

.SCREW

02112-05407

$2.04

33

.SCREW

02112-05457

$1.88

34

STOPPER, BRAKE

57790-19B00

Unavailable

35

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$11.55

36

BAND

09407-12402

$2.80

37

O RING

09280-24009

$8.81
