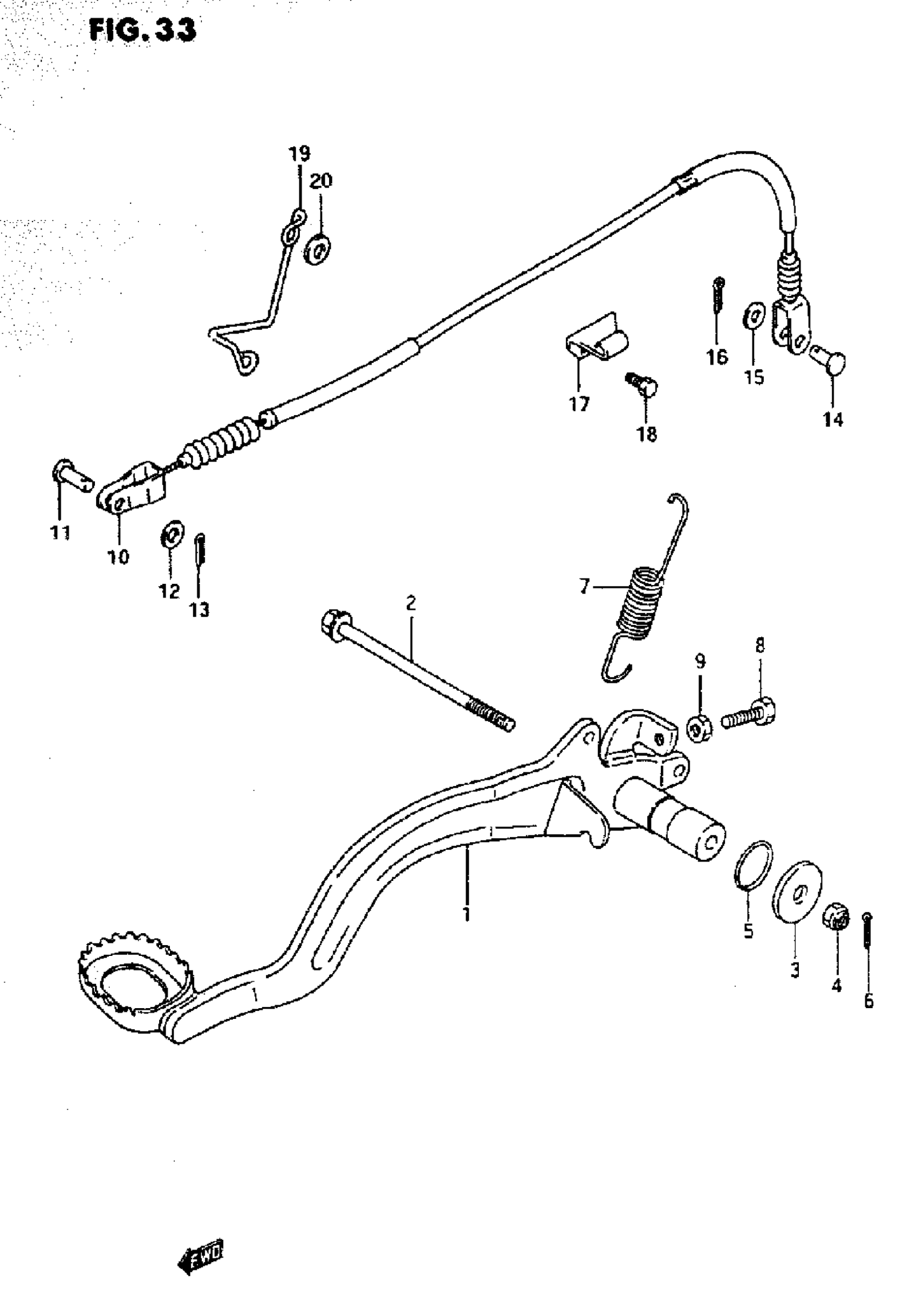

Suzuki LT-F4WDX (1997) REAR BRAKE Diagram

#

Description
Price

1

PEDAL. BRAKE

43110-19B20

Unavailable

2

BOLT

09103-06106

Unavailable

3

WASHER, INNER This part replaces 09160-06096.

09160-06135

$2.15

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

5

0 RING

09280-17002

$4.62

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

7

SPRING

09443-15032

$5.28

8

BOLT

01500-06207

$1.99

9

NUT This part replaces 08310-00063.

08310-0006A

$1.83

10

CARB ASSY, REAR BRAKE

58510-19B12

$141.93

11

PIN, FRONT

09200-06013

$2.05

12

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

14

PIN, REAR

09200-08061

$3.80

15

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

17

BRACKET, CABLE

58575-19B10

Unavailable

18

BOLT This part replaces 01570-06163.

01570-0616A

$2.24

19

GUIDE, CABLE

58611-19B02

Unavailable

20

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24
