2005 Suzuki LT-A50 Rear Swingingarm Diagram

← All diagrams

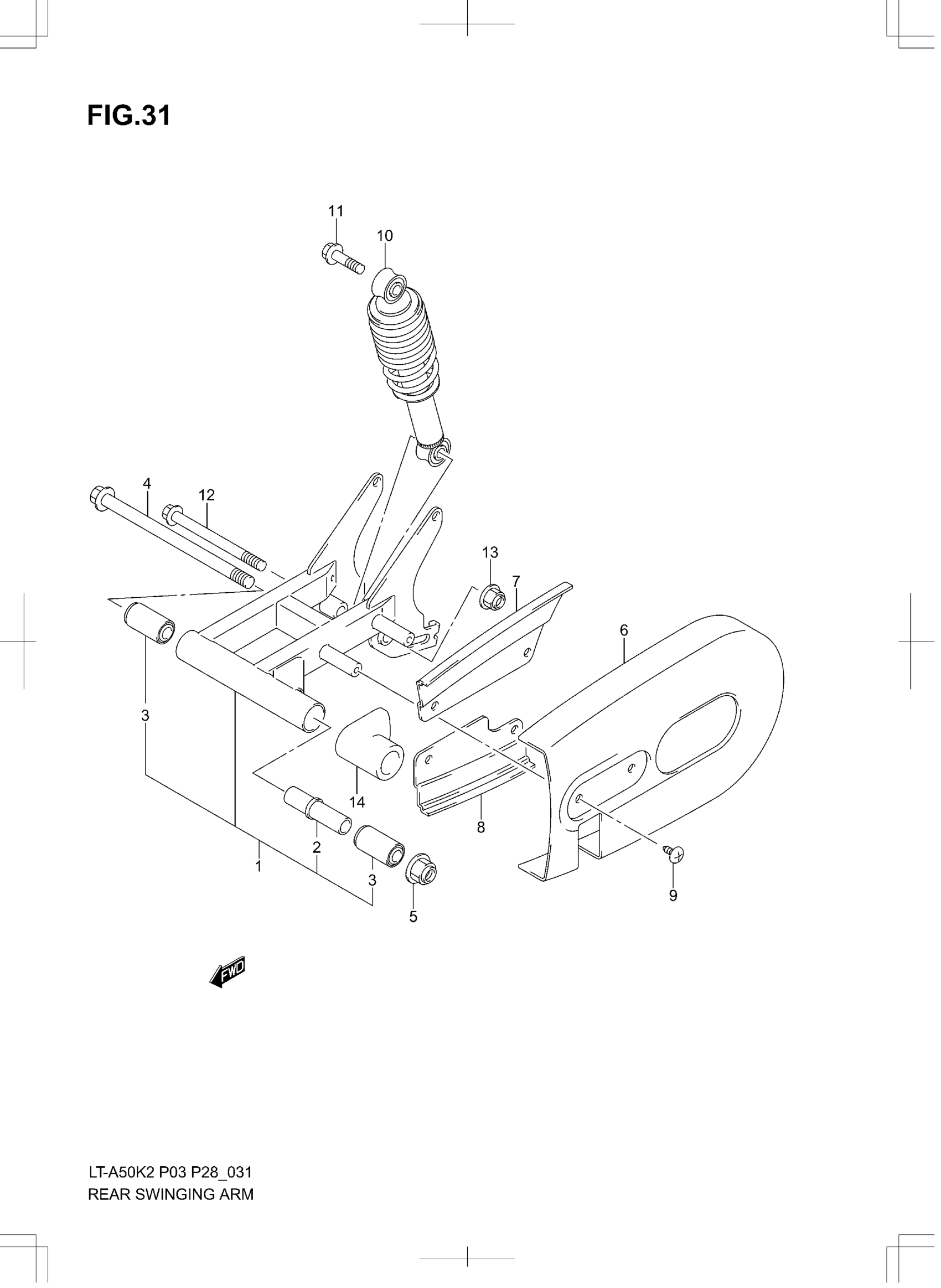

Find the part on the Rear Swingingarm diagram for your 2005 Suzuki LT-A50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-A50 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM ASSY, REAR (BLACK) | Includes Item(s) 2 - 3

61000-43F00-019

1
Out of stock

2

SPACER

61280-43F00

1
Out of stock

3

BUSH

09319-12018

2
Out of stock

4

SHAFT, PIVOT

61211-43F00

1
Out of stock

5

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

6

CASE, CHAIN

61310-43F00

1
Out of stock

7

CASE, CHAIN INNER UPPER

61313-43F00

1
Out of stock

8

CASE, CHAIN INNER LOWER

61314-43F00

1
Out of stock

9

SCREW

09139-06083

6
Out of stock

10

ABSORBER ASSY, RR SHOCK (RED)

62100-43F00-37W

1
Out of stock

11

BOLT | UPPER

09103-10019

1
Out of stock

12

BOLT | LOWER

09103-10318

1
Out of stock

13

NUT | LOWER This part replaces 08319-31103.

08319-3110A

1
Out of stock

14

BUFFER, CHAIN TOUCH DEFENSE

61273-43F00

1
Out of stock
