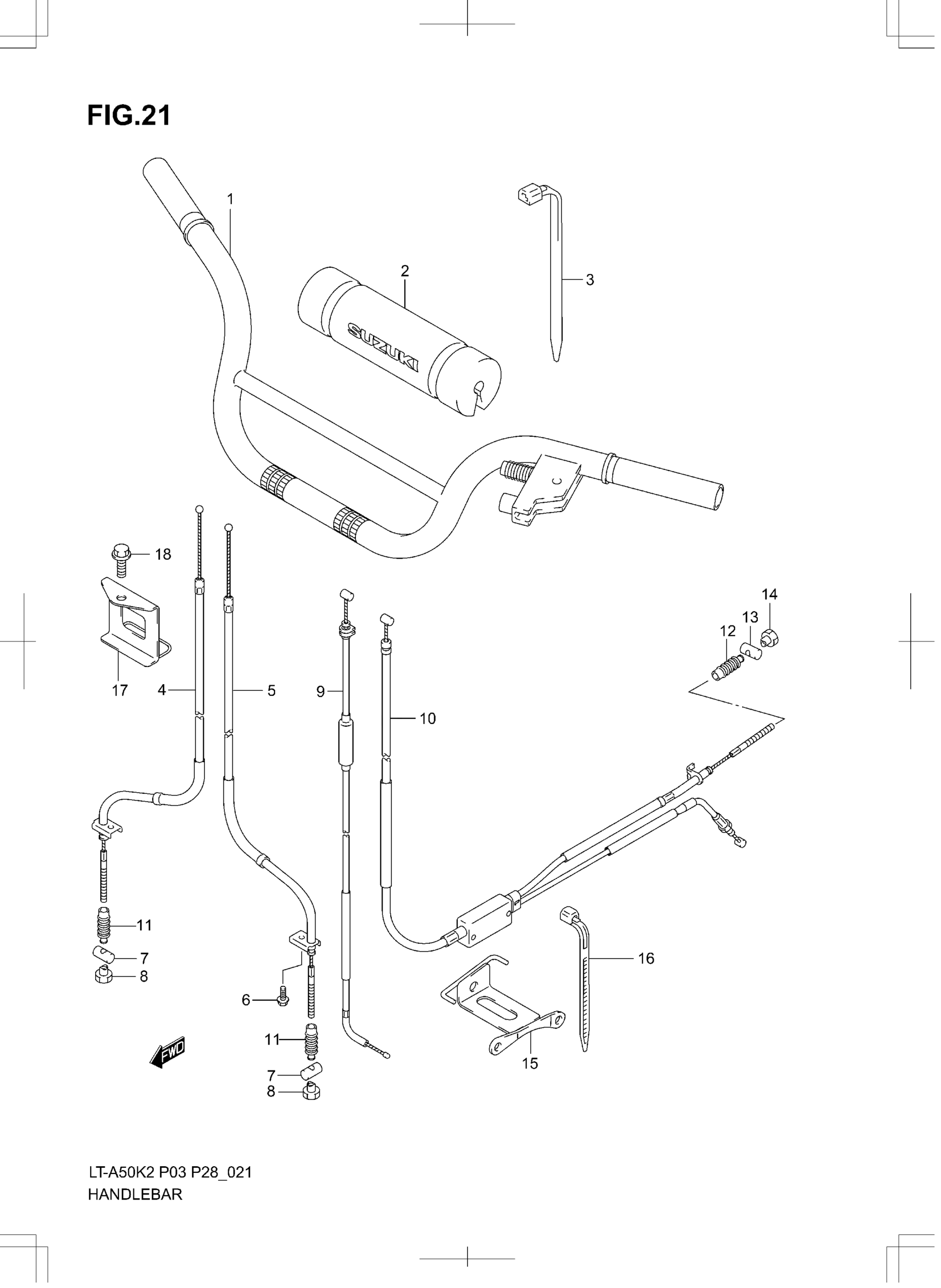

Suzuki LT-A50 (2005) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-43F00-291

Unavailable

2

PAD, CROSS

56172-04600

$13.59

3

CLAMP

09407-18401

$1.93

4

CABLE ASSY, FRONT BRAKE RH

58110-43F00

$64.32

5

CABLE ASSY, FRONT BRAKE LH

58120-43F00

$64.32

6

BOLT

09106-06076

$3.12

7

PIN

09209-10001

$1.37

8

NUT

09150-05101

$2.87

9

CABLE ASSY, THROTTLE | MODEL K2/K3/K4 This part replaces 58300-43F00.

58300-43F10

$13.57

9

CABLE ASSY, THROTTLE | MODEL K5

58300-43F10

$13.57

10

CABLE,RR BRAKE This part replaces 58510-43F00.

58510-43F01

$52.68

11

BOOT,BRAKE CABLE

58553-43F00

$15.11

12

BOOT,FR BRAKE CABLE

58553-43F10

$8.44

13

PIN

09209-10001

$1.37

14

NUT

09150-05101

$2.87

15

PLATE,RR BRAKE This part replaces 58570-43F00.

58570-43F0V

Unavailable

16

CLAMP

09407-14403

$2.31

17

GUIDE, FR BRAKE CABLE

58620-43F00

Unavailable

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01
