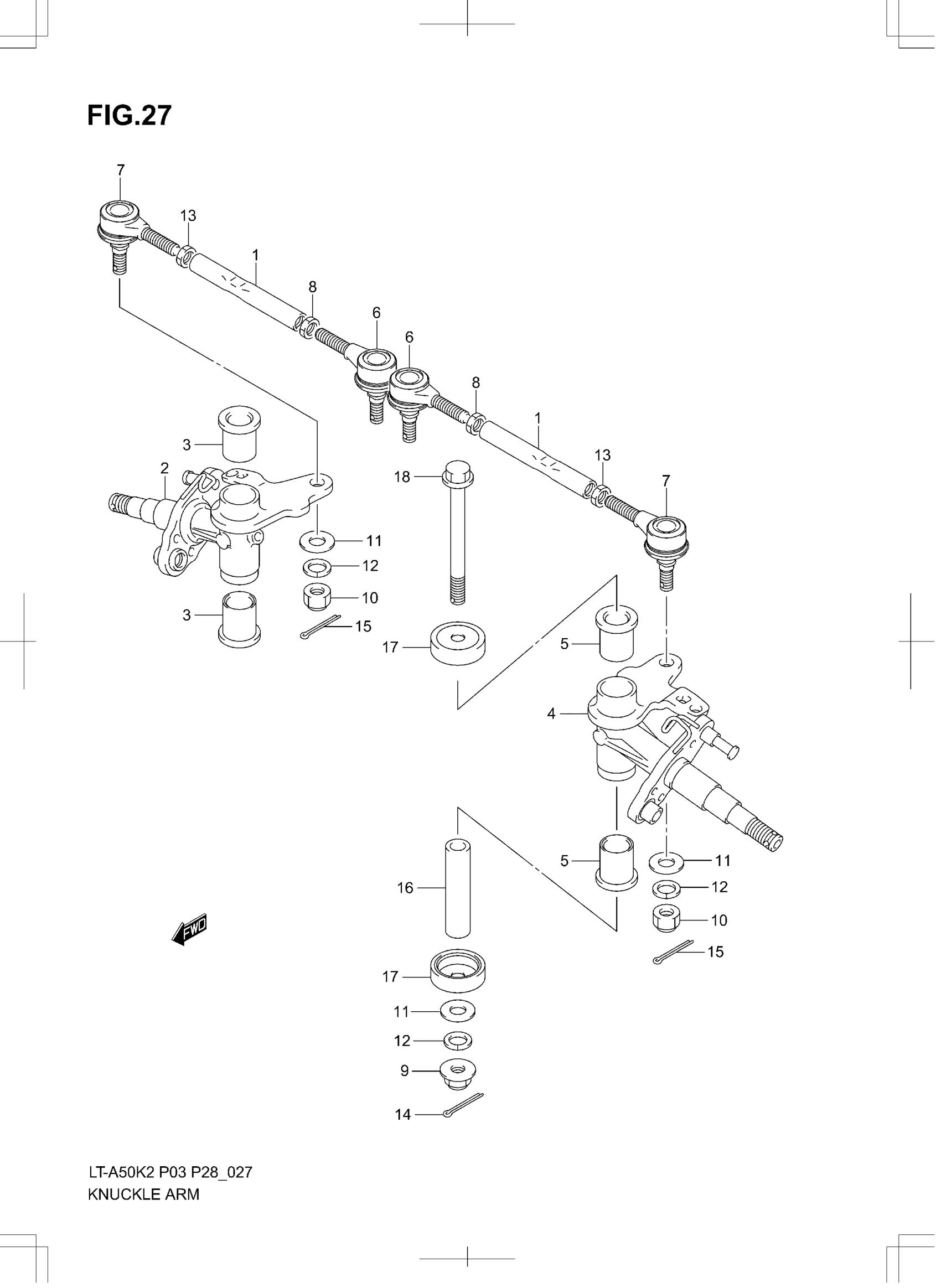

Suzuki LT-A50 (2005) KNUCKLE ARM Diagram

#

Description
Price

1

TIE-ROD,STEERING

51281-43F00

$31.90

2

ARM,KNUCKLE,R | Includes Item(s) 3

51230-43F00

Unavailable

3

BUSH

51236-40B00

$17.46

4

ARM,KNUCKLE,L | Includes Item(s) 5

51240-43F00

Unavailable

5

BUSH

51236-40B00

$17.46

6

END,ROD,R This part replaces 51260-02C00.

51260-43G00

$106.48

7

END,ROD,L This part replaces 51270-43F00.

51270-43G00

$108.50

8

NUT (RH THREAD)

09140-10043

$2.92

9

NUT

09159-10027

$2.84

10

NUT, REAR This part replaces 08319-21103.

08319-2110A

$2.29

11

WASHER

09160-10126

$2.13

12

LOCK WASHER

09162-10008

$2.80

13

NUT, TIE ROD (LH THREAD)

09140-10027

$1.54

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

16

SPACER,KING PIN

51251-40B00

$25.08

17

DUST SEAL

51255-18900

$4.09

18

BOLT This part replaces 51256-40B00.

09101-10044

$12.82
