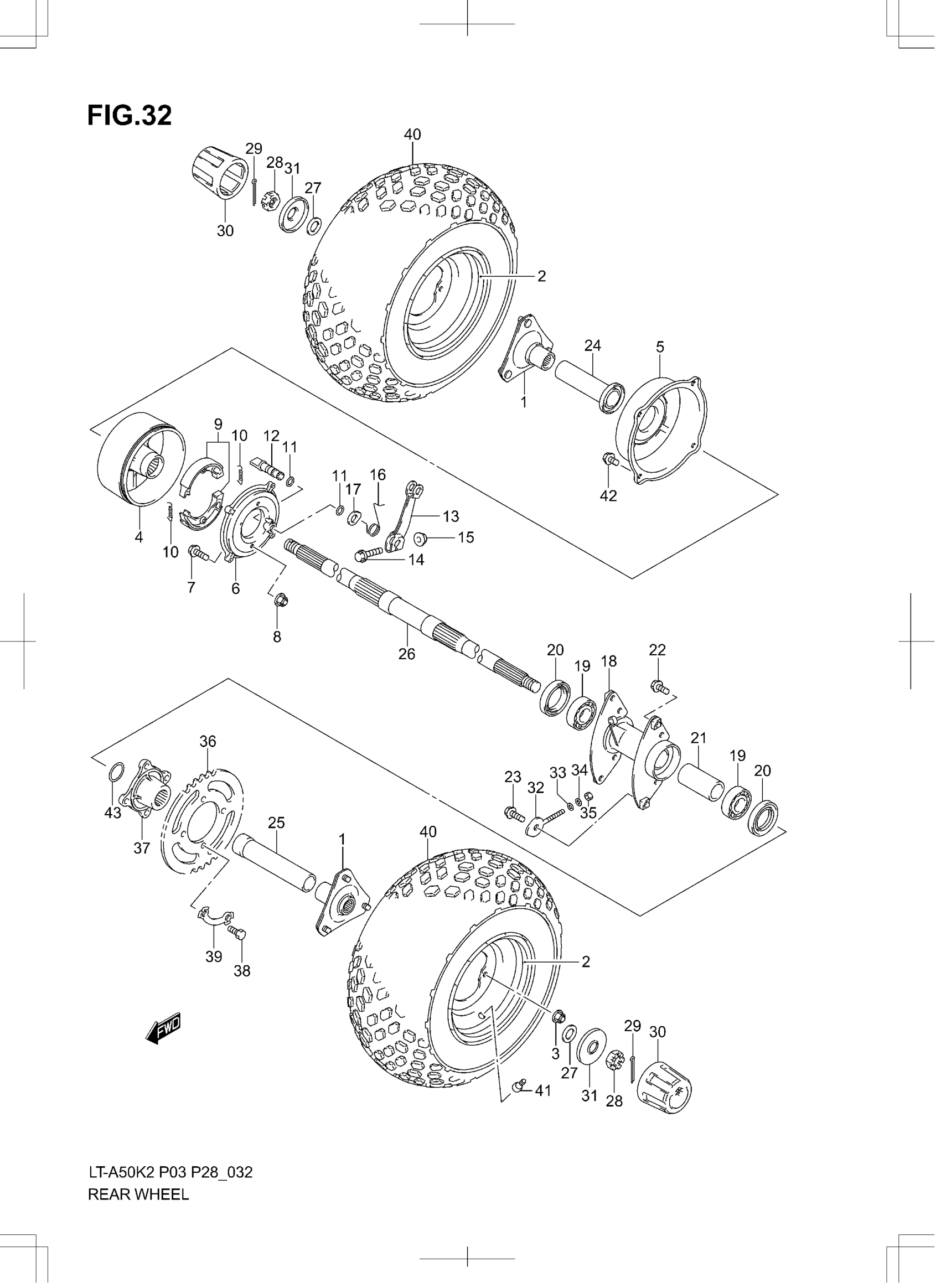

Suzuki LT-A50 (2005) REAR WHEEL Diagram

HUB,REAR WHEEL

64110-43F00

$163.86

RIM, REAR WHEEL (7X6.0AT) (SILVER)

65310-43F00-13L

$237.43

NUT

08319-31087

$2.38

DRUM,REAR BRAKE

64121-43F00

$178.10

COVER,REAR BRAKE DRUM

64123-43F00

Unavailable

PANEL, REAR BRAKE ANCHOR

64210-43F00

Unavailable

BOLT

09119-08091

Unavailable

NUT

08319-31087

$2.38

SHOE SET, BRAKE

54401-43810

$30.93

.SPRING (L:37.8)

09443-07044

$2.84

O RING

09280-12012

$4.32

CAM, BRAKE

64441-43F00

Unavailable

LEVER, BRAKE CAM

64451-43F00

Unavailable

BOLT

09103-06135

$2.77

NUT This part replaces 08316-10063.

08316-1006B

$2.57

SPRING, BRAKE CAM LEVER

64484-43F00

$10.17

PLATE,BRAKE LINING INDICATOR

64492-43F00

Unavailable

HOUSING, AXLE BEARING

64720-43F00

Unavailable

BEARING This part replaces 09262-28043.

09262-28063

$20.10

OIL SEAL

09283-35005

$10.33

SPACER, AXLE BEARING

64731-43F00

Unavailable

BOLT This part replaces 01580-08203.

01580-0820A

$3.58

BOLT This part replaces 01580-08253.

01580-0825A

$3.47

SPACER, AXLE RH

64740-43F00

Unavailable

SPACER, AXLE LH

64751-43F00

Unavailable

AXLE, REAR

64711-43F00

Unavailable

WASHER,REAR AXLE

64723-02410

$5.10

NUT, HUB This part replaces 08314-40163.

08314-4016A

$3.59

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.41

CAP, WHEEL CENTER

54725-18A00

$9.84

HOLDER, CAP

64726-40B00

$4.53

ADJUSTER, CHAIN

61411-04600

$4.85

.WASHER This part replaces 08322-01063.

08322-0106B

$2.31

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.89

NUT This part replaces 08310-00063.

08310-0006A

$1.89

SPROCKET, REAR (NT:37)

64511-43F00

$51.85

FLANGE,REAR SPROCKET MTG

64611-43F00

Unavailable

BOLT

09100-08298

$7.70

WASHER

09169-08012

$2.77

TIRE (AT16X8-7) This part replaces 55110-43F00.

55110-43F10

$211.57

VALVE ASSY, WHEEL RIM

43130-24A00

$8.46

BOLT This part replaces 01547-06103.

01547-0610B

$2.56

RING,SNAP

09380-23001

Unavailable
