Description

Price

1

HUB,FRONT WHEEL

54110-43F00

$130.17

2

BEARING, INNER (17X40X12)

09262-17031

$36.57

3

DUST SEAL, FRONT HUB INNER This part replaces 09283-22012.

09283-22028

$9.25

4

BEARING, OUTER (15X35X11)

09262-15024

$22.40

5

OIL SEAL (20X35X5) This part replaces 09283-20038.

09283-20057

$5.51

6

SPACER, FRONT HUB

54731-40B00

$5.43

7

SPACER,FRONT AXLE

54741-40B00

$5.43

8

WASHER This part replaces 08322-01143.

08322-0114A

$1.83

9

NUT, HUB This part replaces 08314-40143.

08314-4014B

$3.89

10

PIN This part replaces 04111-30308.

04111-3030A

$1.37

11

CAP, WHEEL, CENTER

54725-18A00

$9.41

12

RIM, FRONT WHEEL (7X6.0AT) (SILVER)

55310-43F00-13L

$237.43

13

WASHER, FRONT WHEEL

08322-01087

$1.86

14

NUT, WHEEL RIM

08319-31087

$2.31

15

TIRE (AT16X8-7) This part replaces 55110-43F00.

55110-43F10

$211.57

16

VALVE ASSY, WHEEL TR413

43130-24A00

$8.10

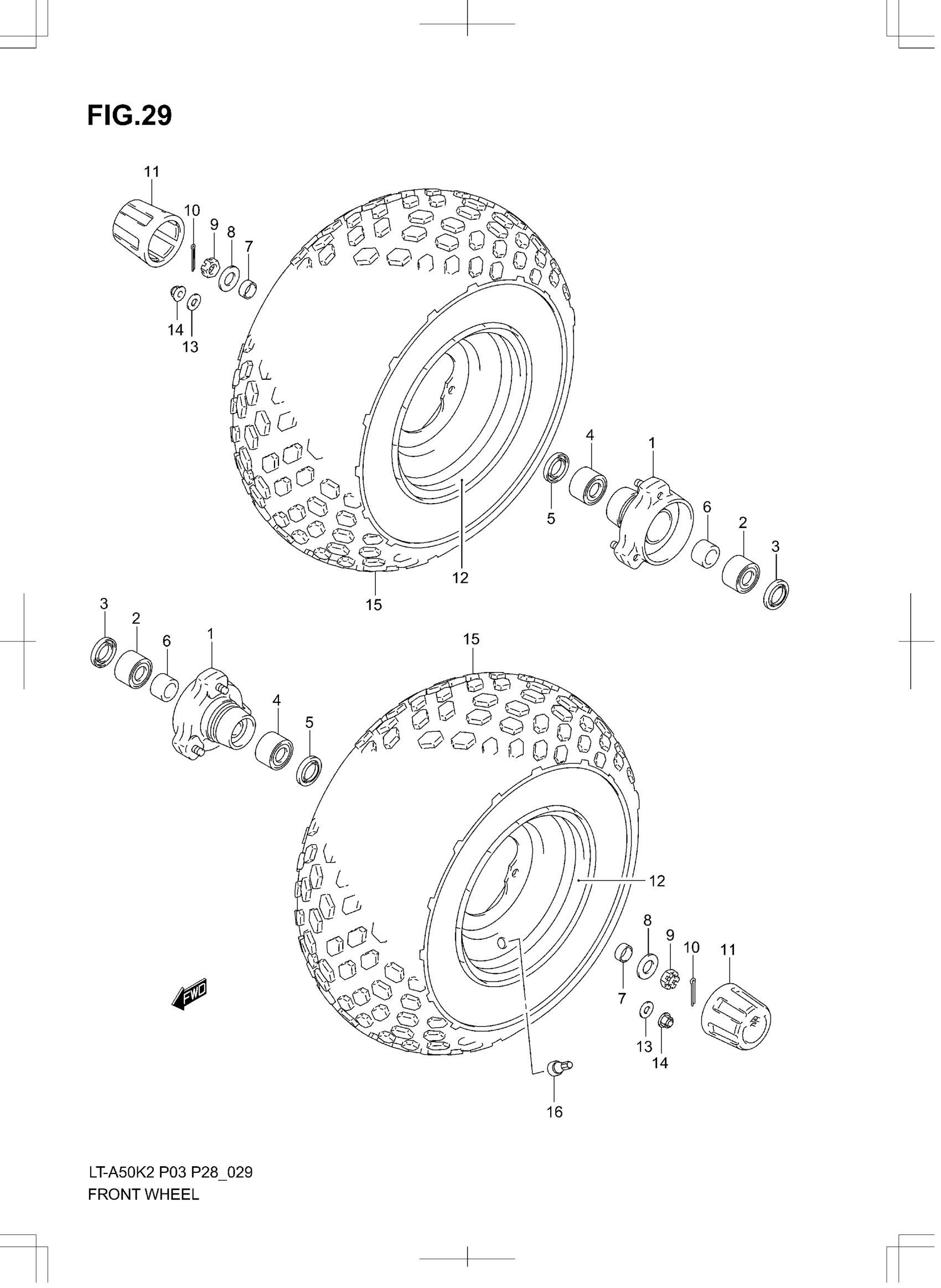

Suzuki LT-A50 (2005) FRONT WHEEL Diagram
