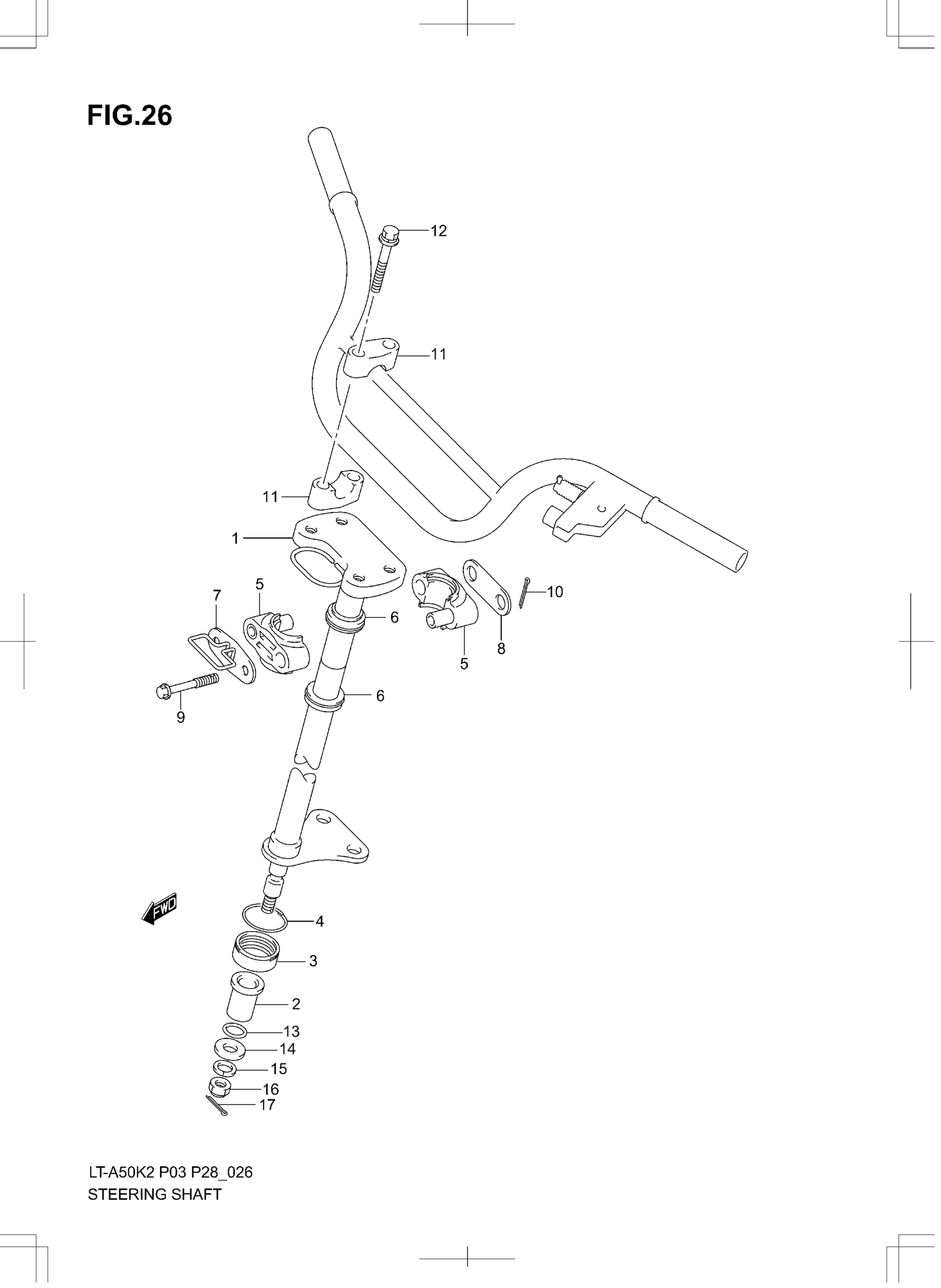

Suzuki LT-A50 (2005) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT,STEERING

51650-43F00

$216.27

2

BUSH,STEERING SHAFT,LOWER

51661-40B00

$14.87

3

DUST SEAL, STEERING SHAFT

51662-18900

$7.24

4

CLIP, DUST SEAL

09380-31002

$2.65

5

HOLDER,STEERING SHAFT

51670-18902

$20.33

6

DUST SEAL, STEERING

51678-18900

$9.17

7

REINF STEERING HOLDER

51680-43F00

Unavailable

8

REINFORCEMENT, HOLDER

51681-18900

Unavailable

9

BOLT (8X60)

09103-08085

$7.51

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

11

HOLDER, HANDLEBAR

56211-04200

$20.97

12

BOLT

01264-08507

Unavailable

13

O RING (ID:13.8,D:2.50)

09280-14011

$4.44

14

WASHER This part replaces 09160-10132.

09160-10128-XC0

$2.74

15

LOCK WASHER

09162-10008

$2.88

16

NUT, REAR This part replaces 08319-21103.

08319-2110A

$2.38

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25
