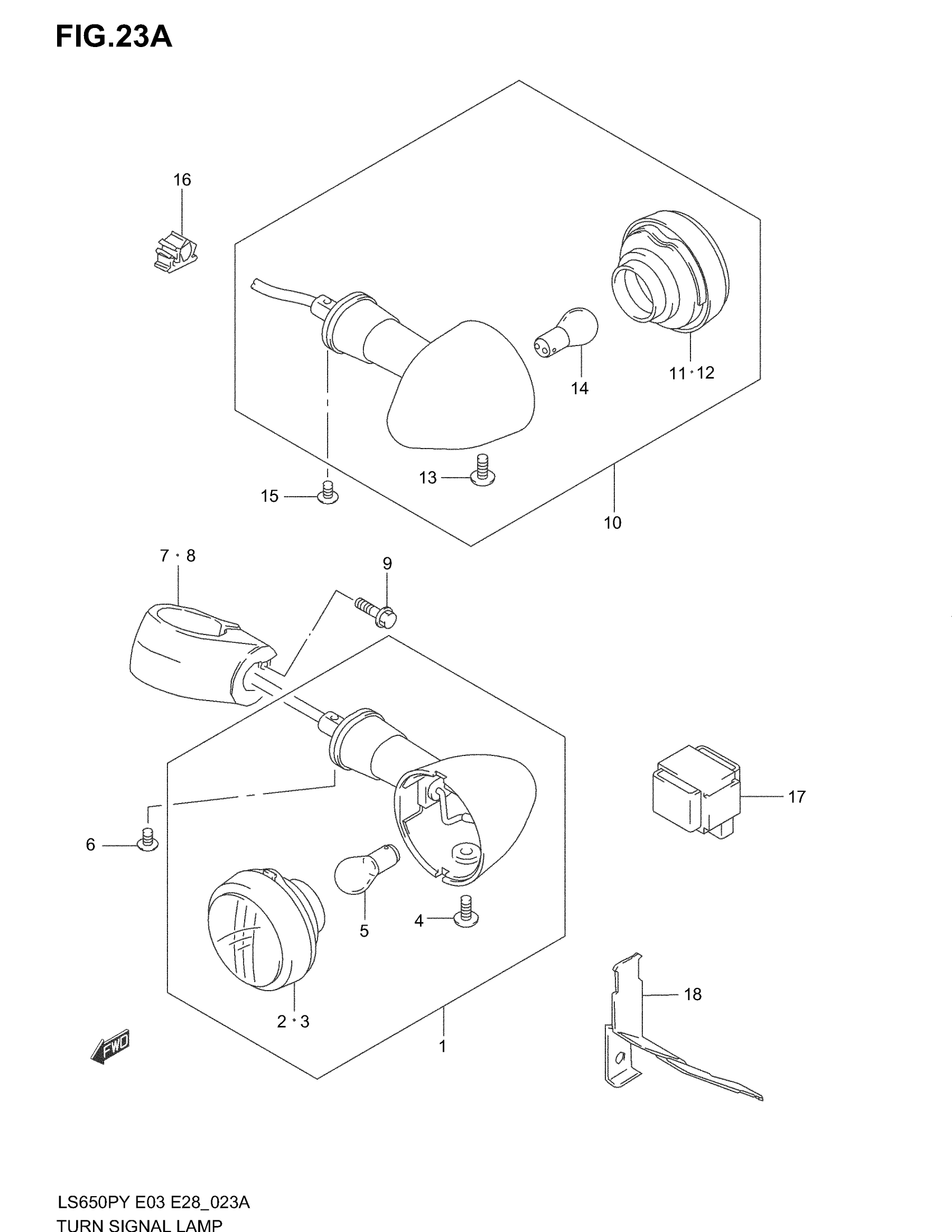

Suzuki LS650P (2004) TURN SIGNAL LAMP (MODEL K4) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN, RH

35601-38AB0

$157.43

1

LAMP ASSY, FRONT TURN, LH | Includes Item(s) 2 - 5

35602-38AB0

$152.27

2

LENS | FOR RH

35610-38AA0

$28.79

3

LENS | FOR LH

35630-38AA0

$29.21

4

SCREW

35623-39AA0

Unavailable

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

6

SCREW

02142-06107

Unavailable

7

BRACKET, RH

35671-24B00

Unavailable

8

BRACKET, LH

35681-24B00

$69.02

9

BOLT

01547-05257

$2.77

10

LAMP ASSY, REAR TURN, RH

35603-38AA0

$103.46

10

LAMP ASSY, REAR TURN, LH | Includes Item(s) 11 - 14

35604-38AA0

$103.46

11

LENS | FOR RH

35630-38AA0

$29.21

12

LENS | FOR LH

35610-38AA0

$28.79

13

SCREW

35623-38AA0

$4.67

14

BULB (12V,21W)

09471-12045

$2.95

15

SCREW

02142-06167

$1.37

16

CLAMP This part replaces 09403-07315.

09403-04310

$5.82

17

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$66.55

18

BRACKET, TURN SIGNAL RELAY

38621-24B10

Unavailable
