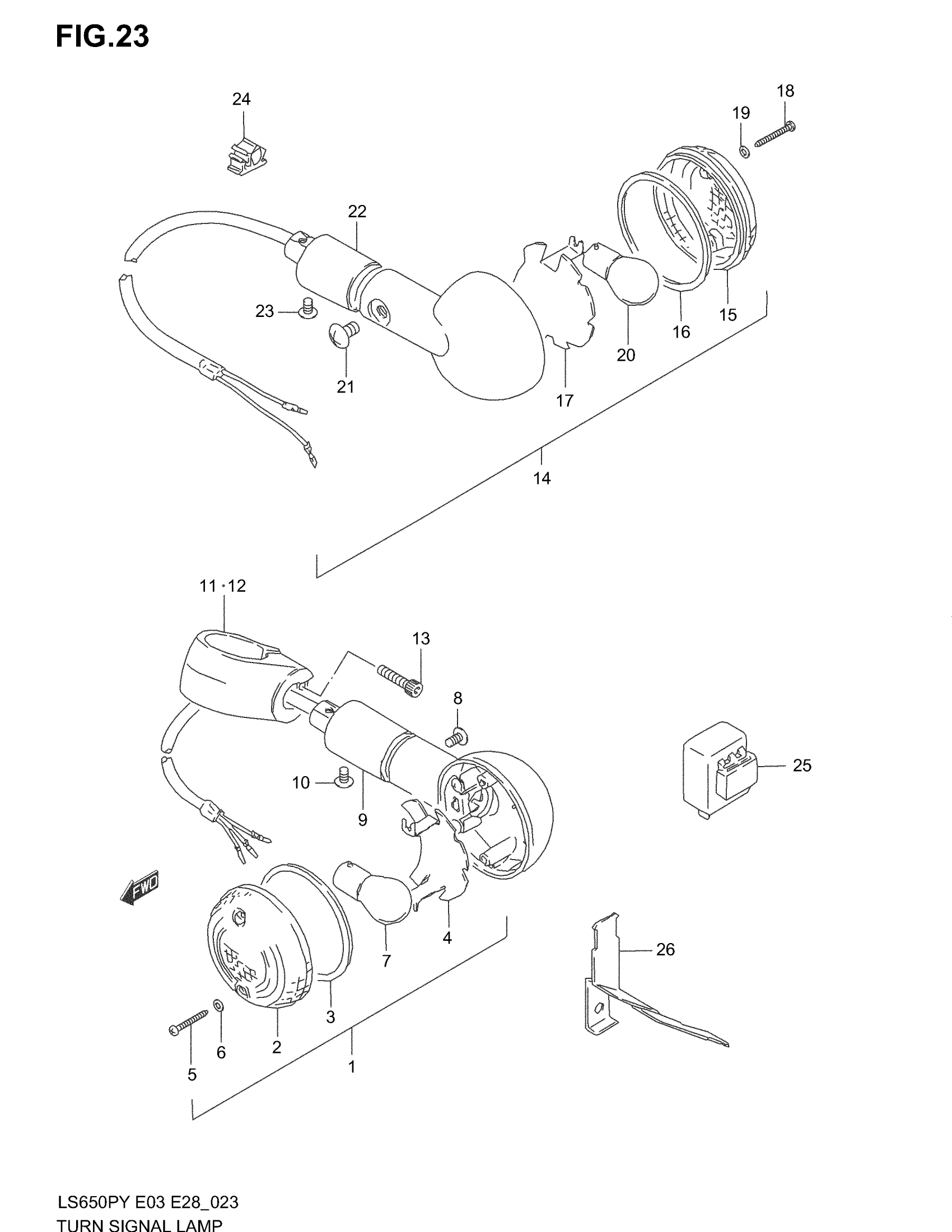

Suzuki LS650P (2004) TURN SIGNAL LAMP (MODEL T/V/W/Y/K1/K2/K3) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | Includes Item(s) 2 - 9

35601-38A32-999

Unavailable

2

LENS

35612-38A30

$20.22

3

GASKET

35613-38A00

$10.99

4

REFLECTOR

35624-39A00

Unavailable

5

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

6

GASKET

35627-43010

$2.29

7

BULB (12V,21/8W)

09471-12128

$6.08

8

SCREW

35623-38A01

$4.75

9

STAY, TURN SIGNAL LAMP

35619-38A01

$45.50

10

SCREW

02142-06107

Unavailable

11

BRACKET, RH

35671-24B00

Unavailable

12

BRACKET, LH

35681-24B00

$69.02

13

BOLT

01547-05257

$2.77

14

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 15 - 22

35603-38A02-999

Unavailable

15

LENS

35612-38A01

$13.02

16

GASKET

35613-38A00

$10.99

17

REFLECTOR

35624-39A00

Unavailable

18

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

19

GASKET

35627-43010

$2.29

20

BULB (12V,21W)

09471-12045

$2.95

21

SCREW

35623-38A01

$4.75

22

STAY, TURN SIGNAL LAMP

35619-38A01

$45.50

23

SCREW

02142-06167

$1.37

24

CLAMP This part replaces 09403-07315.

09403-04310

$5.82

25

RELAY, TURN SIGNAL | MODEL T/V

38610-45D01

$88.43

25

RELAY ASSY | MODEL W/X/Y/K1/K2/K3 This part replaces 38610-26E00.

38610-26E01

$66.55

26

BRACKET, TURN SIGNAL RELAY

38621-24B10

Unavailable
