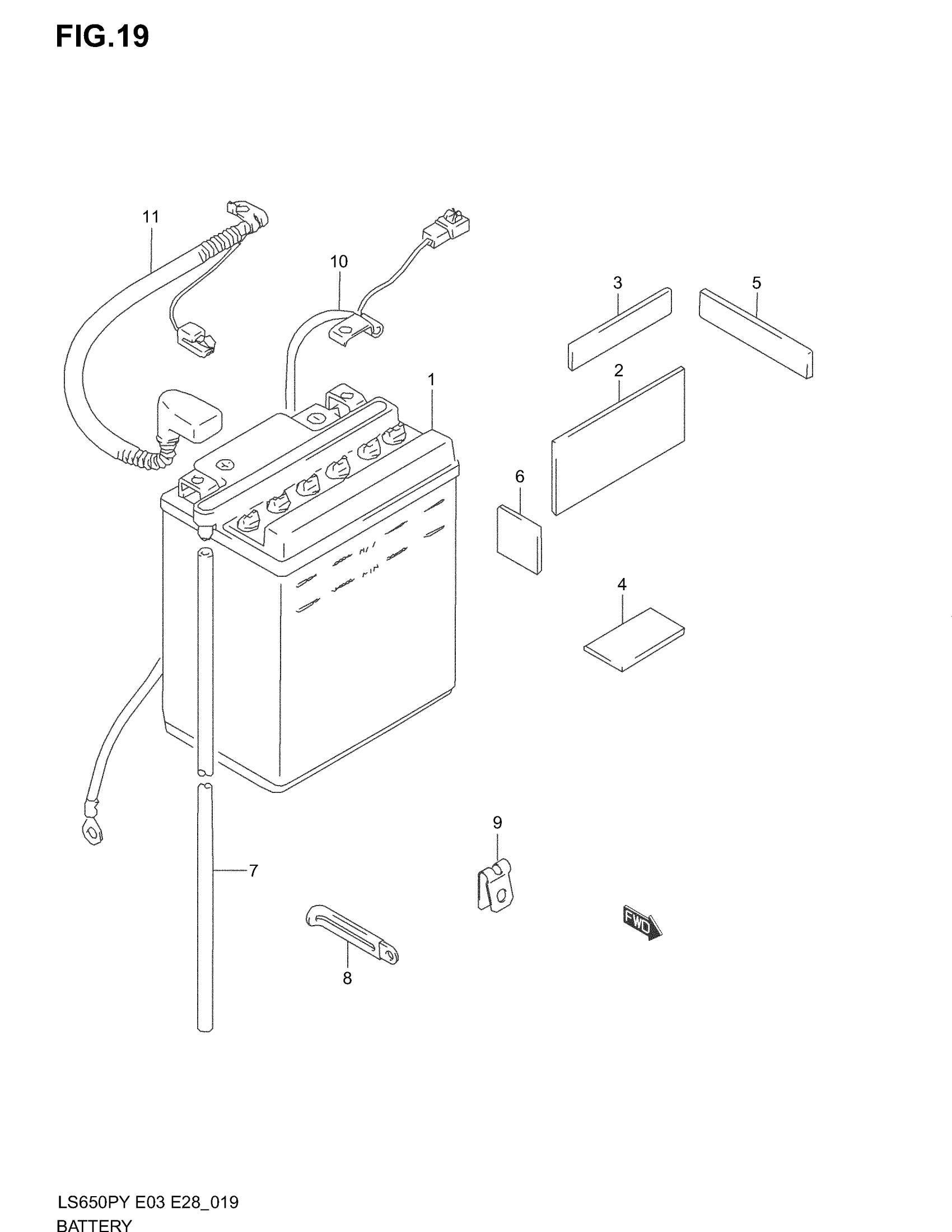

Suzuki LS650P (2004) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,14AH) | MODEL T/V E3 This part replaces 33610-05A30.

33610-05A10

$103.43

1

BATTERY ASSY (12V,14AH) | MODEL T/V E28

33610-05A10

$103.43

1

BATTERY ASSY (12V,14AH) | MODEL W/X/Y/K1/K2/K3/K4

33610-05A10

$103.43

2

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (50X115)

33651-37000

$4.09

3

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (20X90)

33651-37000

$4.09

4

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (30X50)

33651-37000

$4.09

5

PROTECTOR (80X80X2.0) | CUT AS REQUIRED PROFILE (20X80)

33652-07D00

$5.17

6

PROTECTOR (50X50X5.0) | CUT AS REQUIRED PROFILE (30X30)(50X50)

33652-20C00

$2.80

7

HOSE,BATTERY EX | L:780!400 This part replaces 33680-16A10.

33680-16A11

$7.65

8

CLAMP, HOSE (L:45)

09404-06429

$1.82

9

CLAMP | MODEL K1

09403-06401

$3.08

10

LEAD WIRE, BATTERY (-)

33860-24B00

$25.55

11

LEAD WIRE, BATTERY (+)

33870-24B00

$26.80
