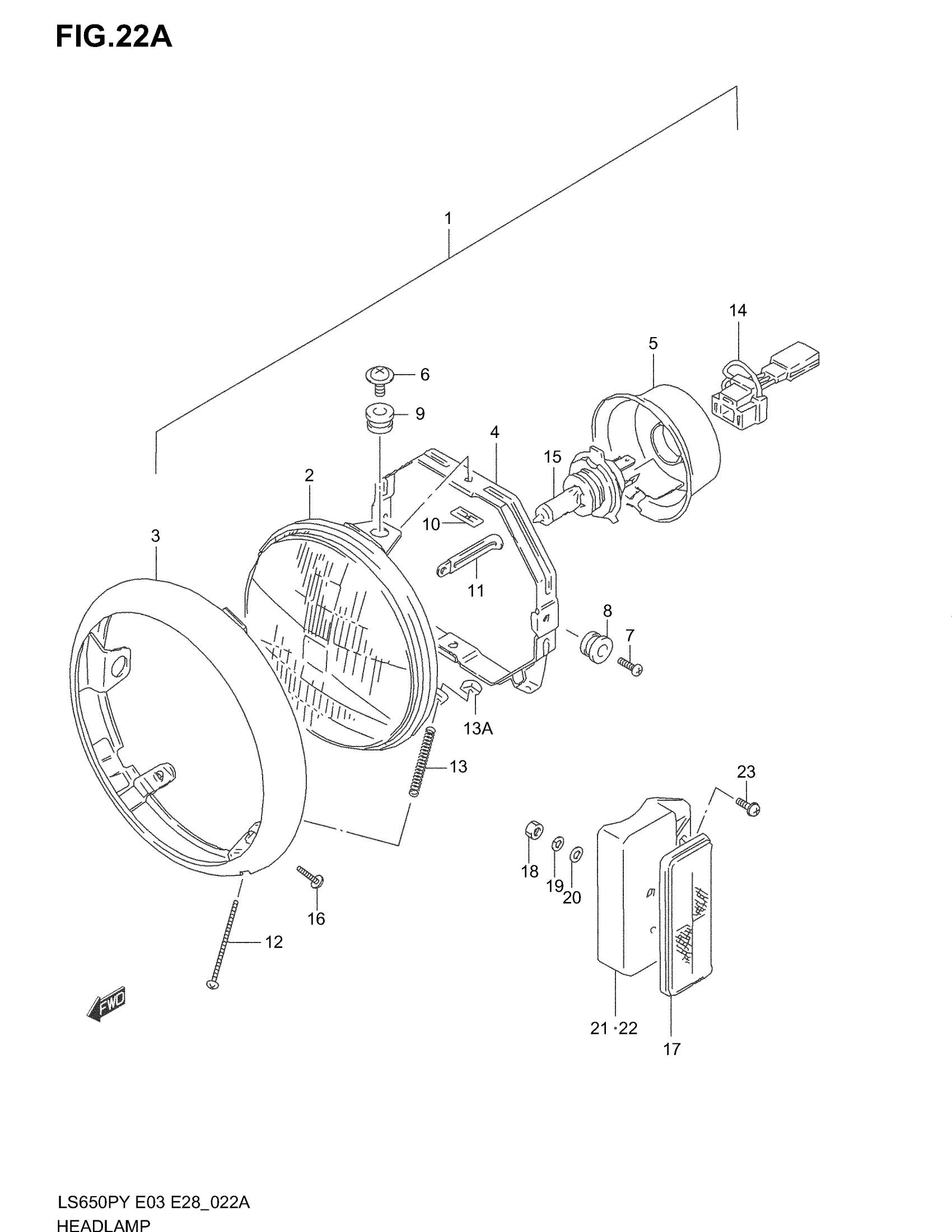

Suzuki LS650P (2004) HEADLAMP (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL K1 This part replaces 35100-38A60-999.

35100-38A62-999

$308.58

1

HEADLAMP ASSY | MODEL K2/K3/K4; Includes Item(s) 2 - 14 This part replaces 35100-38A61-999.

35100-38A62-999

$308.58

2

UNIT, LAMP

35121-38A60

$171.60

3

RIM

35111-38A60

$54.45

4

RING, MOUNTING

35130-38A00

$19.68

5

COVER

35173-13E10

$27.95

6

SCREW

35136-38A60

Unavailable

7

.SCREW MOUNTING

35136-38A00

$4.53

8

CUSHION

35139-45230

$2.25

9

CUSHION

35139-38A60

$4.62

10

NUT

35155-38A60

$4.70

11

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

12

SCREW, ADJUST

35151-38A00

$4.10

13

SPRING

35154-31300

$3.49

13A

.NUT

35152-45600

$3.92

14

SOCKET

36853-38A00

$15.70

15

BULB (12V,60/55W)

09471-12060

$22.69

16

SCREW, HEAD LAMP

02142-05127

$1.97

17

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$20.13

18

NUT This part replaces 08310-00053.

08310-0005A

$1.83

19

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.83

20

WASHER

09160-05037

$1.49

21

BRACKET, FRONT SIDE RH

35956-24B00

Unavailable

22

BRACKET, FRONT SIDE LH

35957-24B00

Unavailable

23

SCREW

09136-05026

Unavailable
