1984 Kawasaki KZ750-K2 (Canada Only) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

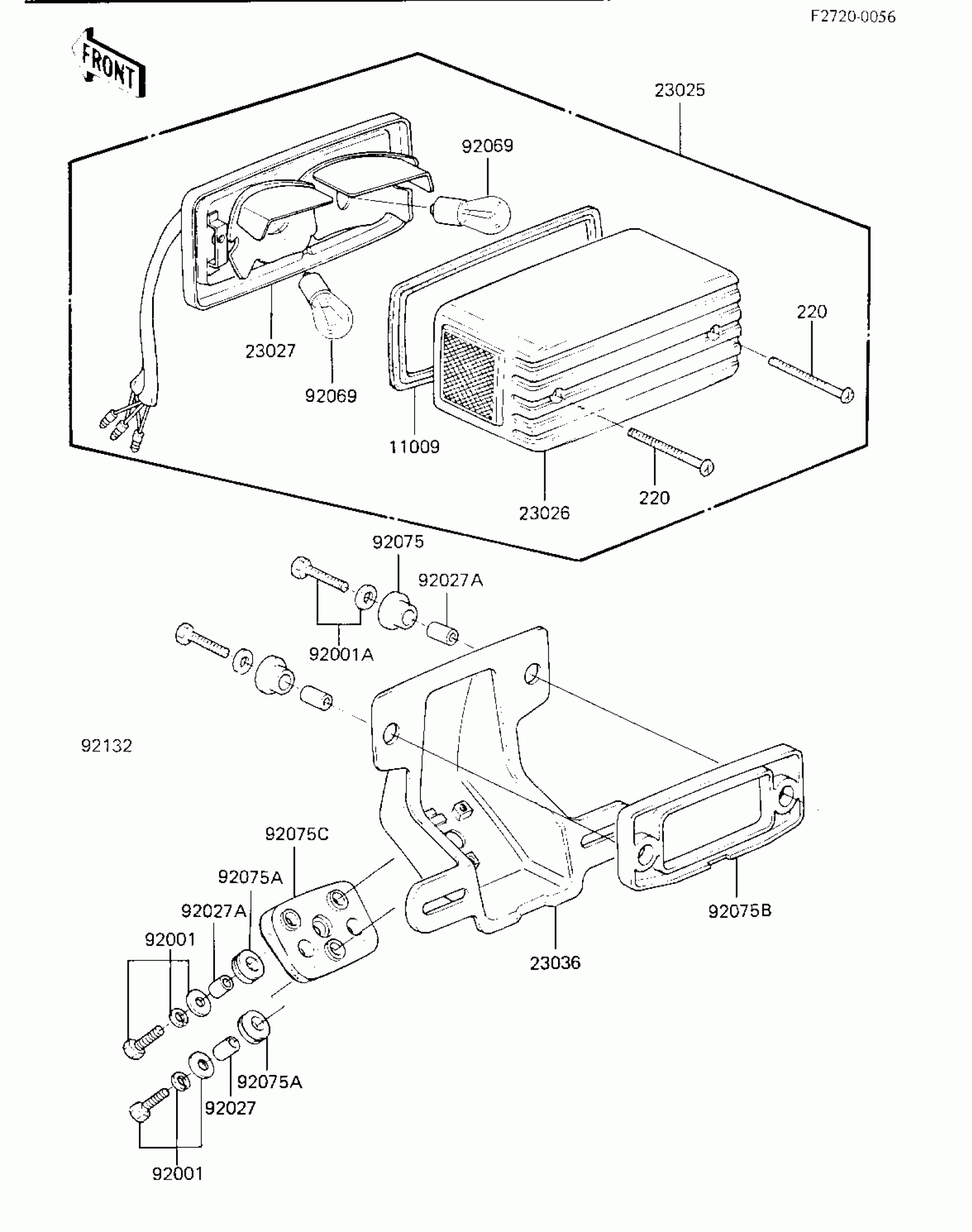

1984 Kawasaki KZ750-K2 (Canada Only) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP

11009-1221

1
Out of stock

23025

LAMP-TAIL

23025-1025

1
Out of stock

23026

LENS,TAIL LAMP

23026-1021

1
Out of stock

23027

BODY-COMP-TAIL LAMP

23027-1013

1
Out of stock

23036

BRACKET-TAIL LAMP

23036-1033

1
Out of stock

92001

BOLT,6X25

92002-1137

1
Out of stock

92001A

BOLT

92132-001

1
Out of stock

92027

COLLAR,6.8X10X14.5

92027-156

1
Out of stock

92027A

COLLAR

92027-169

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1
Out of stock

92075

DAMPER RUBBER

92075-1092

1
Out of stock

92075A

DAMPER,FENDER

92075-121

1
Out of stock

92075B

DAMPER

92075-1282

1
Out of stock

92075C

DAMPER

92075-1283

1
Out of stock

220

SCREW-PAN-CROS

220C0465

1
Out of stock
