1984 Kawasaki KZ750-K2 (Canada Only) Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

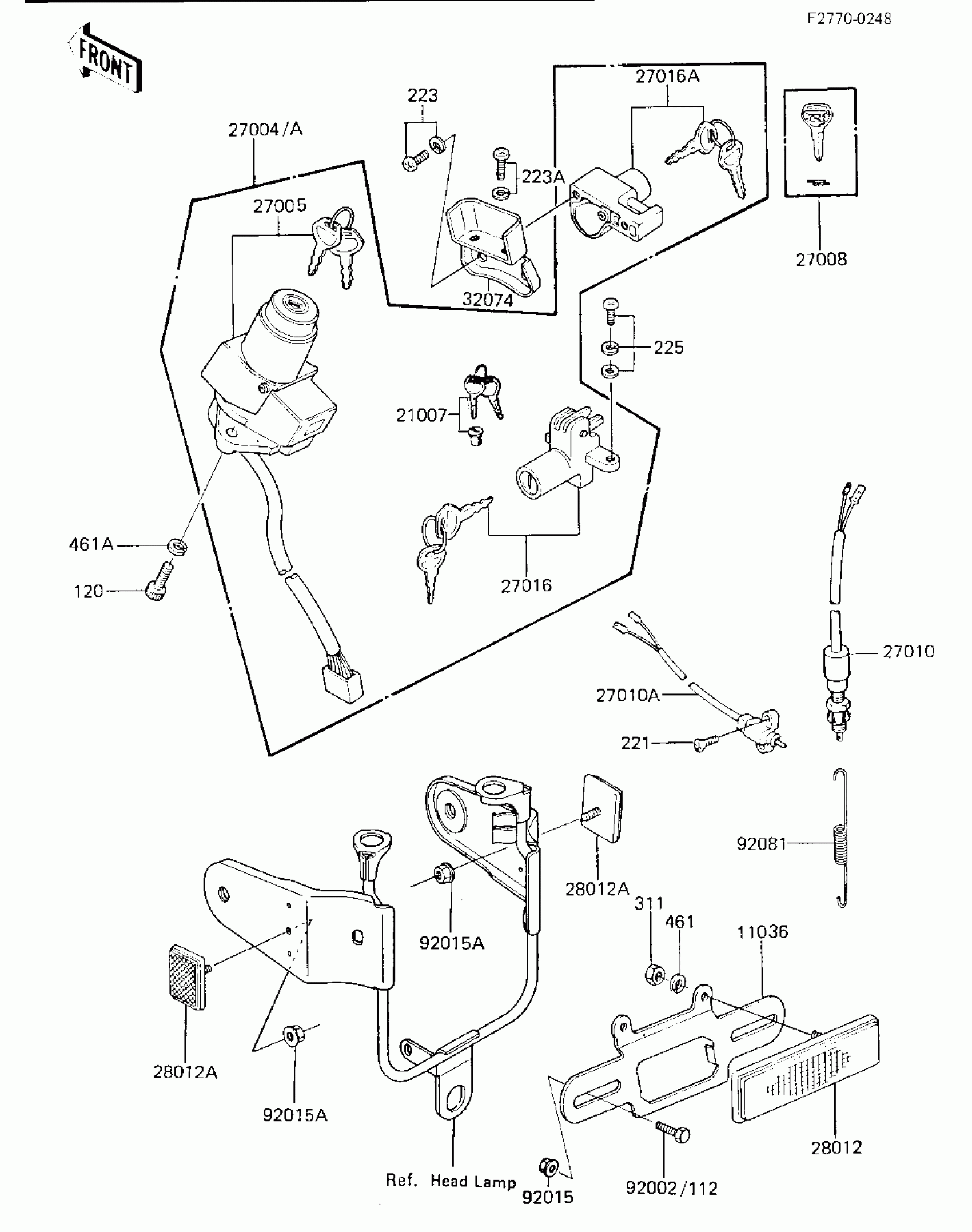

1984 Kawasaki KZ750-K2 (Canada Only) Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET,REFLECTOR,RR

11036-1150

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5005

1
Out of stock

27004A

SWITCH-ASSY

27004-5225

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5030

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-1019

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1065

1
Out of stock

27016

LOCK-ASSY,SEAT

27016-5010

1
Out of stock

27016A

LOCK ASSY,HELMET

27016-5038

1
Out of stock

28012

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

28012A

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

32074

BRACKET-LOCK,HELMET L

32074-1024

1
Out of stock

92002

BOLT-UPSET,6X12

112G0612

1
Out of stock

92015A

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92081

SPRING,BRAKE LAMP SWITCH

27011-007

1
Out of stock

120

UNAVAILABLE IN PRICE BOOK

12000616

1
Out of stock

221

SCREW-CSK-CROS

221C0520

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0508

1
Out of stock

223A

SCREW-PAN-WS-CROS

223B0612

1
Out of stock

225

SCREW-PAN-WP-CROS

225B0614

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
