1984 Kawasaki KZ750-K2 (Canada Only) Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

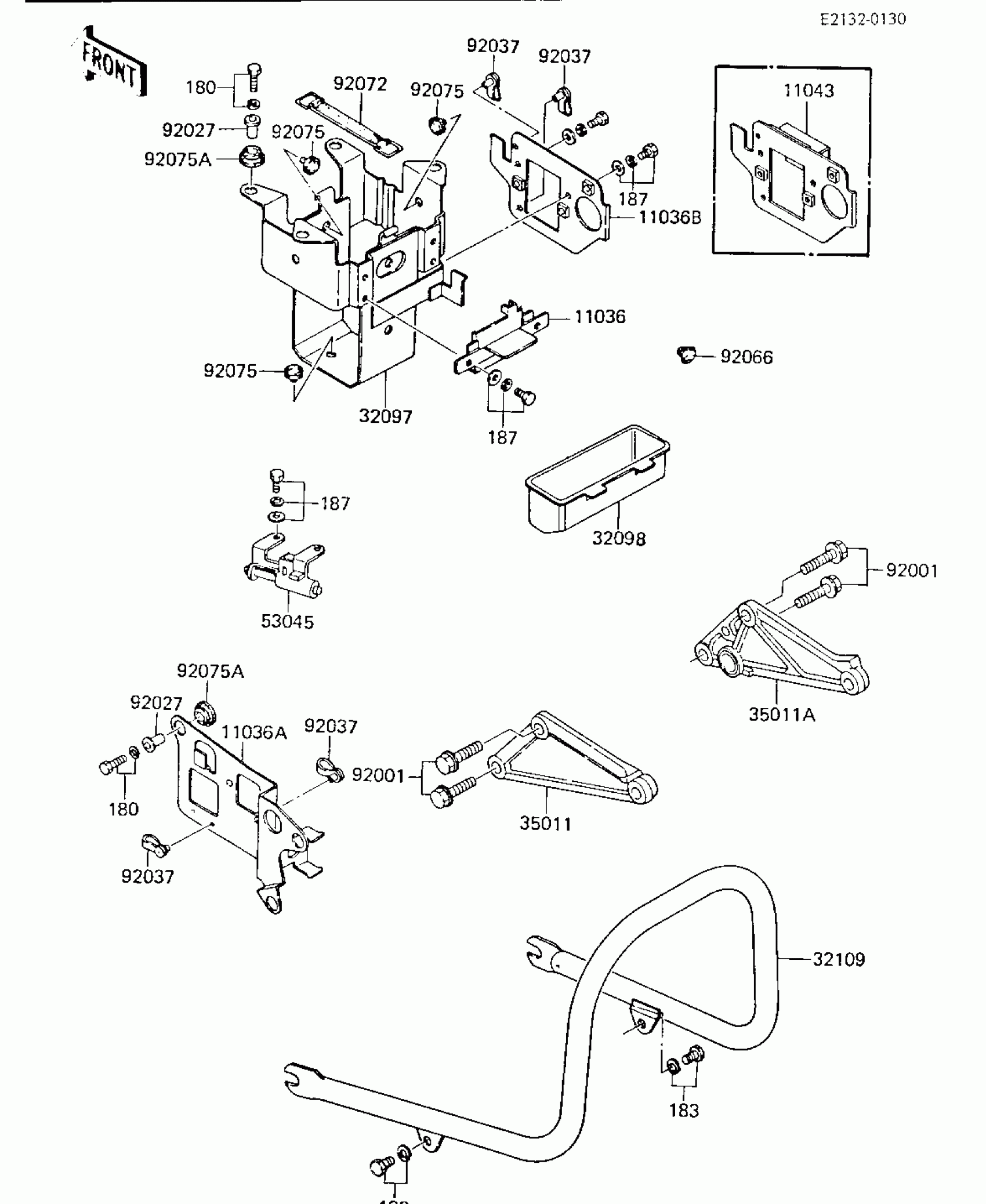

1984 Kawasaki KZ750-K2 (Canada Only) Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A

11036-1161

1
Out of stock

11036A

BRACKET-A,ELECTRIC BA

11036-1706

1
Out of stock

11043

BRACKET (Canada)

11043-1685

1
Out of stock

32097

CASE-BATTERY

32097-1060

1
Out of stock

32098

CASE,TOOL

32098-028

1
Out of stock

32109

GRIP-FRAME

32109-1038

1
Out of stock

35011

STAY,MUFFLER,LH

35011-1076

1
Out of stock

35011A

STAY,MUFFLER,RH

35011-1077

1
Out of stock

53045

HOOK ASSY,HELMET

53045-1001

1
Out of stock

92001

BOLT,FLANGED,8X28

92001-1095

1
Out of stock

92027

COLLAR

92027-194

1
Out of stock

92037

CLAMP,SPEED,L=43

92037-1290

1
Out of stock

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

1
Out of stock

92072

BAND,L=100

92072-071

1
Out of stock

92075

DAMPER,RUBBER

92075-078

1
Out of stock

92075A

DAMPER

92075-277

1
Out of stock

180

BOLT-UPSET-WS

180B0622

1
Out of stock

183

BOLT 8X14

183B0814

1
Out of stock

187

BOLT 6X12

187B0612

1
Out of stock
