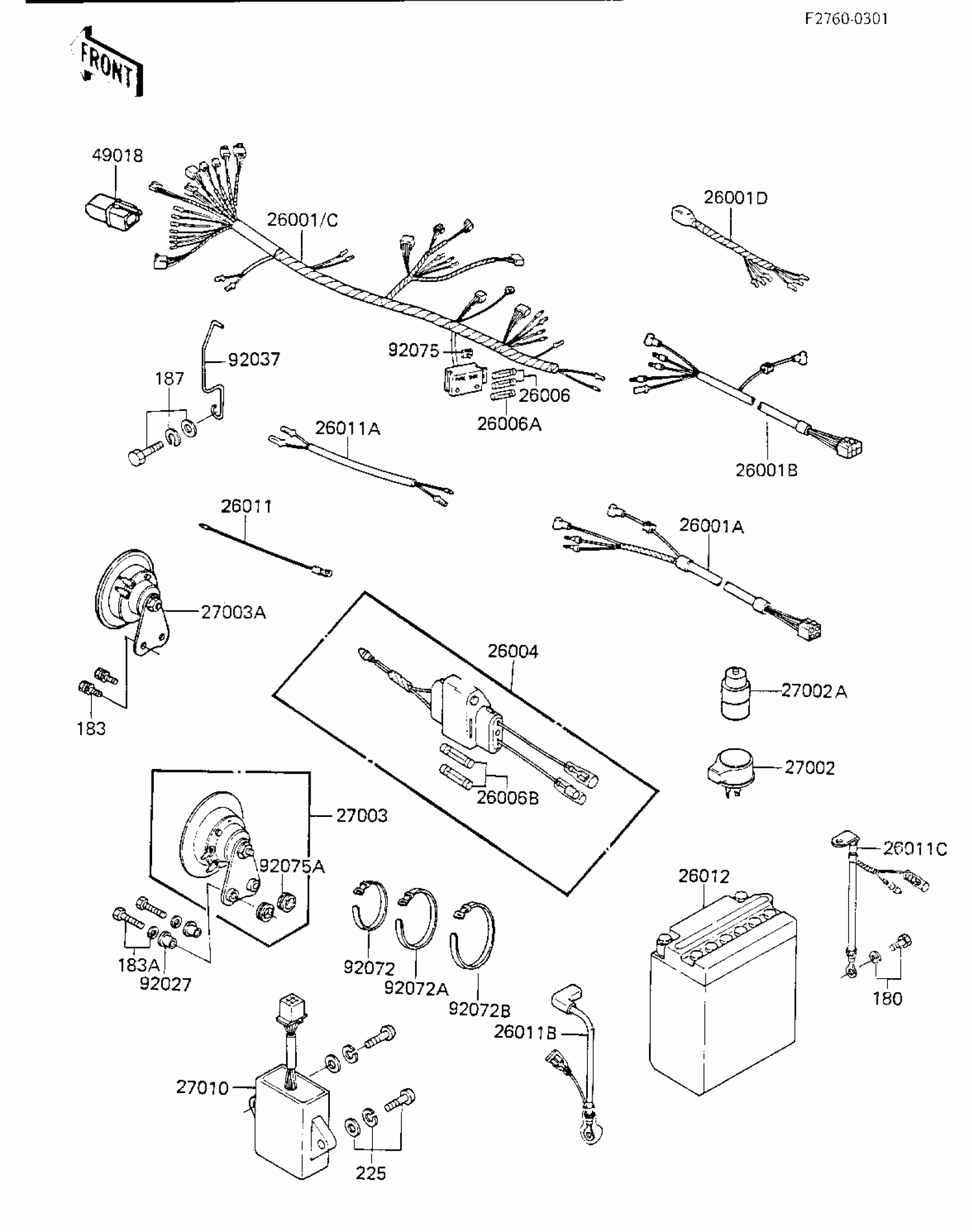

Kawasaki KZ750-K2 (Canada Only) CHASSIS ELECTRICAL EQUIPMENT Diagram

Description

Price

26001B

HARNESS,ENGINE (Canada)

26001-1663

Unavailable

26001C

HARNESS,MAIN (Canada)

26001-1664

Unavailable

26001D

WIRING HARNESS,REAR

26002-063

$27.49

26004

FUSE-ASSY,ACCESSORY

26004-1016

Unavailable

26006

FUSE,10A,L=25

26006-003

$3.59

26006A

FUSE,20A,L=25

26006-005

$3.86

26006B

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26011

LEAD WIRE,SIGNAL LAMP

26011-063

$6.56

26011A

WIRE-LEAD

26011-1132

$7.93

26011B

WIRE-LEAD,BATTERY

26011-1145

Unavailable

26011C

WIRE-LEAD,BATTERY

26011-1146

Unavailable

26012

YUA BAT YB14L-A2

26012-1008

$84.21

27002

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

27002A

RELAY-ASSY

27002-1051

$48.39

27003A

HORN

27003-076

Unavailable

27010

SWITCH,TURN SIGNAL OP

27010-1077

Unavailable

49018

DIODE

49018-1052

Unavailable

92037

CLAMP,HARNESS

92037-1370

$8.46

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=186

92072-056

$3.81

92075

DAMPER,FUSE

92075-279

Unavailable

180

BOLT 6X12

180B0612

Unavailable

183

BOLT-UPSET-WS-SMALL

183B0816

Unavailable

187

BOLT-UPSET-WSP

187B0616

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225B0620

Unavailable
