1984 Kawasaki KZ750-K2 (Canada Only) Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

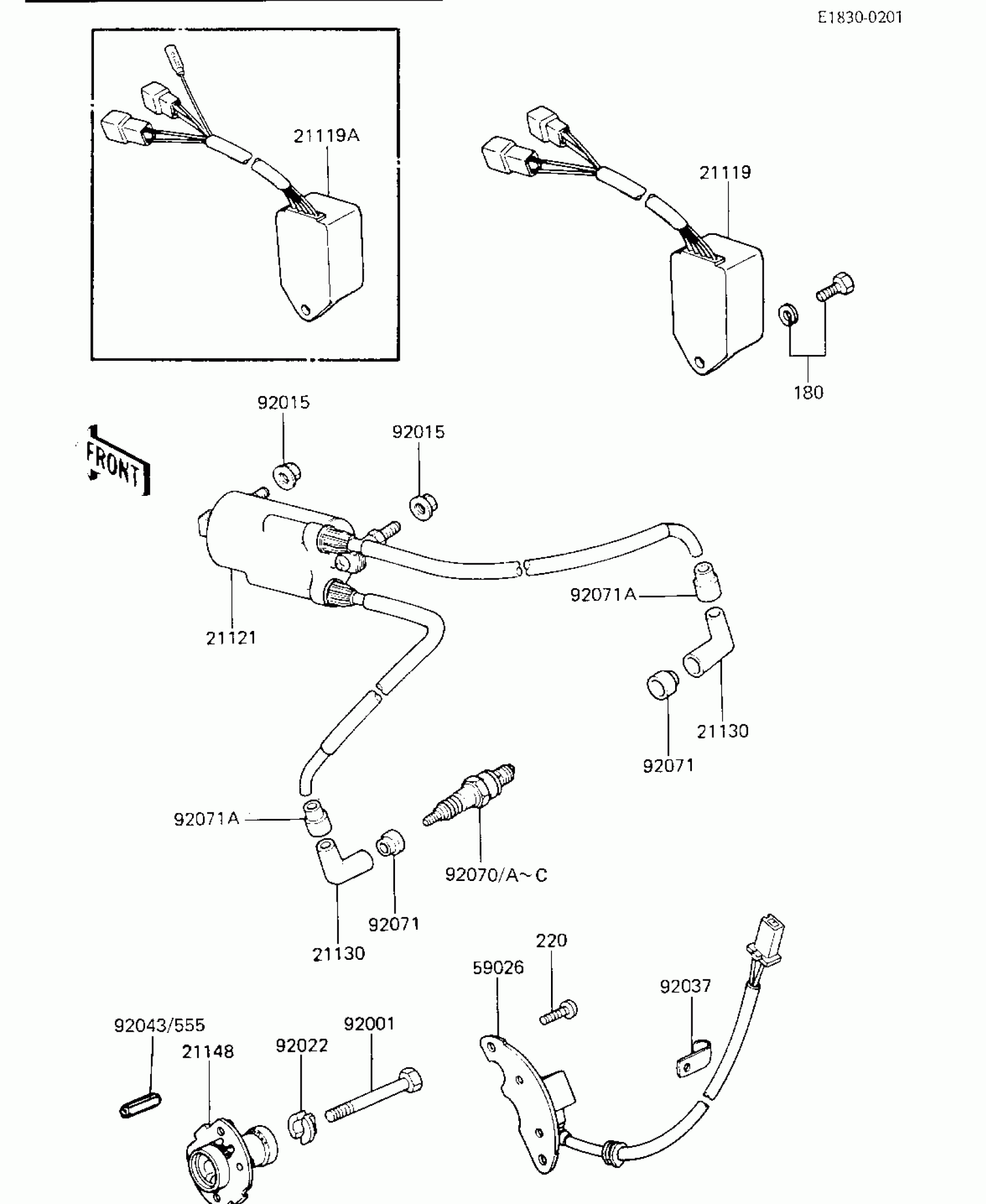

1984 Kawasaki KZ750-K2 (Canada Only) Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-1022

1
Out of stock

2119A

IGNITER

21119-1125

1

$400.60

In stock

21121

COIL-IGNITION

21121-1041

1
Out of stock

21130

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

21148

GOVERNOR-BREAKER

21148-1024

1
Out of stock

59026

COIL-PULSING

59026-1022

1

$280.31

In stock

92001

BOLT,8X63

92001-1397

1

$4.27

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,BREAKER GOVERNOR

92022-244

1
Out of stock

92037

1

$3.75

In stock

92070B

1

$3.72

In stock

92071

GROMMET,PLUG CAP

21131-004

1

$10.81

In stock

92071A

1

$3.39

In stock

180

BOLT-UPSET-WS

180B0616

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1

$0.51

In stock

555

PIN-SPRING,4X8

555A0408

1

$3.12

In stock
