1984 Kawasaki KZ750-K2 (Canada Only) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

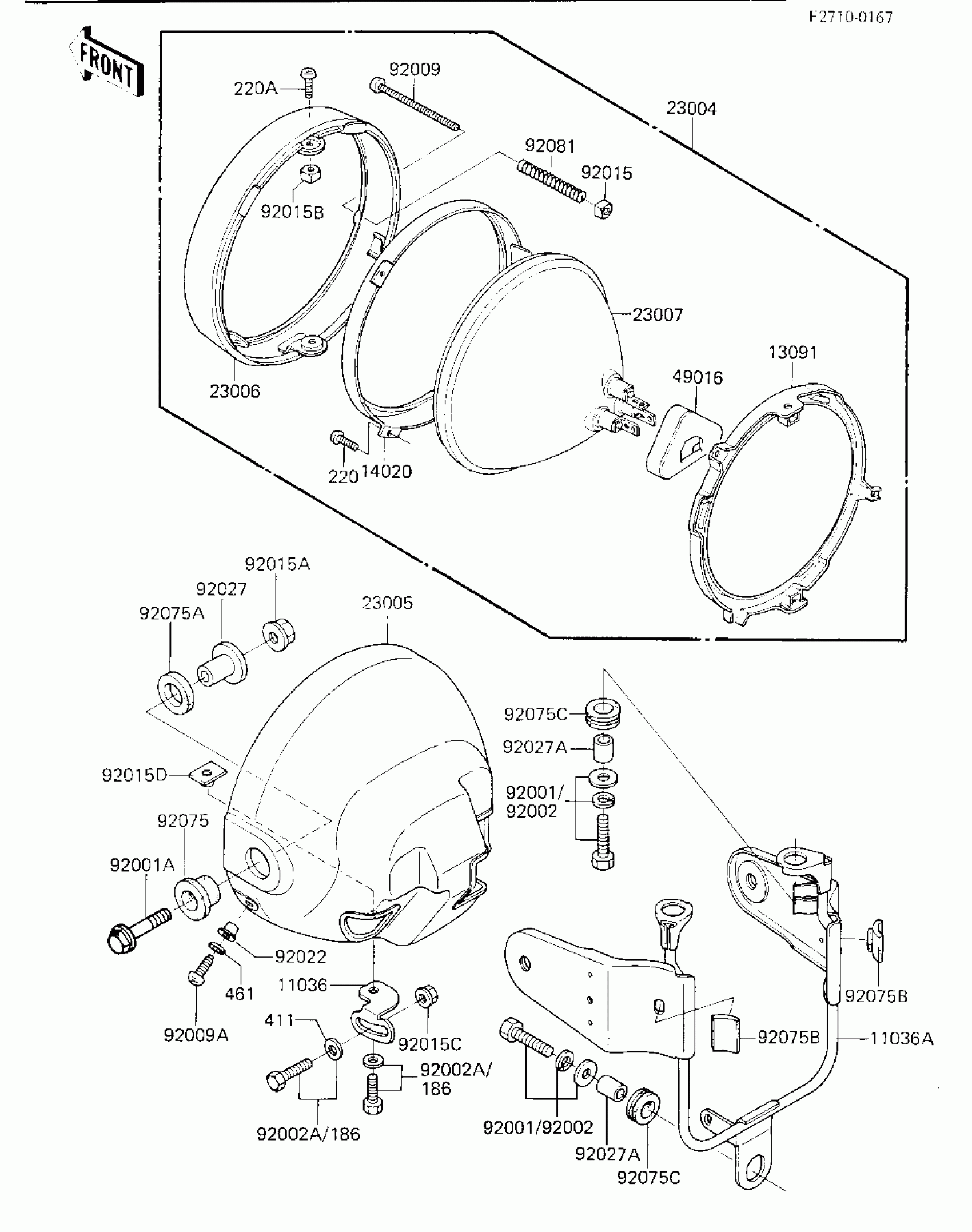

1984 Kawasaki KZ750-K2 (Canada Only) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,HEAD LAMP

11036-1649

1
Out of stock

11036A

BRACKET-A,HEAD LAMP

11036-1687

1
Out of stock

13091

HOLDER,HEAD LAMP

13091-1160

1
Out of stock

14020

RETAINER,HEAD LAMP

14020-1018

1
Out of stock

23004

LAMP-HEAD

23004-1089

1

$187.97

In stock

23005

1

$115.56

In stock

23006

RIM-LAMP,CR PLATED

23006-1020

1

$65.92

In stock

23007

SEALED BEAM UNIT

23007-1006

1
Out of stock

49016

DUST COVER,HEAD LAMP

49016-1009

1
Out of stock

92001A

BOLT,FLANGED,8X35

92001-1910

1

$5.71

In stock

92002

BOLT,6X25

92002-1137

1

$3.49

In stock

92002A

BOLT

186B0614

1
Out of stock

92009

SCREW,4X52

92009-1033

1
Out of stock

92009A

SCREW,5MM

92011-024

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015B

NUT,5MM

92015-1157

1
Out of stock

92015C

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015D

NUT,6MM,HEAD LAMP

92015-1231

1
Out of stock

92022

WASHER

23021-010

1

$3.43

In stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92027A

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92075B

DAMPER RUBBER

92075-1243

1
Out of stock

92075C

1

$3.72

In stock

92081

1

$3.19

In stock

220

1

$0.63

In stock

220A

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
