1984 Kawasaki KZ750-K2 (Canada Only) Mufflers Diagram

← All diagrams

Find the part on the Mufflers diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

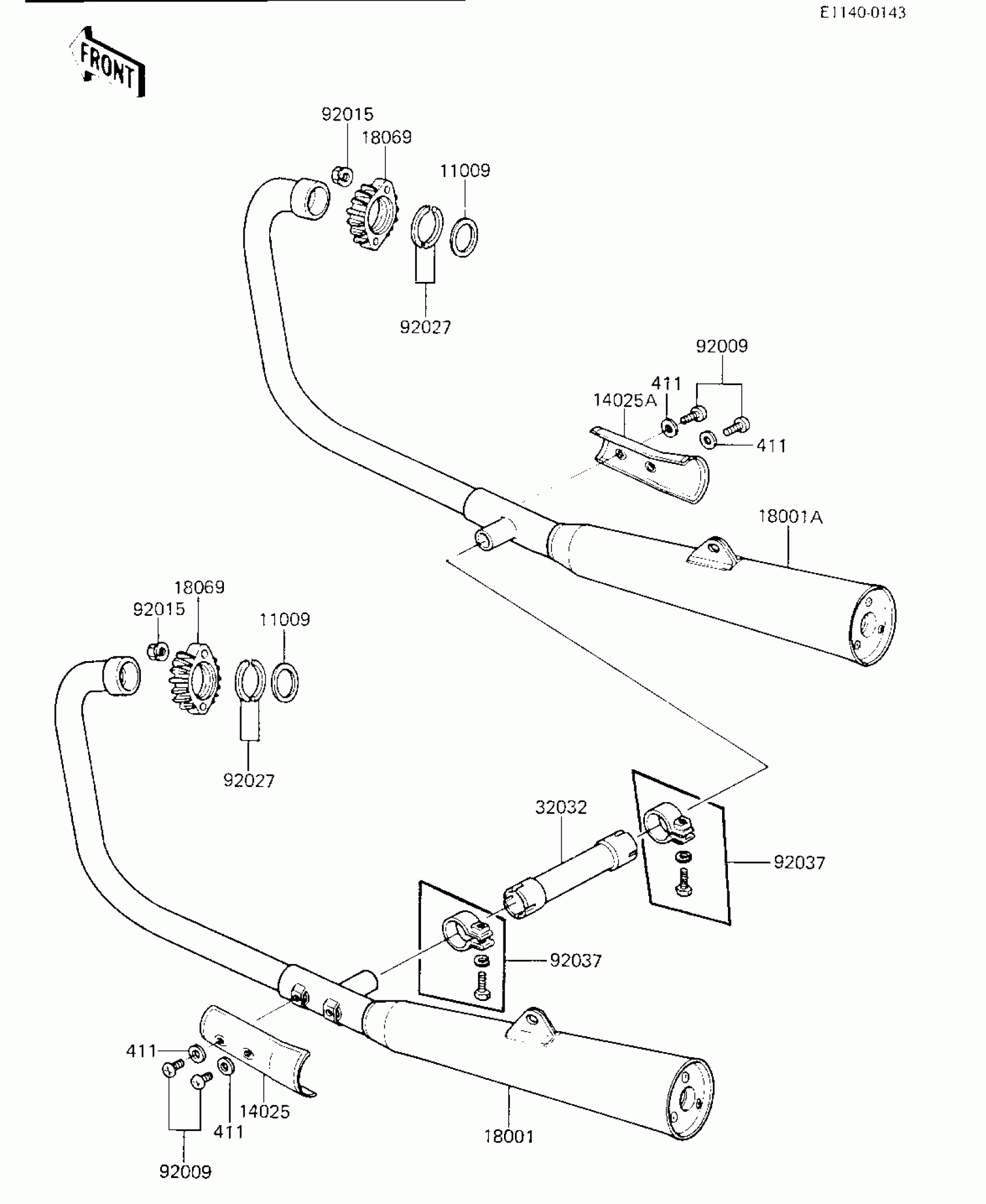

1984 Kawasaki KZ750-K2 (Canada Only) Mufflers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE H

11009-1840

1
Out of stock

14025

COVER,MUFFLER L.H

14025-1194

1
Out of stock

14025A

COVER,MUFFLER R.H

14025-1195

1
Out of stock

18001

MUFFLER,LH

18001-1454

1
Out of stock

18001A

MUFFLER,RH

18001-1455

1
Out of stock

18069

HOLDER,EXHAUST PIPE

18069-060

1
Out of stock

32032

PIPE,MUFFLER CONNECTI

32032-1868

1
Out of stock

92009

SCREW,PAN HEAD,6X8

92011-039

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92027

COLLAR,EXHAUST PIPE

92027-1241

1
Out of stock

92037

CLAMP,MUFFLER,37MM

92037-1243

1
Out of stock

411

WASHER-PLAIN,6MM

411D0600

1
Out of stock
