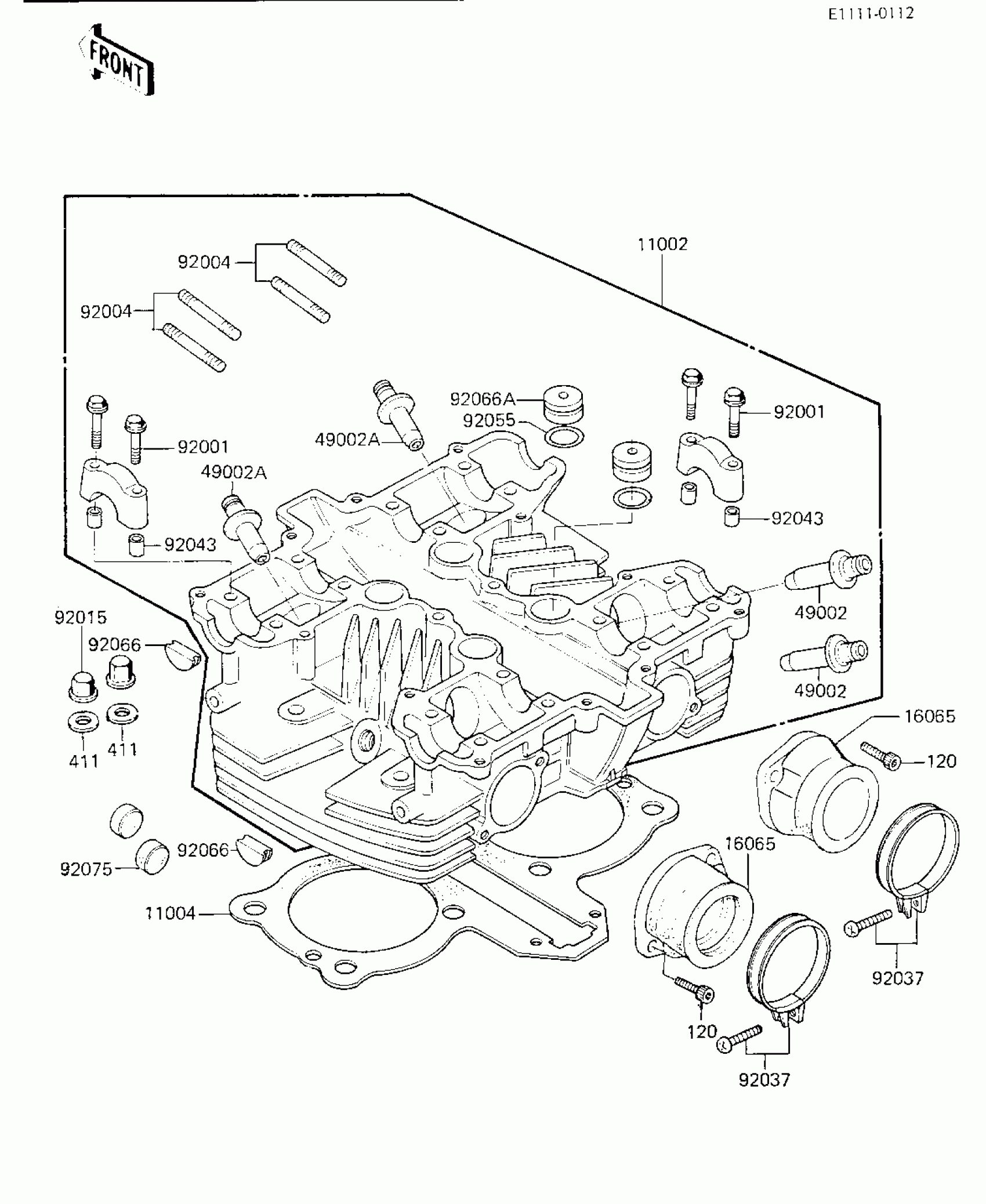

Kawasaki KZ750-K2 (Canada Only) CYLINDER HEAD Diagram

#

Description

Price

11002

CYLINDER HEAD

11002-1119

Unavailable

11004

GASKET,CYLINDER HEAD

11004-1055

Unavailable

16065

HOLDER-CARBURETOR

16065-1046

Unavailable

49002

GUIDE,INLET VALVE

12013-007

Unavailable

49002A

GUIDE,EXHAUST VALVE

12013-011

Unavailable

92001

BOLT,FLANGED,6X45

92003-092

$5.79

92004

STUD,8MM

92004-058

Unavailable

92015

NUT,FLANGED CAP,10MM

92015-076

$10.39

92037

CLAMP,53M/M

92037-201

Unavailable

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

"O" RING

92055-095

Unavailable

92066

PLUG,CAM SHAFT

92066-047

$22.78

92066A

PLUG,CYLINDER HEAD

92066-052

Unavailable

92075

DAMPER,CYLINDER HEAD/CYLINDER

92075-109

Unavailable

120

BOLT-SOCKET,6X16

120S0616

Unavailable

411

WASHER-PLAIN,10MM

411B1000

Unavailable
