1984 Kawasaki KZ750-K2 (Canada Only) Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

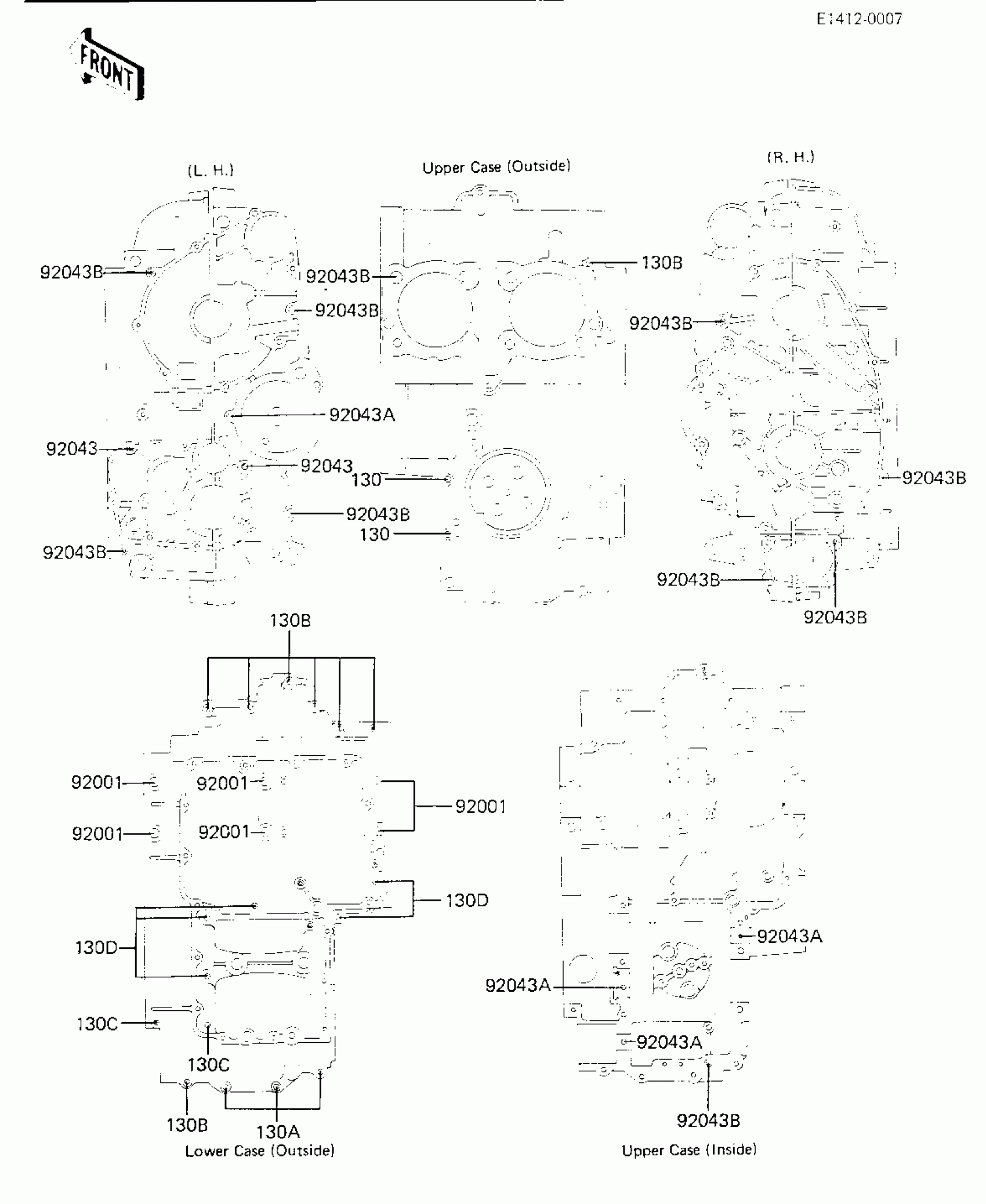

1984 Kawasaki KZ750-K2 (Canada Only) Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92001

BOLT,10X115

92003-187

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043A

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043B

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

130

BOLT-FLANGED,6X105

130G06105

1
Out of stock

130A

BOLT-FLANGED,6X40

130G0640

1
Out of stock

130B

BOLT-FLANGED,6X55

130G0655

1
Out of stock

130C

BOLT-FLANGED,6X70

130G0670

1
Out of stock

130D

BOLT-FLANGED,6X95

130G0695

1
Out of stock
