1984 Kawasaki KZ750-K2 (Canada Only) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

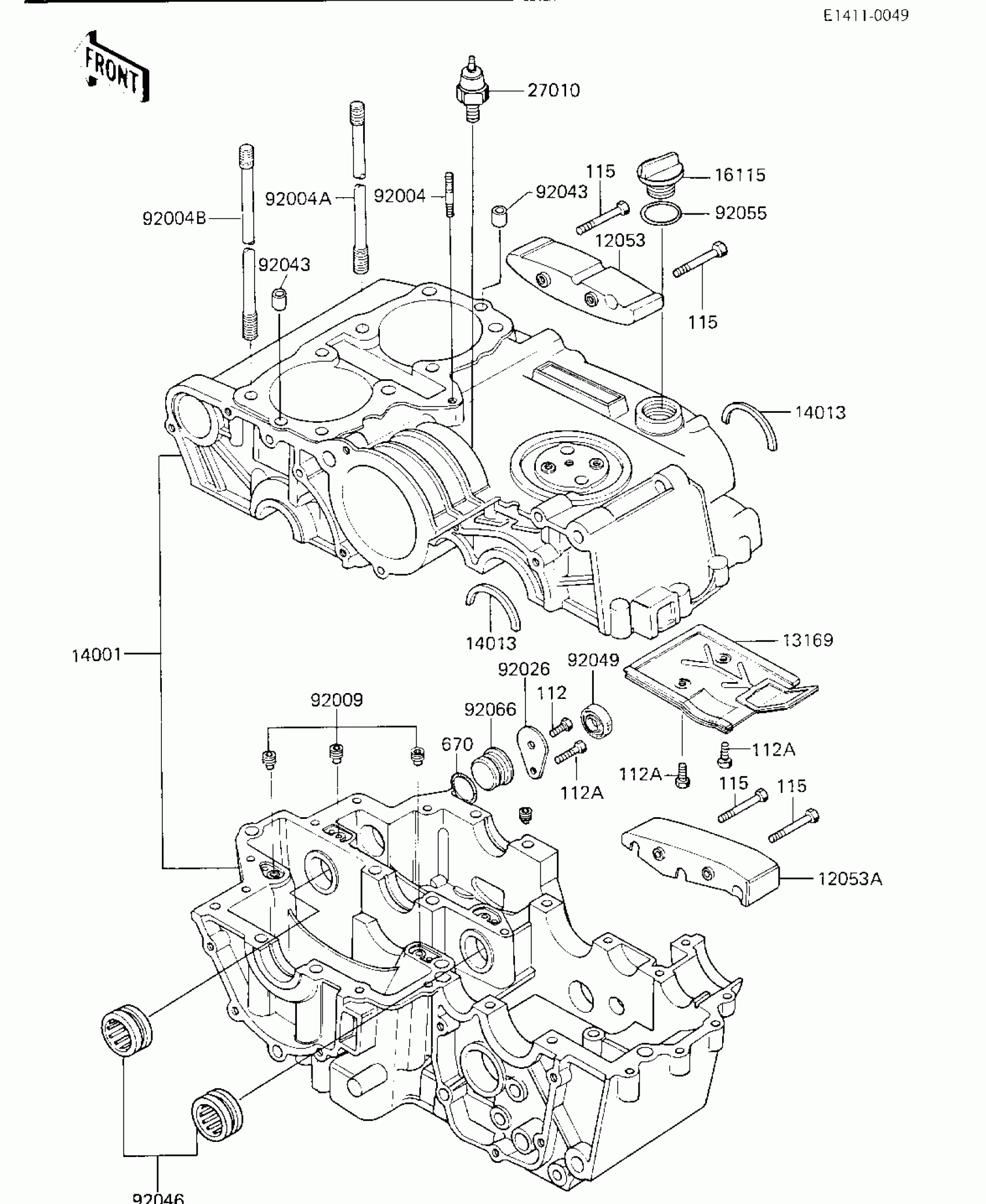

1984 Kawasaki KZ750-K2 (Canada Only) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

SLIPPER,PRIMARY CHAIN

12053-020

1
Out of stock

12053A

SLIPPER,PRIMARY CHAIN

12053-021

1
Out of stock

13169

PLATE,BREATHER

14068-008

1
Out of stock

14001

SET-CRANKCASE

14001-5092

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

27010

SWITCH,OIL LEVEL

27010-1057

1
Out of stock

92004

STUD,6X22

92004-059

1
Out of stock

92004A

STUD,10X167

92004-1002

1
Out of stock

92004B

STUD,10X158

92004-1003

1
Out of stock

92009

SCREW,SLOTTED

92013-007

1
Out of stock

92026

SPACER

92026-115

1
Out of stock

92043

PIN,11X14X12.3

92043-1266

1
Out of stock

92046

BEARING,NEEDLE

92046-048

1
Out of stock

92049

SEAL-OIL,S25407

92050-065

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92066

PLUG

92066-049

1
Out of stock

112

BOLT-UPSET,6X8

112B0608

1
Out of stock

112A

BOLT-UPSET 6X14

112B0614

1
Out of stock

115

BOLT-SMALL-UPSET

115G0835

1
Out of stock

670

"0" RING

670B3030

1
Out of stock
