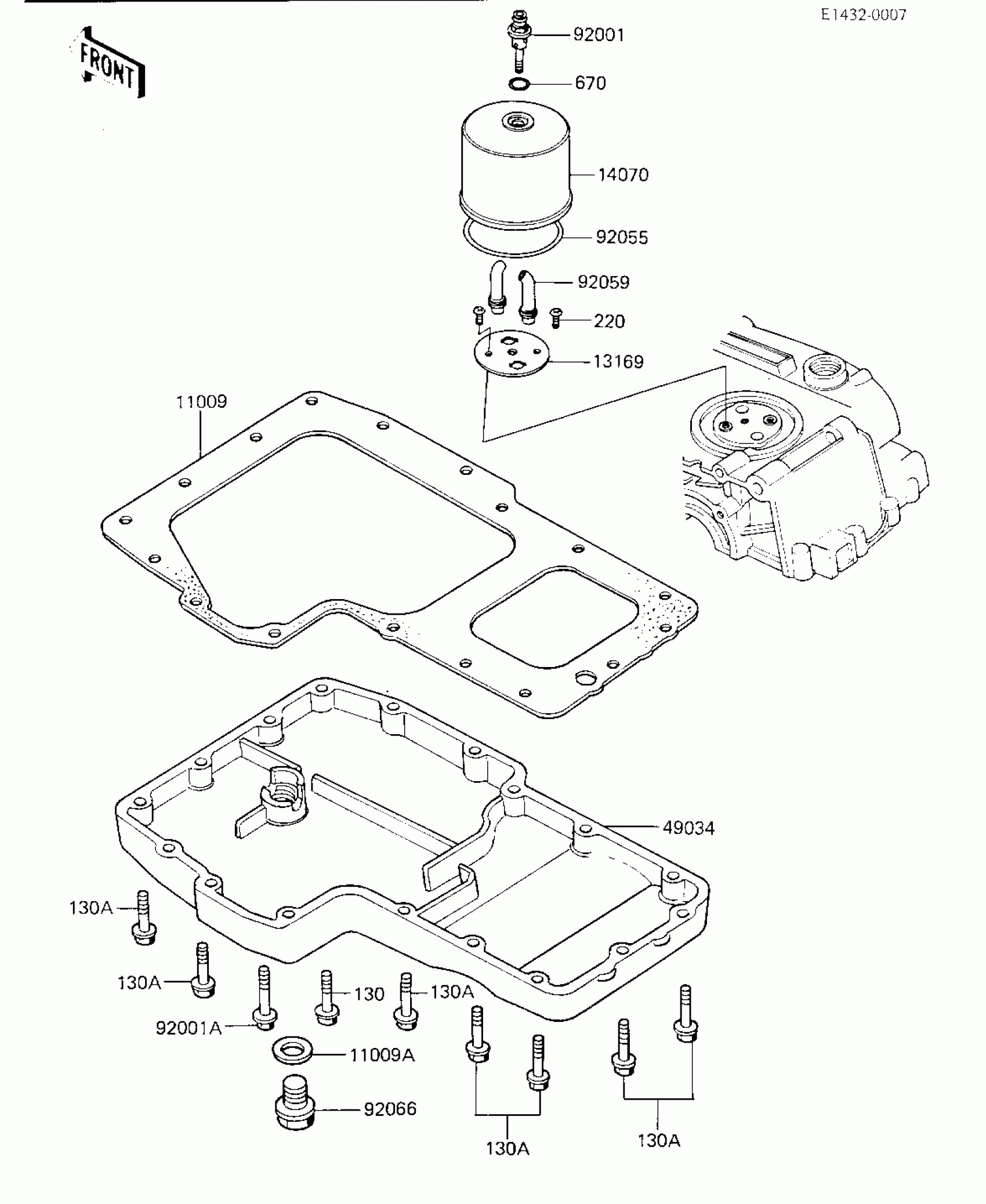

Kawasaki KZ750-K2 (Canada Only) BREATHER COVER/OIL PAN Diagram

Description

Price

11009

GASKET,OIL PAN

16112-004

Unavailable

11009A

GASKET,12X22X2

92065-097

$0.66

13169

PLATE,BREATHER

14068-007

$9.25

14070

BODY,BREATHER

14070-007

$46.80

49034

PAN-OIL

49034-1013

$120.37

92001

BOLT,BREATHER FITTING

92003-098

$50.75

92001A

BOLT, HEX HEAD, 6X34

92003-159

Unavailable

92055

RING-O,91.6X3.4

92055-052

$7.52

92059

TUBE,BREATHER

92059-140

Unavailable

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

130

BOLT-FLANGED,6X20

130G0620

Unavailable

130A

BOLT,FLANGED,6X25

130G0625

Unavailable

220

SCREW PAN HEAD 6X18

220B0618

$2.79

670

O RING,16MM

670B2016

$1.04
