1984 Kawasaki KZ750-K2 (Canada Only) Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

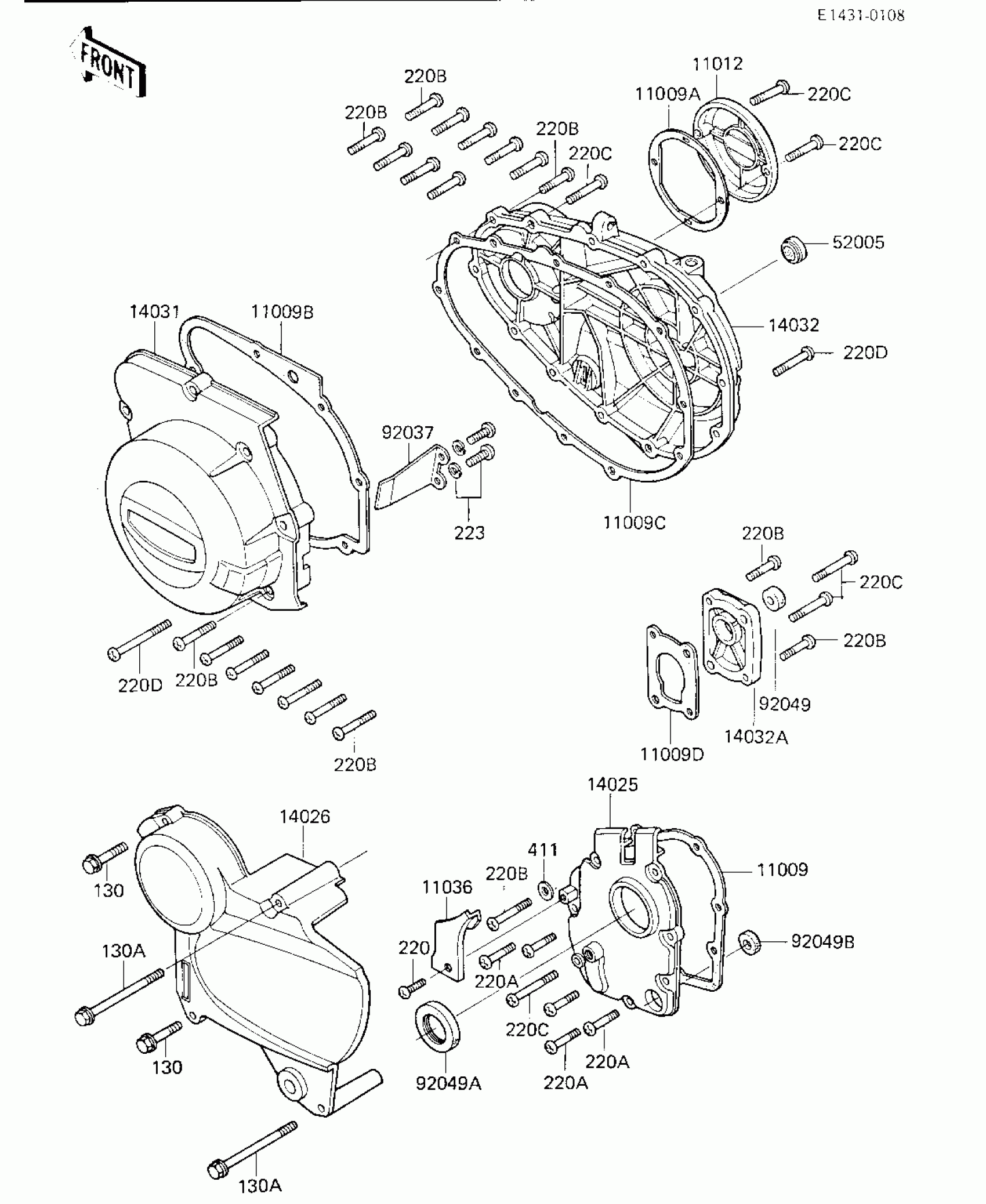

1984 Kawasaki KZ750-K2 (Canada Only) Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TRANSMISSION COVER

11060-1056

1
Out of stock

11009A

GASKET,CONTACT BREAKE

11009-1322

1
Out of stock

11009B

GASKET,GENERATOR COVE

11009-1328

1
Out of stock

11009C

GASKET,R.H ENGINE COV

14046-033

1
Out of stock

11009D

GASKET,KICK COVER

14046-034

1
Out of stock

11012

CAP,CONTACT BREAKER

11012-1267

1
Out of stock

11036

BRACKET-A,MISSION COV

11036-1678

1
Out of stock

14025

COVER,MISSION

14025-1554

1
Out of stock

14026

COVER-CHAIN

14026-1076

1
Out of stock

14031

COVER-GENERATOR

14031-1103

1
Out of stock

14032

COVER-CLUTCH

14032-1092

1
Out of stock

14032A

COVER,KICK

14032-112-2H

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92037

1

$4.25

In stock

92049

SEAL-OIL,SC22325

92049-1048

1
Out of stock

92049A

SEAL-OIL,AE2343F0

92049-1070

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

130

BOLT-FLANGED,6X30

130G0630

1
Out of stock

130A

BOLT-FLANGED,6X95

130G0695

1
Out of stock

220

1

$0.63

In stock

220A

1

$4.61

In stock

220B

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

220C

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

220D

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

223

SCREW-PAN-WS-CROS,5X12

223B0512

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock
