1980 Kawasaki KZ750-E1 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

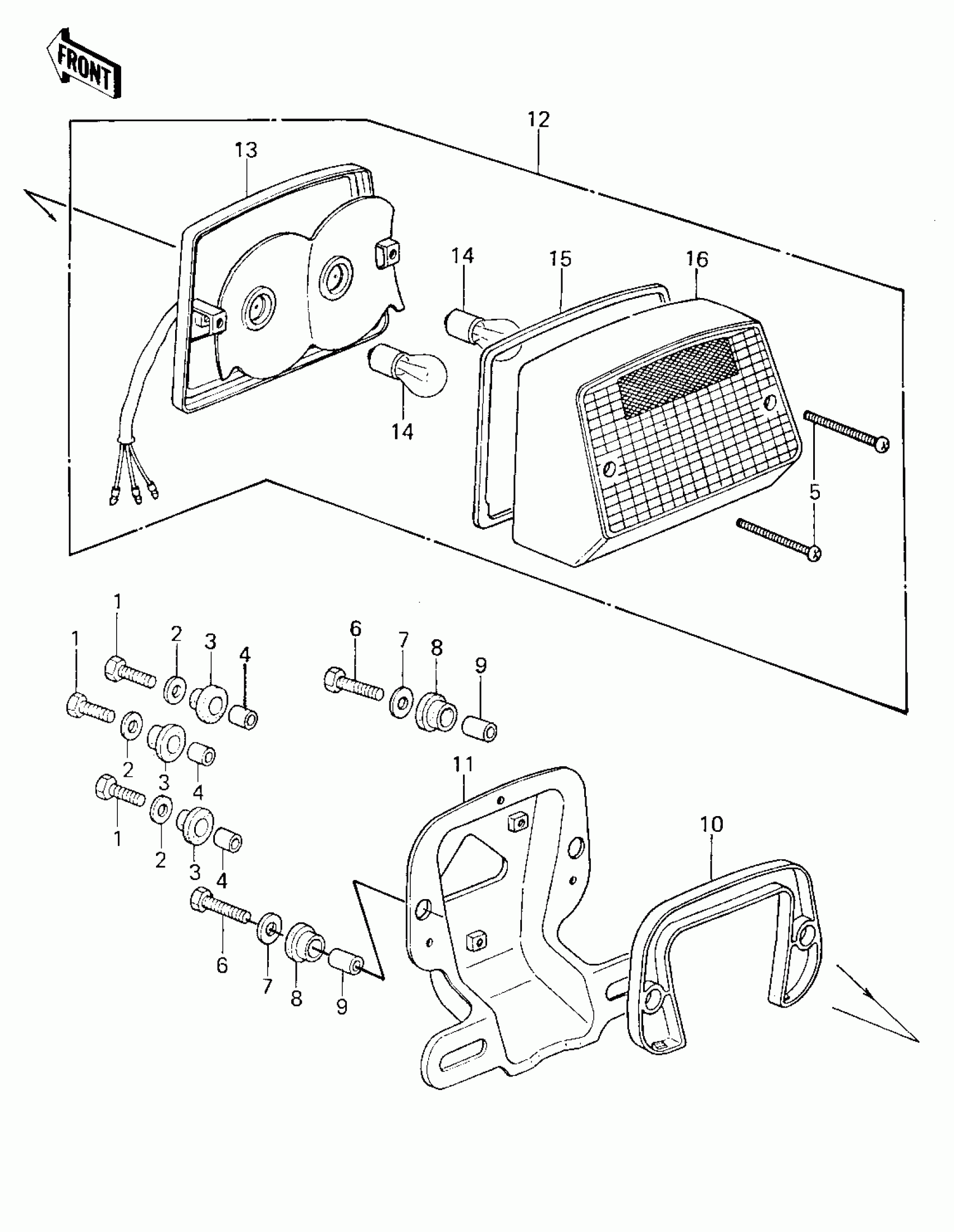

1980 Kawasaki KZ750-E1 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-UPSET,6X20

112G0620

1
Out of stock

2

WASHER,6.5X20X1.6

92022-125

1
Out of stock

3

DAMPER RUBBER

92075-112

1
Out of stock

4

COLLAR 6.8X10X10.5

92027-120

1
Out of stock

5

SCREW

220R0455

1
Out of stock

6

BOLT 6X22

112B0622

1
Out of stock

7

WASHER,6.5X20X1.6

92022-125

1
Out of stock

8

DAMPER RUBBER

92075-1092

1
Out of stock

9

COLLAR,6.8X10X14.5

92027-156

1
Out of stock

10

DAMPER RUBBER BRACKET

92075-1091

1
Out of stock

11

BRACKET,LICENSE PLATE

23036-1009

1
Out of stock

12

LAMP ASSY,TAIL

23025-1005

1
Out of stock

13

BODY ASSY,TAIL LAMP

23027-1001

1
Out of stock

14

BULB,12V 27/8W

92069-059

1
Out of stock

15

GASKET,TAIL LAMP LENS

11009-1077

1
Out of stock

16

LENS,TAIL LAMP

23026-1002

1
Out of stock
