1980 Kawasaki KZ750-E1 Ignition Switch/locks/reflectors ('80 KZ Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors ('80 KZ diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

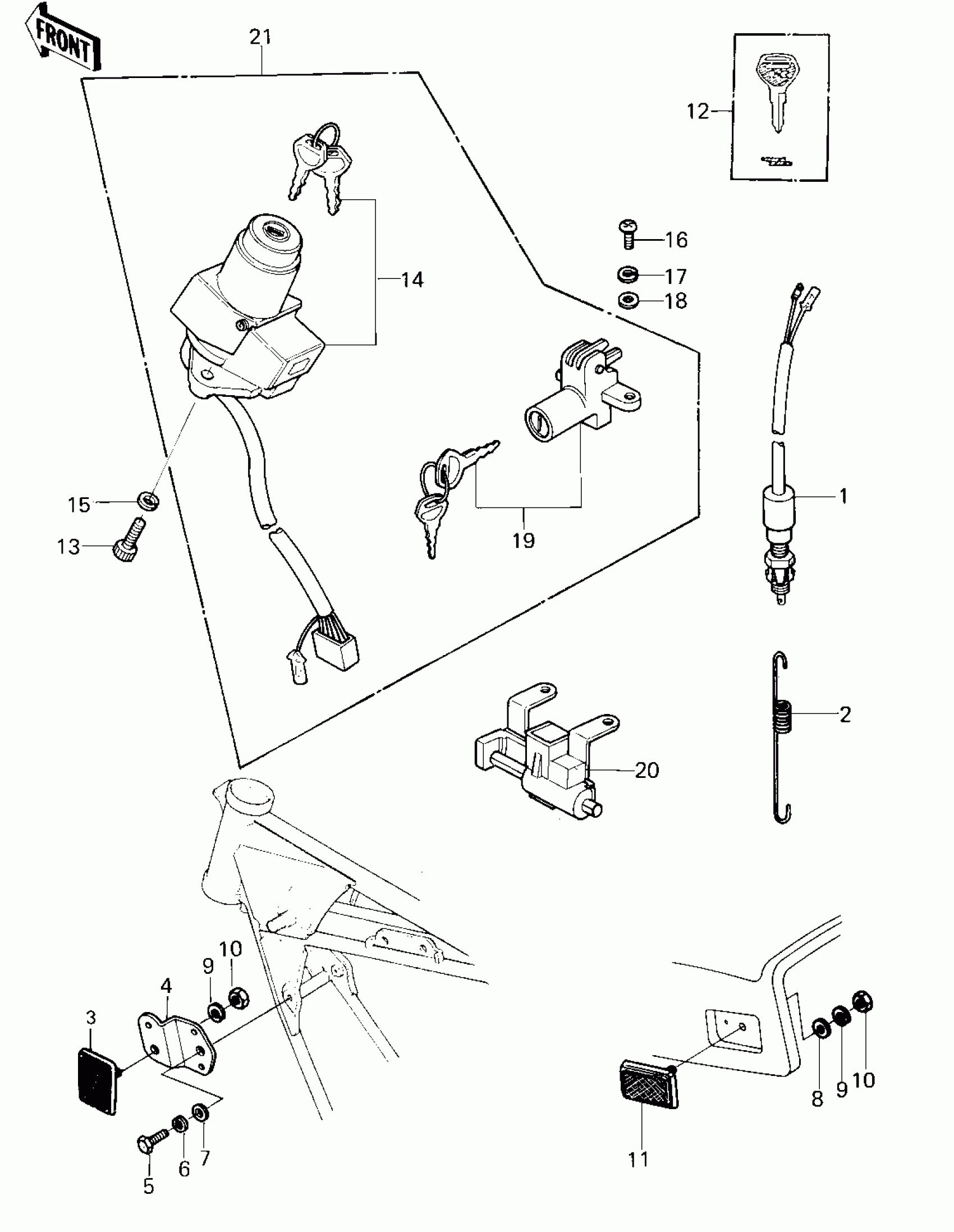

1980 Kawasaki KZ750-E1 Ignition Switch/locks/reflectors ('80 KZ Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH,REAR BRAKE

27010-1019

1
Out of stock

2

SPRING,BRAKE LIGHT SW

27011-015

1
Out of stock

3

REFLECTOR-REFLEX

28012-1003

1
Out of stock

4

BRACKET,REFLEX REFLCT

11034-1796

1
Out of stock

5

BOLT-UPSET

112G0516

1
Out of stock

6

WASHER SPRING 5MM

461F0500

1
Out of stock

7

WASHER-PLAIN,5MM

411B0500

1
Out of stock

8

WASHER-PLAIN,5MM

411B0500

1
Out of stock

9

WASHER SPRING 5MM

461F0500

1
Out of stock

10

NUT-HEX

311B0500

1
Out of stock

11

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

12

KEY-LOCK,BLANK

27008-1103

—
Out of stock

13

BOLT-SOCKET,6X16

120S0616

1
Out of stock

14

SWITCH-ASSY-IGNITION

27005-5024

1
Out of stock

15

WASHER SPRING 6MM

461F0600

1
Out of stock

16

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

17

WASHER SPRING 6MM

461F0600

1
Out of stock

18

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

19

LOCK-ASSY,SEAT

27016-5010

1
Out of stock

20

HOOK ASSY,HELMET

53045-1001

1
Out of stock

21

SWITCH-ASSY

27004-5151

—
Out of stock
