1980 Kawasaki KZ750-E1 Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

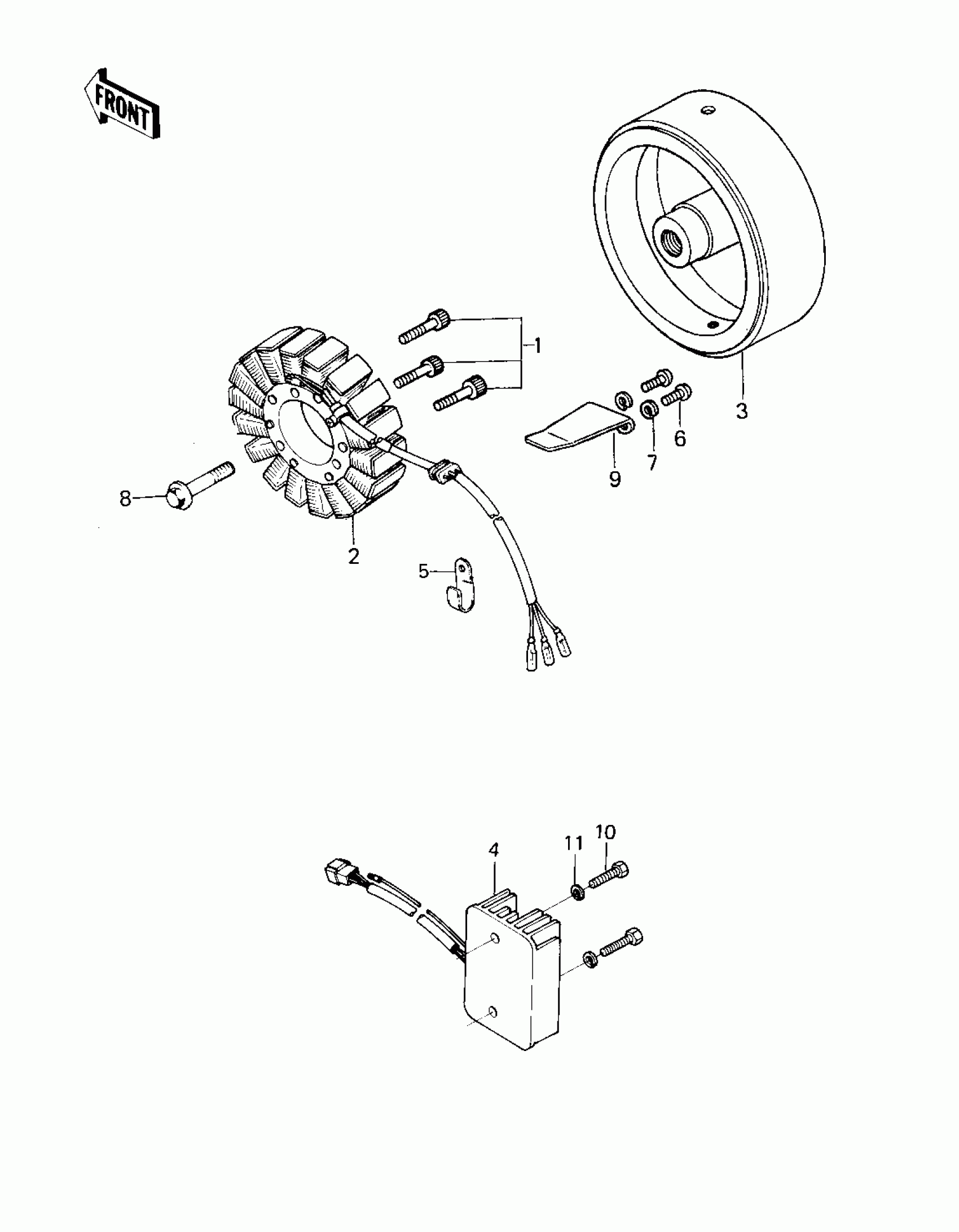

1980 Kawasaki KZ750-E1 Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SOCKET,5X30

120P0530

1
Out of stock

2

STATOR

21003-1083

1
Out of stock

3

FLYWHEEL,MAGNETO

21050-1015

1
Out of stock

4

REGULATOR,VOLTAGE

21066-1008

1
Out of stock

5

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

6

SCREW-PAN-CROS

220B0512

1
Out of stock

7

WASHER SPRING 5MM

461F0500

1
Out of stock

8

BOLT,10X40

92001-1201

1
Out of stock

9

CLAMP,GENERATOR LEAD

92037-1122

1
Out of stock

10

BOLT-UPSET

112G0625

1
Out of stock

11

WASHER SPRING 6MM

461F0600

1
Out of stock
