1980 Kawasaki KZ750-E1 Ignition Diagram

← All diagrams

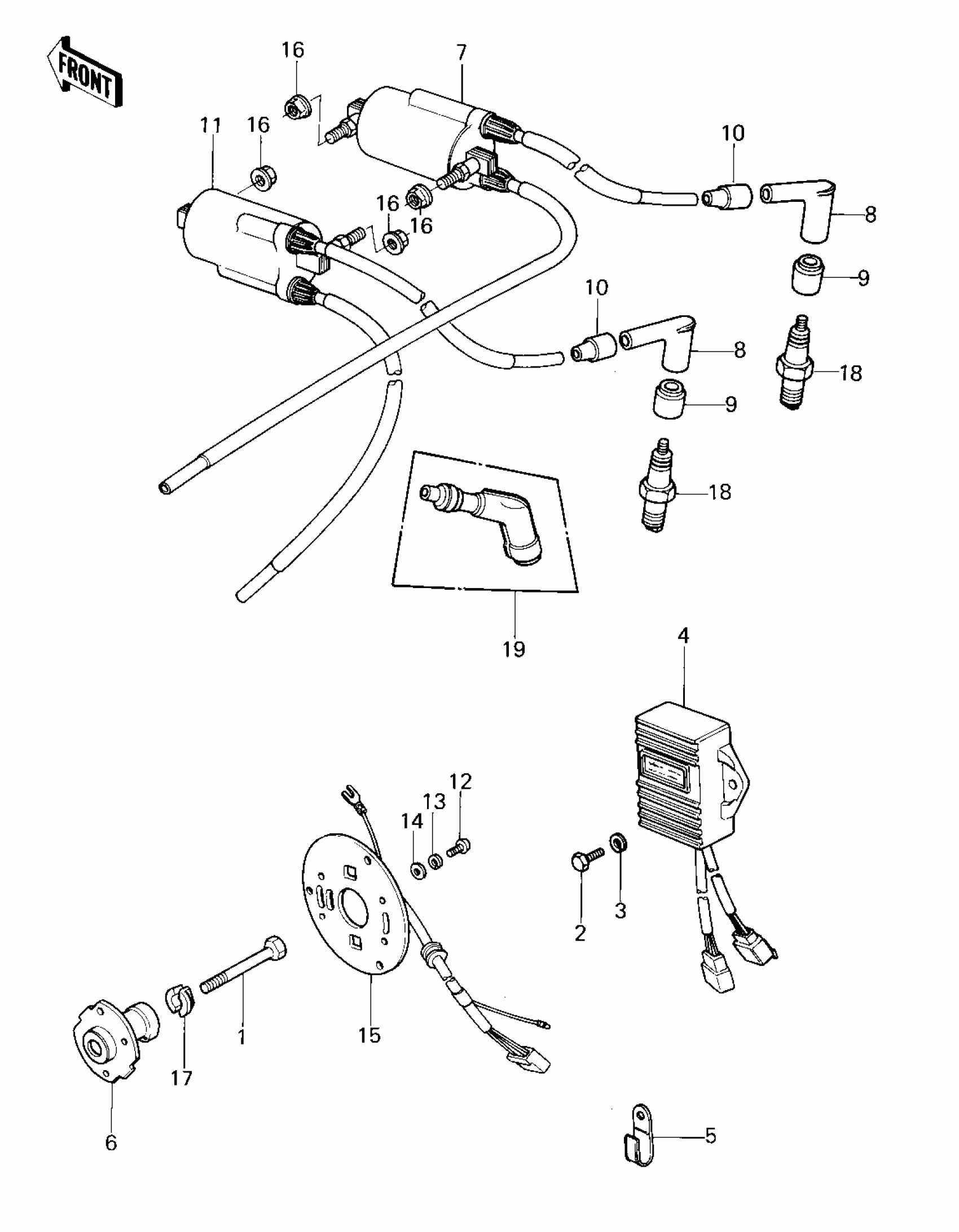

Find the part on the Ignition diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KZ750-E1 Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,8X63

92001-1397

1
Out of stock

2

BOLT-UPSET 6X14

112B0614

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

IGNITER

21119-1040

1
Out of stock

5

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

6

ADVANCER,AUTO TIMING

21148-1013

1
Out of stock

7

COIL,IGNITION #1.#4

21121-1027

1
Out of stock

8

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

9

GROMMET,PLUG CAP

21131-004

1
Out of stock

10

GROMMET,HIGH TENSION

21132-005

1
Out of stock

11

COIL,IGNITION #2.#3

21121-1028

1
Out of stock

12

SCREW-PAN-CROS

220B0512

1
Out of stock

13

WASHER SPRING 5MM

461F0500

1
Out of stock

14

WASHER PLAIN 5MM

410B0500

1
Out of stock

15

COIL,PULSING

59026-1007

1
Out of stock

16

NUT,FLANGED,6MM

92015-1078

1
Out of stock

17

WASHER,BREAKER GOVERNOR

92022-244

1
Out of stock

18

SPARK PLUG B8ES

B8ES

1
Out of stock

18

SPARK PLUG B7ES

B7ES

—
Out of stock

19

CAP-ASSY-PLUG

21160-005

1
Out of stock
