1980 Kawasaki KZ750-E1 Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

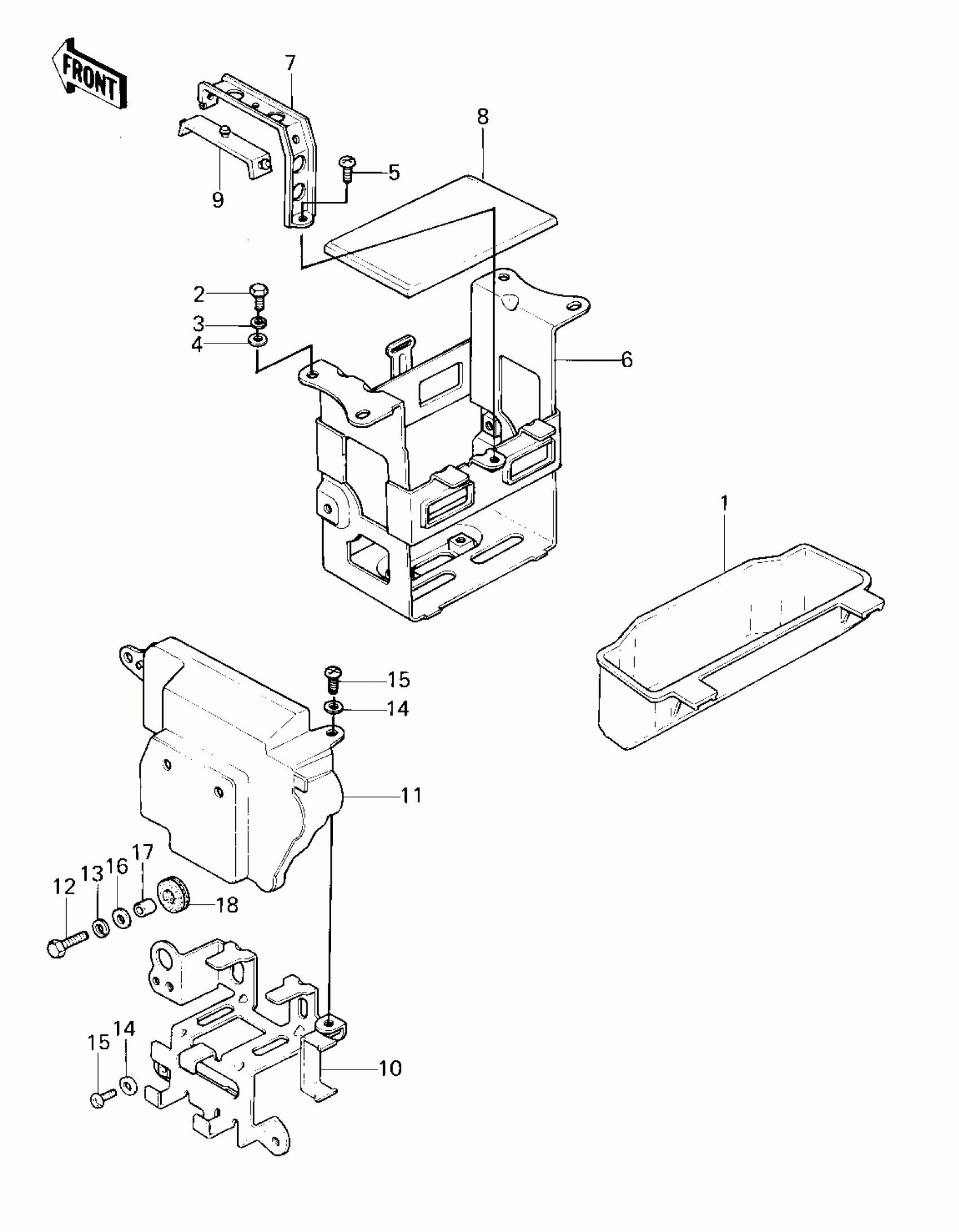

1980 Kawasaki KZ750-E1 Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE,TOOL

32098-1011

1
Out of stock

2

BOLT-UPSET,6X12

112G0612

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

5

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

6

CASE,BATTERY

32097-1026

1
Out of stock

7

BAND,BATTERY

92072-1019

1
Out of stock

8

DAMPER

92075-1076

1
Out of stock

9

DAMPER,BATTERY BAND

92075-1113

1
Out of stock

10

BRACKET,ELECTRO BASE

11034-1669

1
Out of stock

11

COVER,ELECTRO BASE

14025-1191

1
Out of stock

12

BOLT-UPSET

112G0625

1
Out of stock

13

WASHER SPRING 6MM

461F0600

1
Out of stock

14

WASHER PLAIN

92022-024

1
Out of stock

15

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

16

WASHER,7X24X1.6

92022-228

1
Out of stock

17

COLLAR-CLAMP

92027-291

1
Out of stock

18

DAMPER

92075-317

1
Out of stock
