1980 Kawasaki KZ750-E1 Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

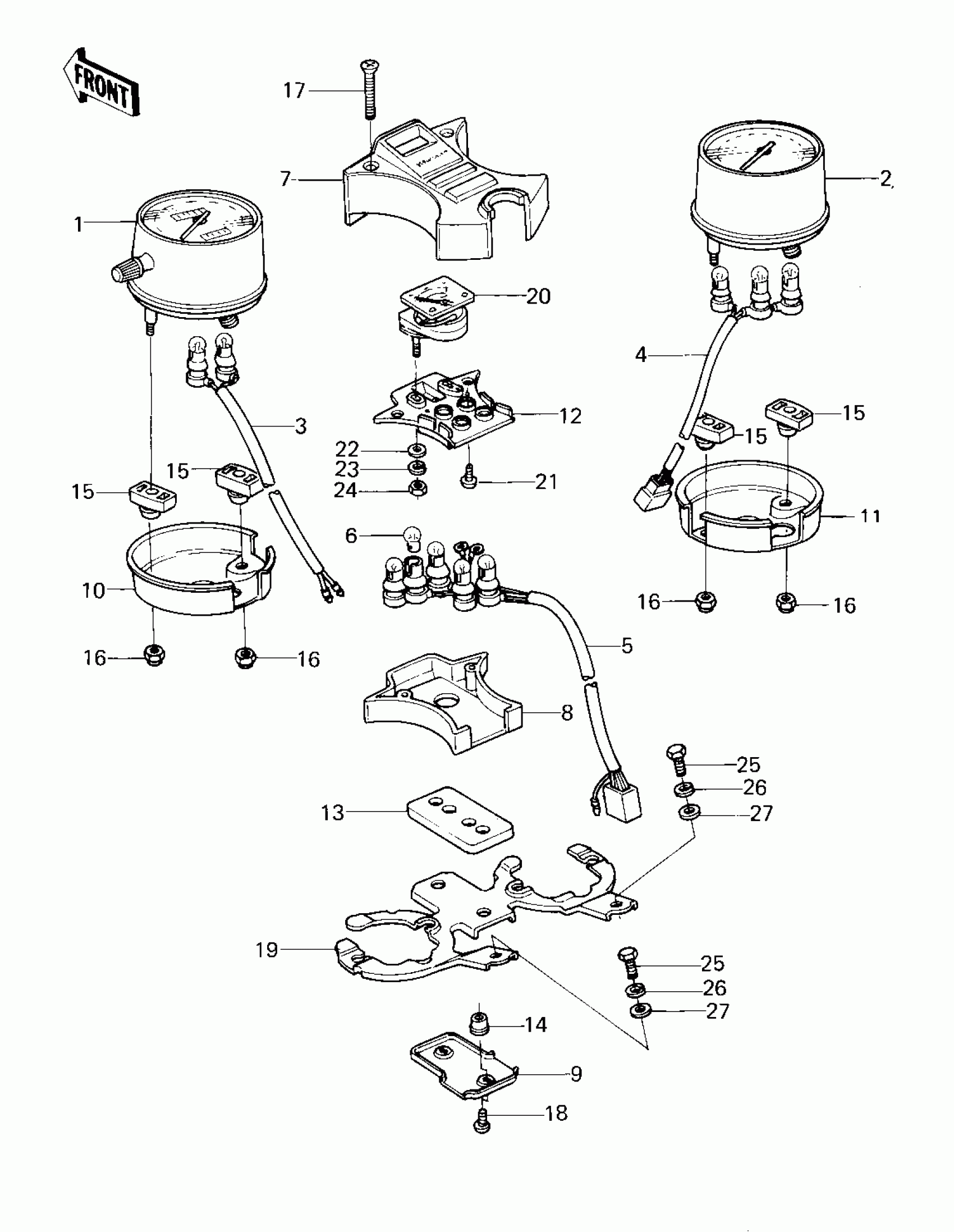

1980 Kawasaki KZ750-E1 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER,MPH & KPH

25005-1066

1
Out of stock

1

SPEEDOMETER,KM/H (Canada)

25005-1075

1
Out of stock

2

TACHOMETER,X1000RPM

25015-1059

1
Out of stock

3

SOCKET,ASSY,SPEEDOMET

23008-1028

1
Out of stock

4

SOCKET ASSY,TACHOMET

23008-1058

1
Out of stock

5

SOCKET ASSY,PILOT BOX

23008-1057

1
Out of stock

6

BULB 12V 3W

92069-018

1
Out of stock

7

COVER,PILOT BOX UPPER

25023-1020

1
Out of stock

8

COVER,PILOT BOX LOWER

14025-1210

1
Out of stock

9

COVER,METER BRACKET

14025-1211

1

$15.59

In stock

10

COVER,SPEEDOMETER

14025-1068

1
Out of stock

11

COVER,TACHOMETER

14025-1069

1
Out of stock

12

PLATE,SOCKET

13169-1238

1
Out of stock

13

DAMPER,PILOT BOX

92075-1246

1
Out of stock

14

DAMPER,METER

25019-023

1
Out of stock

15

DAMPER,SHOCK,METER

92075-1101

1
Out of stock

16

NUT-CAP,5MM

322N0500

1
Out of stock

17

SCREW,COUNTERSNK,4X40

92009-1092

1
Out of stock

18

SCREW,TAPPING,4X10

92009-1040

1
Out of stock

19

BRACKET,METER

25008-1024

1
Out of stock

20

METER,VOLT

28011-1006

1
Out of stock

21

SCREW,TAPPING,3.5X12

92008-012

1
Out of stock

22

WASHER PLAIN 4MM

410B0400

1
Out of stock

23

WASHER SPRING 4MM

461F0400

1
Out of stock

24

NUT-HEX

311B0400

1
Out of stock

25

BOLT-UPSET 6X14

112B0614

1
Out of stock

26

WASHER SPRING 6MM

461F0600

1
Out of stock

27

WASHER PLAIN 6MM

411B0600

1
Out of stock
