1980 Kawasaki KZ750-E1 Mufflers Diagram

← All diagrams

Find the part on the Mufflers diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

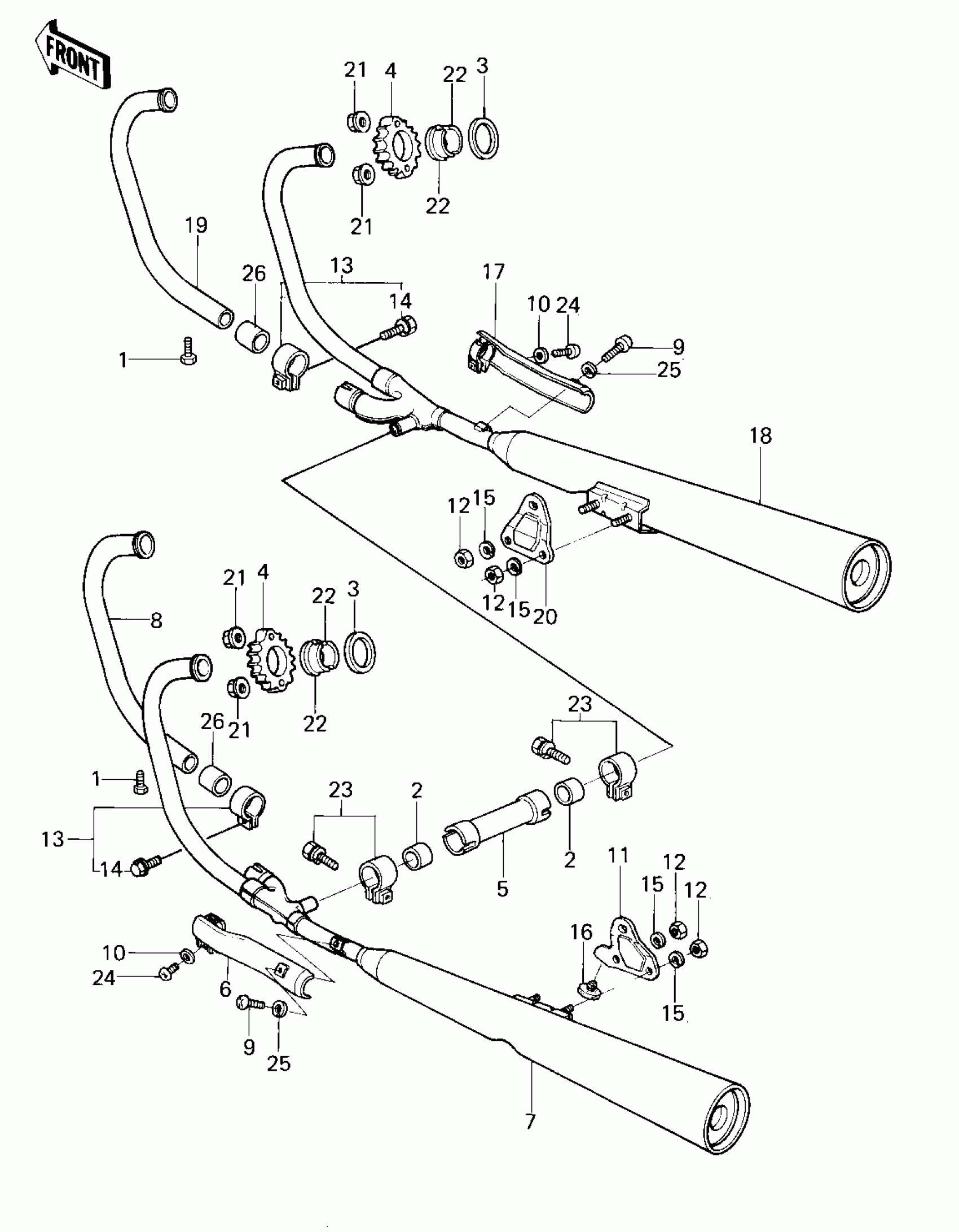

1980 Kawasaki KZ750-E1 Mufflers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT (6X10)

110R0610

1
Out of stock

2

GASKET,MUFFLER CONNEC

11060-1051

1
Out of stock

3

GASKET,EXHAUST PIPE H

11009-1866

1
Out of stock

4

HOLDER,EXHAUST PIPE

18069-1006

1
Out of stock

5

PIPE,MUFFLER CONNECTING

32032-1669

1
Out of stock

6

COVER,MUFFLER,LH

14025-1516

1
Out of stock

7

MUFFLER,LH

18001-1254

1
Out of stock

8

PIPE-EXHAUST,#2

18049-1162

1
Out of stock

9

SCREW,PAN HEAD,6X8

92011-039

1
Out of stock

10

WASHER-PLAIN,6MM

411D0600

1
Out of stock

11

BRACKET,MUFFLER L.H

32069-1054

1
Out of stock

12

NUT,8MM

311B0800

1
Out of stock

13

CLAMP,EXHAUST PIPE

92037-1089

1
Out of stock

14

BOLT,8X30

92001-1379

1
Out of stock

15

WASHER SPRING 8MM

461F0800

1
Out of stock

16

DAMPER

92075-1002

1
Out of stock

17

COVER,MUFFLER,RH

14025-1517

1
Out of stock

18

MUFFLER,RH

18001-1255

1
Out of stock

19

PIPE-EXHAUST,#3

18049-1163

1
Out of stock

20

BRACKET,MUFFLER R.H

32069-1055

1
Out of stock

21

NUT,FLANGED,6MM

92015-1078

1
Out of stock

22

COLLAR,L=14.5

92027-1142

1
Out of stock

23

CLAMP,MUFFLER,37MM

92037-1243

1
Out of stock

24

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

25

WASHER SPRING 6MM

461F0600

1
Out of stock

26

GASKET,EXHAUST PIPE CONNECTING

11009-1667

1
Out of stock
