1980 Kawasaki KZ750-E1 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

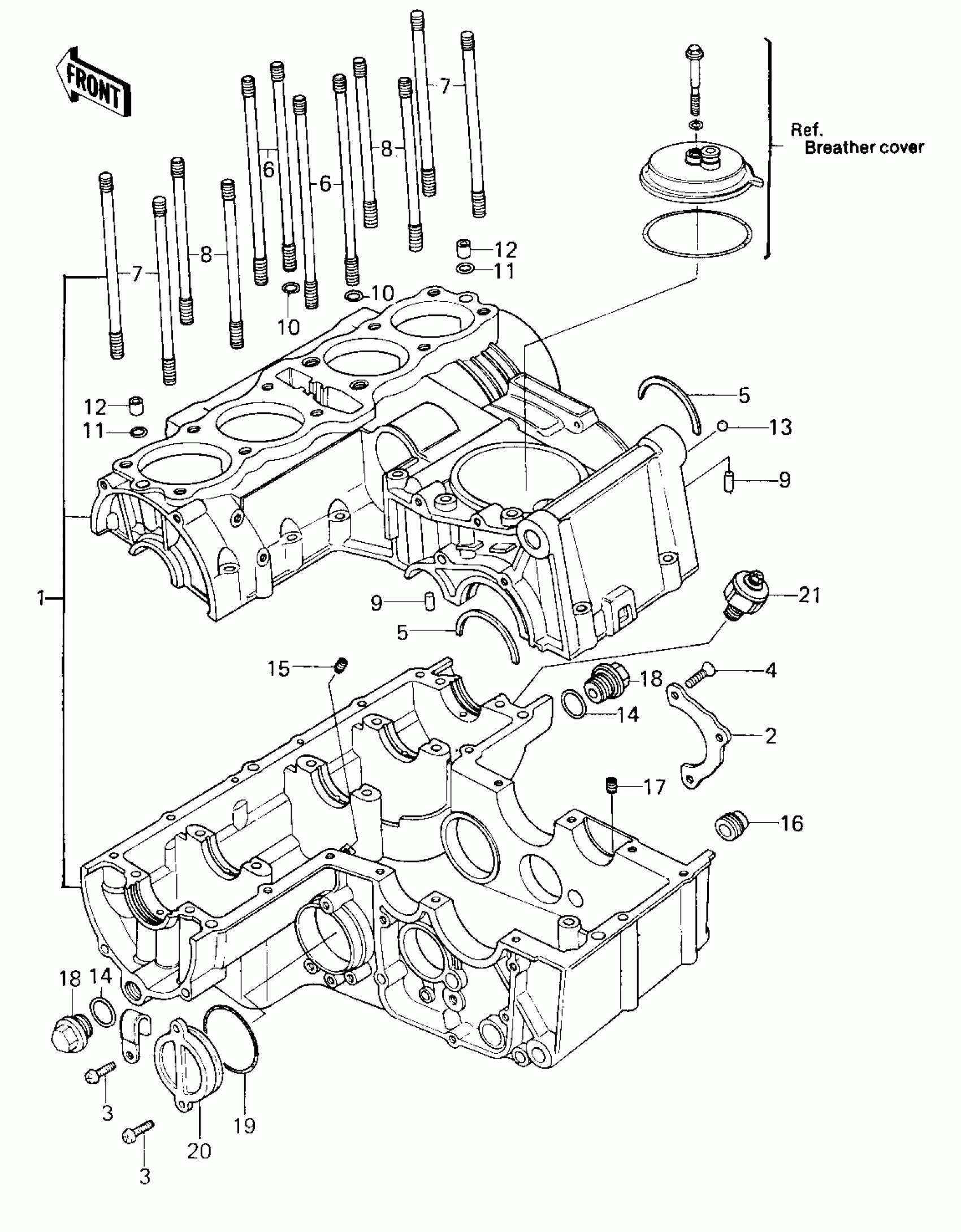

1980 Kawasaki KZ750-E1 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SET-CRANKCASE

14001-5170

1
Out of stock

2

PLATE-POSITION,SECONDARY SHAFT

14014-1007

1
Out of stock

3

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

4

SCREW-CSK-CROS,6X20

221B0620

1
Out of stock

5

RING-POSITION

14013-004

1

$8.09

In stock

6

STUD,10X153

92004-062

1
Out of stock

7

STUD,10X133

92004-1004

1
Out of stock

8

STUD,10X116

92004-1007

1
Out of stock

9

PIN,DOWEL,6X16

92042-016

1
Out of stock

10

RING-O,8.8X1.9

92055-099

1
Out of stock

11

O RING,10MM

670D2010

1
Out of stock

12

NOZZLE

92062-016

1
Out of stock

13

PLUG,RUBBER BALL,6.7

92066-057

1
Out of stock

14

RING-O,20X2

92055-1146

1
Out of stock

15

NOZZLE,BLACK

92062-011

1
Out of stock

16

NOZZLE

92062-014

1
Out of stock

17

NOZZLE,SILVER

92062-015

1
Out of stock

18

PLUG,18X9

92066-066

1
Out of stock

19

O RING,46MM

670B3046

1
Out of stock

20

PLUG,SECONDARY SHAFT,52X19

92066-1019

1
Out of stock

21

SWITCH ASY,OIL PRSSUR

16144-006

1
Out of stock
