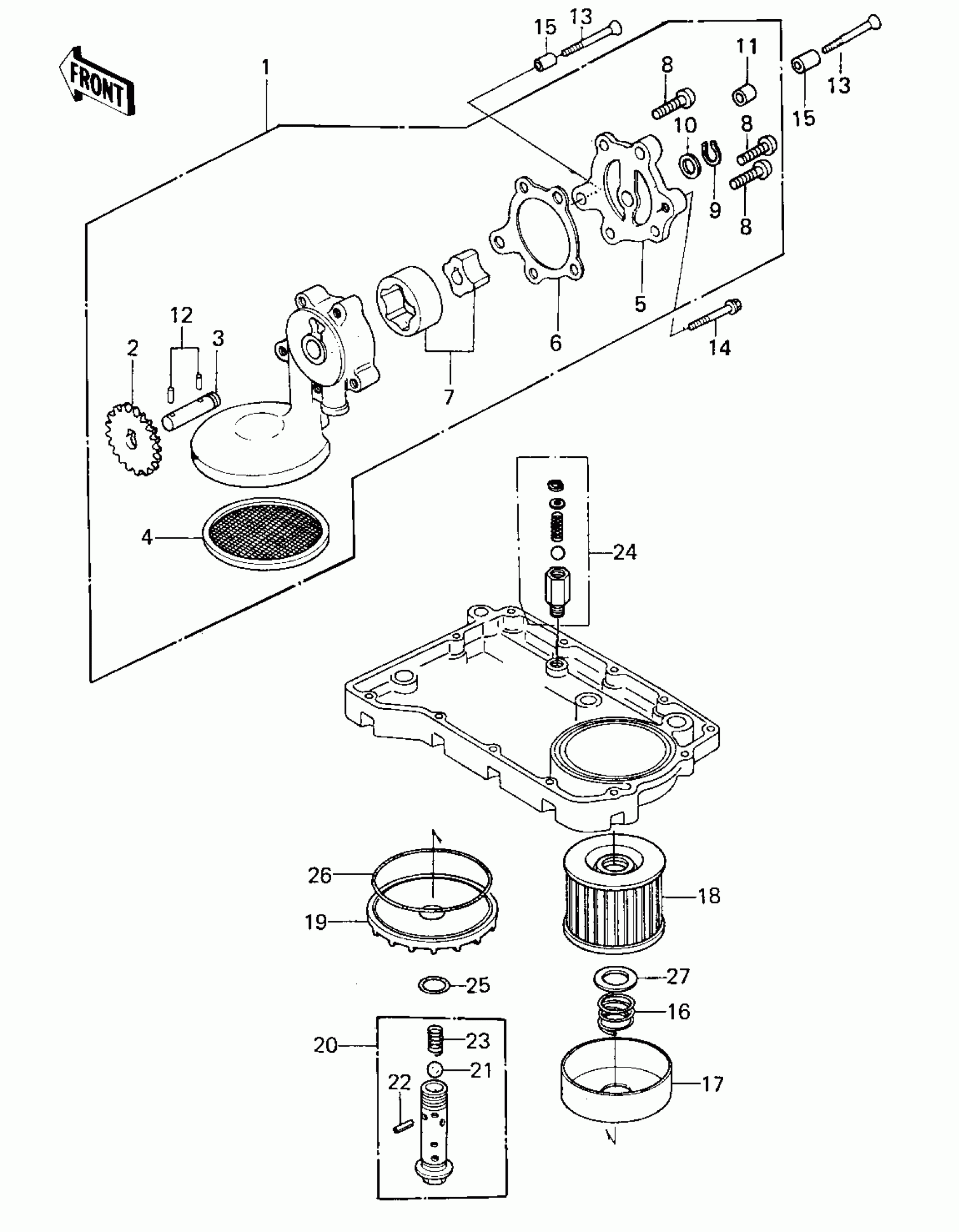

Kawasaki KZ750-E1 OIL PUMP/OIL FILTER ('80 KZY 50-E1) Diagram

#

Description
Price

1

PUMP-ASSY-OIL

16082-064

Unavailable

2

GEAR,OIL PUMP,57T

16085-025

Unavailable

3

SHAFT,OIL PUMP

16086-004

Unavailable

4

FILTER,OIL PUMP

16111-004

$45.22

5

COVER-PUMP

16142-005

$39.24

6

GASKET,OIL PUMP COVER

16145-004

$2.66

7

ROTOR-PUMP

16154-003

$89.99

8

SCREW PAN HEAD 6X22

220B0622

Unavailable

9

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

10

WASHER,11.2X15X1

92022-311

$3.53

11

PIN,DOWEL,8X10

92043-1302

$0.84

12

PIN,DOWEL,4X12.8

92042-041

$5.71

13

SCREW-CSK-CROS,6X50

221B0650

Unavailable

14

BOLT,FLANGED,6X45

92001-165

$3.98

15

PIN,DOWEL,8X28

92042-050

$3.85

16

SPRING,OIL FILTER

92081-1018

$3.54

17

PLATE,OIL FILTER

13169-1110

$7.49

18

ELEMENT-OIL FILTER

16099-003

$9.28

19

COVER,OIL FILTER

16101-004

$39.50

20

VALVE,OIL FILTER

16126-1108

$37.32

21

BALL-STEEL,3/8"

600A1200

$1.14

22

PIN,SPRING,2X20

92043-111

$5.46

23

SPRING

92081-109

$10.85

24

VALVE-ASSY-RELIEF

16130-1001

$41.95

25

O RING,16MM

670B2016

$1.04

26

O RING,90MM

671B2590

$7.54

27

WASHER,20.5X30X1

92022-1012

$3.32
