1980 Kawasaki KZ750-E1 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

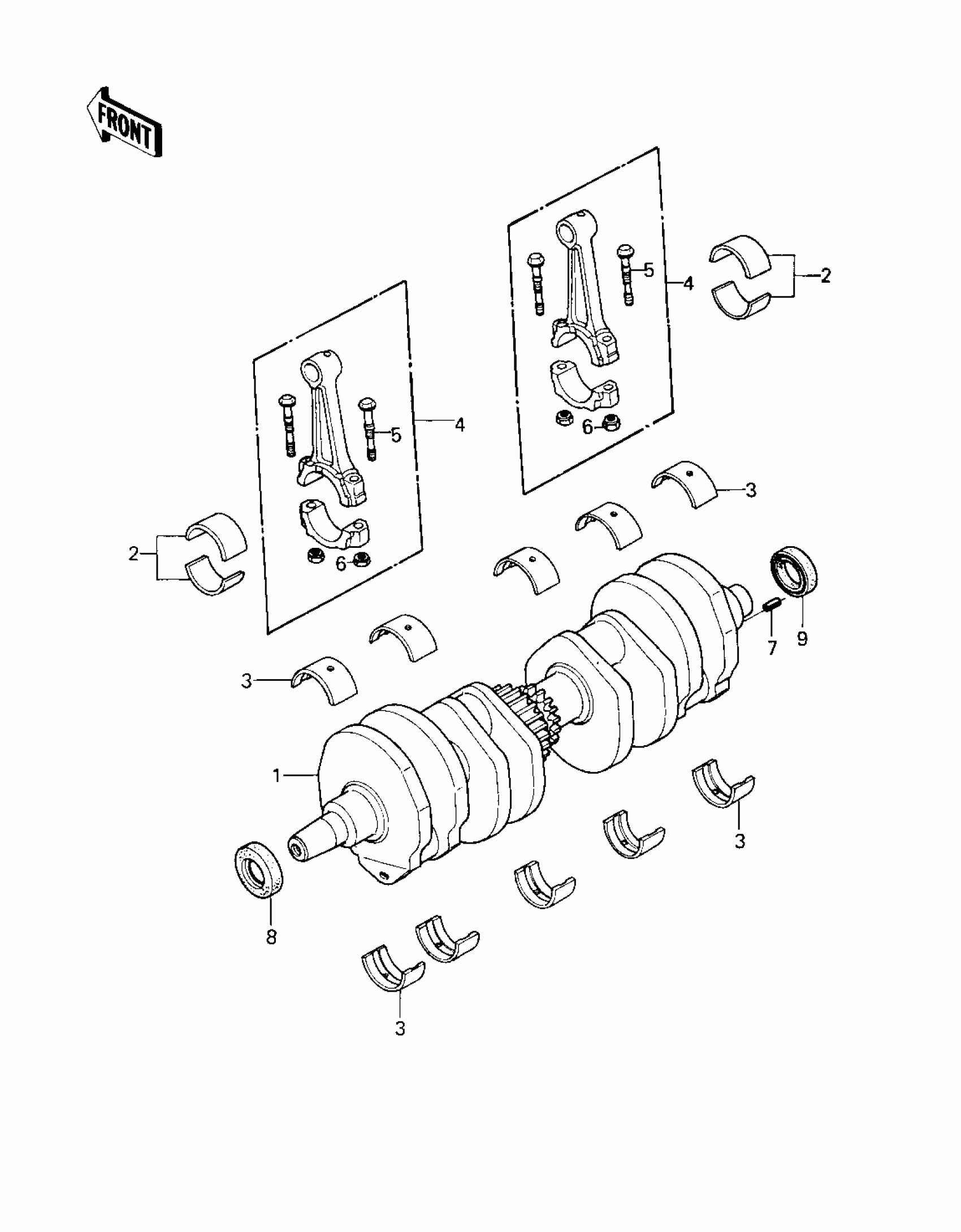

1980 Kawasaki KZ750-E1 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

13031-1028

1
Out of stock

2

METAL,CONNECT ROD BRG

13034-050

—
Out of stock

2

METAL,CONNECT ROD BRG

13034-051

—
Out of stock

2

—

$32.75

In stock

3

1

$13.29

In stock

3

1

$13.29

In stock

3

1

$13.29

In stock

4

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

4

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

4

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

5

1

$9.27

In stock

6

NUT,FLANGED,8MM

92015-1311

1
Out of stock

7

PIN-SPRING,4X8

555A0408

1

$3.12

In stock

8

OIL SEAL,HSCY22397

92050-080

1
Out of stock

9

SEAL-OIL,HSCY25397

92050-081

1
Out of stock
