1980 Kawasaki KZ750-E1 Crankcase Bolt & Stud Pattern ('80 KZY 5 Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern ('80 KZY 5 diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

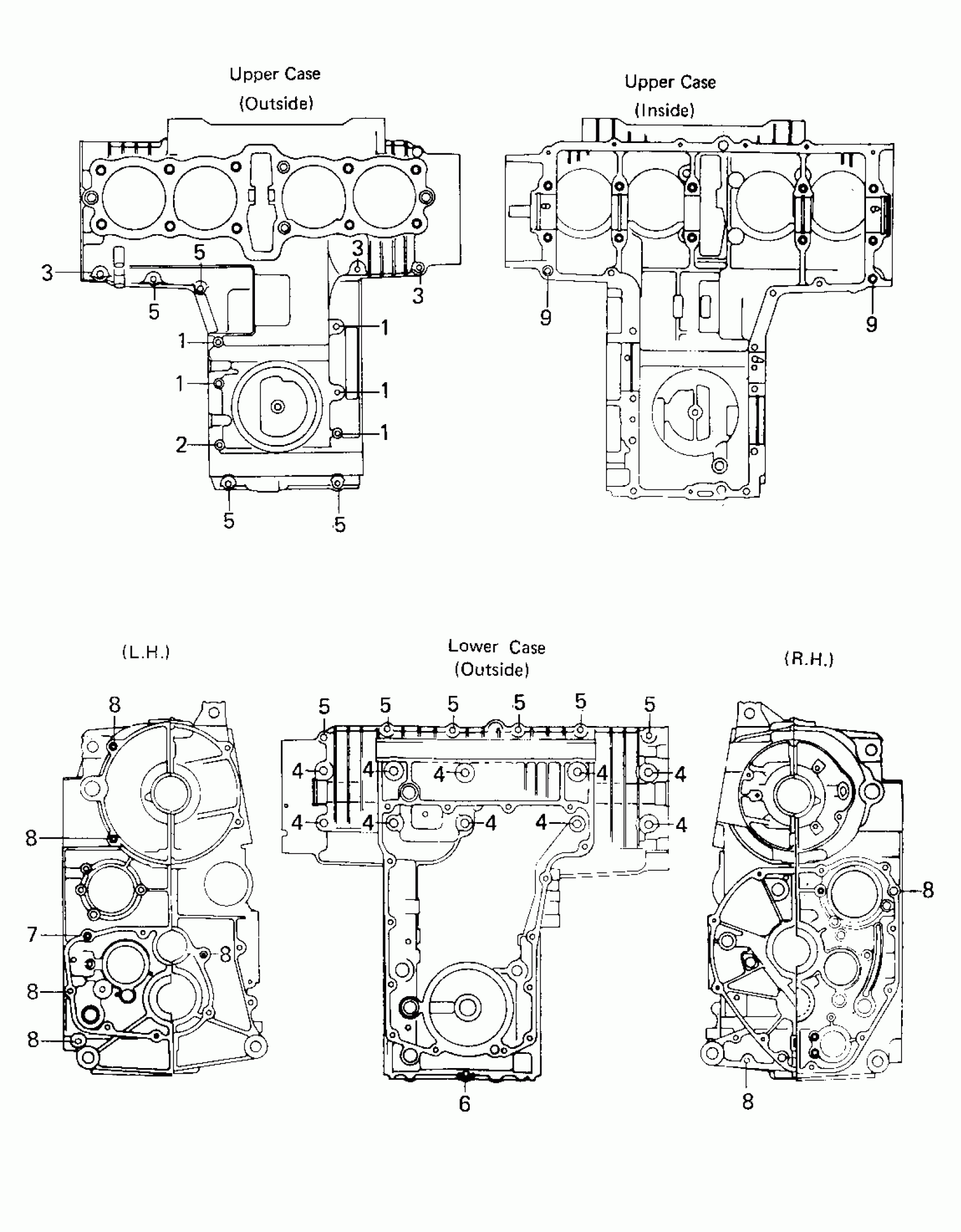

1980 Kawasaki KZ750-E1 Crankcase Bolt & Stud Pattern ('80 KZY 5 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,HEX HEAD,6X99

92003-111

1
Out of stock

2

BOLT,HEX HEAD,6X116

92003-113

1
Out of stock

3

BOLT-FLANGED,6X50

130G0650

1
Out of stock

3

BOLT-FLANGED,6X50

130G0650

1
Out of stock

4

BOLT-FLANGED,8X95

130P0895

1
Out of stock

5

BOLT,HEX HEAD,6X41

92003-109

1
Out of stock

5

BOLT,HEX HEAD,6X41

92003-109

1
Out of stock

6

BOLT,6X105

92003-194

1
Out of stock

7

PIN-DOWEL,6X14

551A0614

1
Out of stock

8

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

9

PIN,DOWEL,10X14

92043-1037

1
Out of stock
